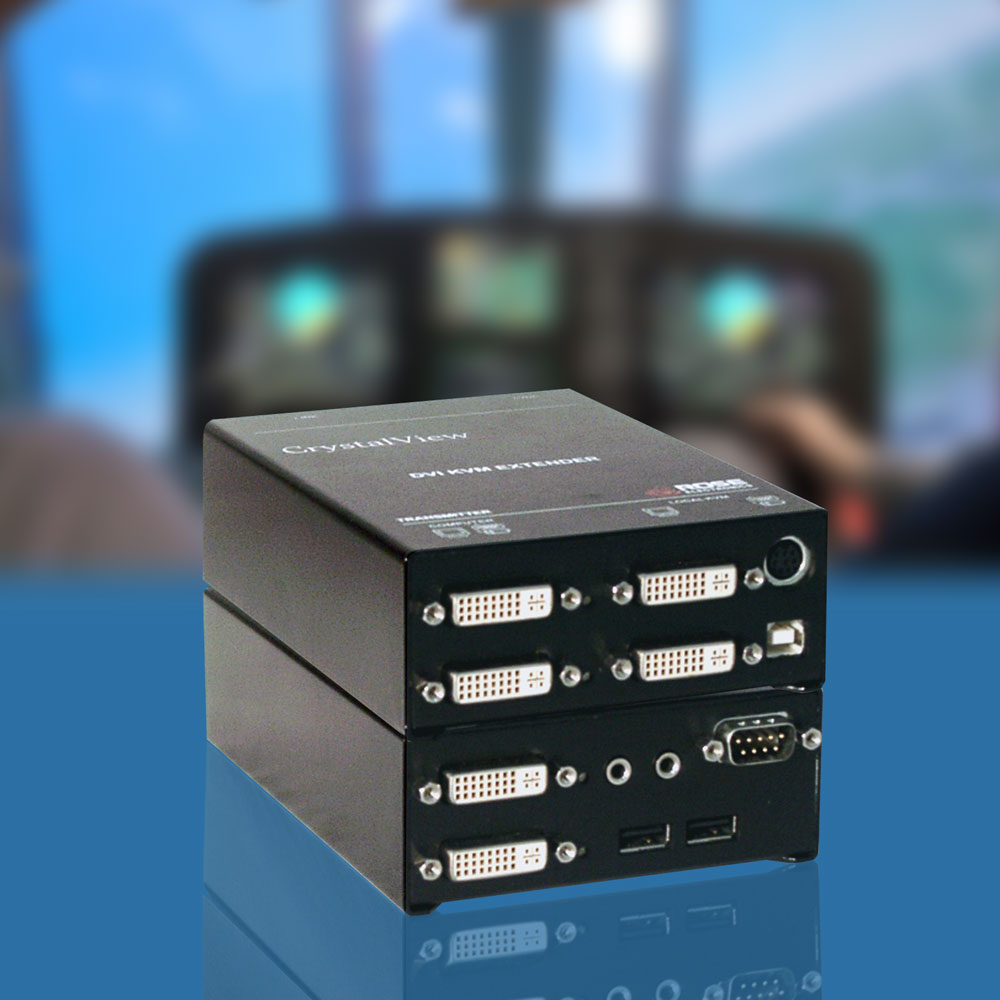

CrystalView DVI Fiber

Fiber Extender - DVI/USB/PS2

  • Extends DVI video keyboard/mouse up to 1,300' (400m) over multi-mode cable and 33,000' (10km) over single-mode cable
  • Compressed video resolution up to 1920 x 1200
  • PS/2 or USB keyboard/mouse
  • Local port for dual access to computer at either side of extension
  • Optional serial, stereo speakers, and microphone

Typical Application

CrystalView DVI Fiber application

Overview

CrystalView DVI Fiber extends KVM stations with DVI resolution video of 1920 x 1200 up to 6 miles away over 9µ single-mode fiber, but will also support multi-mode fiber for shorter distance applications. A flexible professional solution for long distance transmission of KVM signals, CrystalView DVI fiber can support either USB or PS/2 connections, has an optional stereo audio upgrade, and is compatible across all operating systems.

The plug-and-play design ensures easy installation and operation with no adjustments required, and LED indicators are provided to monitor the system status and identify any possible errors. All units are equipped with a local access port for viewing and controlling the system near the transmitter. Single-head and dual-head video models are available, allowing for the connection of one or two monitors at the remote KVM station.

Specifications

Dimensions (W x D x H) 4" x 5.6" x 1.65" (103 x 143 x 42 mm)
Weight 1.3 lbs (0.6 kgs)
Power 90-240 VAC 50-60Hz
External adapter, +5V DC, 2A
5W
Resolution DVI video: 1920 x 1200
Distance CATx: 460' (140m)
Multi-mode fiber: (62.5µ): 650' (200m)
Multi-mode fiber: (50µ): 1,300' (400m)
Multi-mode fiber: (50µ) OM3: 3,300' (1km)
Single-mode fiber: (9µ): 33,000' (10km)
Connectors Transmitter:
DVI video: DVI female
USB keyboard/mouse: USB Type B
PS/2 keyboard/mouse: Two PS/2 mini-din6F
Audio: Two 3.5mm stereo jacks
Serial: DB9F
Link: RJ45 jack, one per video port
Receiver:
DVI video: DVI female
USB keyboard/mouse: Two USB type A jack
PS/2 keyboard/mouse: Two PS/2 mini-din6F
Audio: Two 3.5mm stereo jacks
Serial: DB9M
Link: RJ45 jack, one per video port
Power: Barrel jack
Controls Unit power: Red LED
Data error: Green LED
Link status: Green LED
Video status: Green LED
Environment Operating temperature: 41°F–113°F (5°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 0%–80%, non-condensing

Part numbers

Kits (transmitter, receiver, and power supply)
CRK-2DFMPD1D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, PS/2
CRK-2DFMUD1D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, USB
CRK-2DFMPD2D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, PS/2
CRK-2DFMUD2D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, USB
Single-mode Fiber Units
CRK-2DFSPD1D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, PS/2
CRK-2DFSUD1D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, USB
CRK-2DFSPD2D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, PS/2
CRK-2DFSUD2D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, USB
Fiber DVI KVM Extenders with USB 2.0
CRK-2DFSTD1D CrystalView DVI Fiber, Dual Access Digital Single-mode Fiber KVM Extender, Single-head Video, DVI, USB 2.0
CRK-2DFMTD2D CrystalView DVI Fiber, Dual Access Digital Multi-mode Fiber KVM Extender, Dual-head Video, DVI, USB 2.0
CRK-2DFSTD2D CrystalView DVI Fiber, Dual Access Digital Single-mode Fiber KVM Extender, Dual-head Video, DVI, USB 2.0
