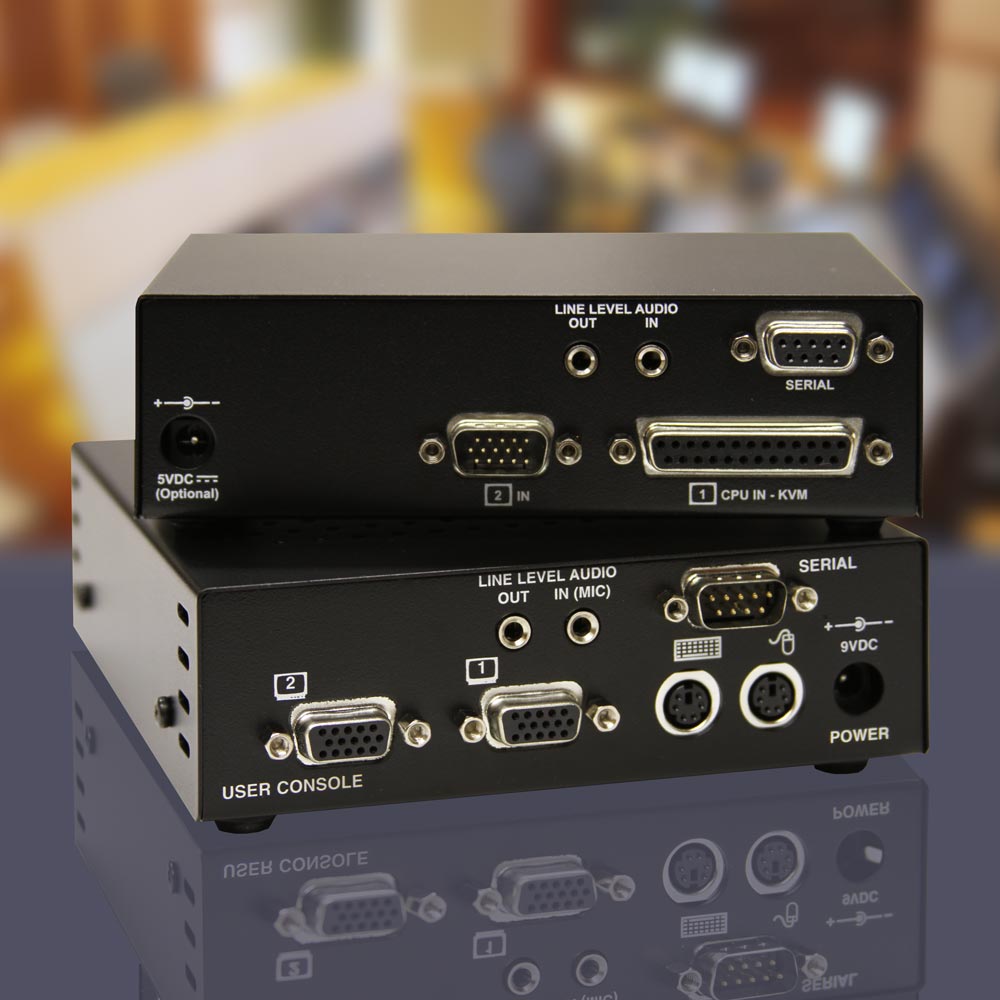

CrystalView Plus

CATx Extender - VGA/PS2/Audio/Serial+Skew - 1000'

  • Video resolution up to 1600 x 1200 at 650' (200m), 1280 x 1024 at 1,000' (300m)
  • Video adjustments of equalization and skew are done via keyboard commands
  • PS/2 keyboard and mouse emulation assures smooth operation
  • Optional stereo speakers, microphone, and serial extension
  • Optional dual-head video feature

Typical Application

CrystalView Plus application

Overview

CrystalView Plus series of KVM Extenders allows you to position your KVM station and enhance video quality up to 1,000 feet away from your computer using a single CATx cable. The extender is available in models compatible with dual or quad video to support multiple video sources. Another option, the dual access model, allows you to access the computer at either the local or remote end.

CrystalView Plus has simplified setup and configuration by eliminating adjustment knobs and jumper switch settings. All tuning for skew, low and high frequency equalization, and RGB delay can be set with keyboard commands. Each video channel can be adjusted individually or universal settings may be applied, enabling the user to achieve the appropriate settings for image clarity.

Stereo audio is an optional addition which produces low-noise, high quality sound. Speakers, headphones, or a microphone can be connected to the remote receiver unit, giving it a wide range of uses such as call centers, trader's desks, kiosks, TV stations, and any G9other application in which multiple video and audio sources require extension from a computer.

The bi-directional serial option allows the connection at the remote location of a touchscreen, digital tablet, serial printer, or other serial device. CrystalView Plus is plug-and-play, with no set-up required for serial devices.

Specifications

Dimensions
(W x D x H)
SL1, DL1: 7.8" x 3.9" x 1.5" (197 x 100 x 38 mm)
R1V, R2V: 5.5" x 5.7" x 1.1" (140 x 145 x 29 mm)
SL1/AUD, DL1/AUD: 7.8" x 3.9" x 1.7" (197 x 100 x 44 mm)
R1V/AUD, R2V/AUD: 5.5" x 5.7" x 1.7" (140 x 145 x 44 mm)
SL2: 5.7" x 4.3" x 1.1" (146 x 110 x 29 mm)
SL2/AUD: 5.7" x 4.3" x 1.7" (146 x 110 x 44 mm)
R4V, R4V/AUD: 10.8" x 5.7" x 1.1" (275 x 145 x 29 mm)
Weight SL1, DL1: 2.4 lbs (1.1 kgs)
R1V, R2V: 2.9 lbs (1.3 kgs)
SL1/AUD, DL1/AUD: 2.9 lbs (1.3 kgs)
R1V/AUD, R2V/AUD: 3.3 lbs (1.5 kgs)
SL2: 2.4 lbs (1.1 kgs)
SL2/AUD: 2.9 lbs (1.3 kgs)
R4V, R4V/AUD: 3.7 lbs (1.7 kgs)
Power Transmitter: Powered by computer PS/2
Receiver 100-240 VAC 50-60Hz, External adapter, +9V DC, 1A/2A
SL1, DL1: 10W
R1V, R2V: 8W
SL1/AUD, DL1/AUD: 8W
R1V/AUD, R2V/AUD: 8W
SL2: 8W
SL2/AUD: 8W
R4V, R4V/AUD: 15W
Distance VGA 1600 x 1200: 650' (200m)
VGA 1280 x 1024: 1,000' (300m)
Connectors Transmitter:
VGA video, PS/2 keyboard/mouse: DB25F
Other VGA video: HD15M
Dual access keyboard/mouse: Two mini-din6 female
Link: RJ45 jack, one per video port
Audio:Two 3.5mm stereo jacks
Serial: DB9F
Receiver:
VGA video: HD15F
Other VGA video: HD15F
PS/2 keyboard/mouse: Two mini-din6 female
Link: RJ45 jack, one per video port
Audio:Two 3.5mm stereo jacks
Serial: DB9M
Power: Barrel jack
Controls Skew: Keyboard command 2.8 ns/step
Link active:Green LED in RJ45 link
Data active:Yellow LED in RJ45 link
Environment Operating temperature: 32°F–104°F (0°C–40°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–90%, non-condensing

Part numbers

Kits (transmitter, receiver, and power supply)
CRK-1P1VKVM Extender Kit - Single-video, VGA, PS/2
(CRV-SL1 + CRV-R1V)
CRK-1P2VKVM Extender Kit - Dual-head, VGA, PS/2
(CRV-SL2 + CRV-R2V)
CRK-2P1VKVM Extender Kit - Single-video, dual access, VGA, PS/2
(CRV-DL1 + CRV-R1V)
Local units (Transmitters)
CRV-SL1Local unit - Single-video, VGA, PS/2
CRV-SL2Local unit - Dual-head, VGA, PS/2
CRV-DL1Local unit - Single-video, dual-access, VGA, PS/2
Remote Units (Receivers)
CRV-R1VRemote unit - Single-video, VGA, PS/2
CRV-R2VRemote unit - Dual-head, VGA, PS/2
CRV-R4VRemote unit - Quad-head, VGA, PS/2
Options
/AUDAudio and serial option, add suffix to part number
Cables
CAB-ZX0606Cnnn UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-D9MFnnn Cable, Serial, DB9M to DB9F
CAB-SPMMnnn Cable, Stereo Audio, Mini-Phone M-M (3.5mm)
CAB-08UTPnnn Cable, UTP CAT5, RJ45MM
Rack mount brackets
RM-BR1 Rack Mount brackets for CRV-SL1, CRV-SL1/AUD, CRV-DL1, CRV-DL1/AUD
RM-BR3Rack Mount shelf for CRV-SL2, CRV-SL2/AUD, CRV-R1V, CRV-R1V/AUD, CRV-R2V, CRV-R2V/AUD, CRV-R4V, CRV-R4V/AUD
