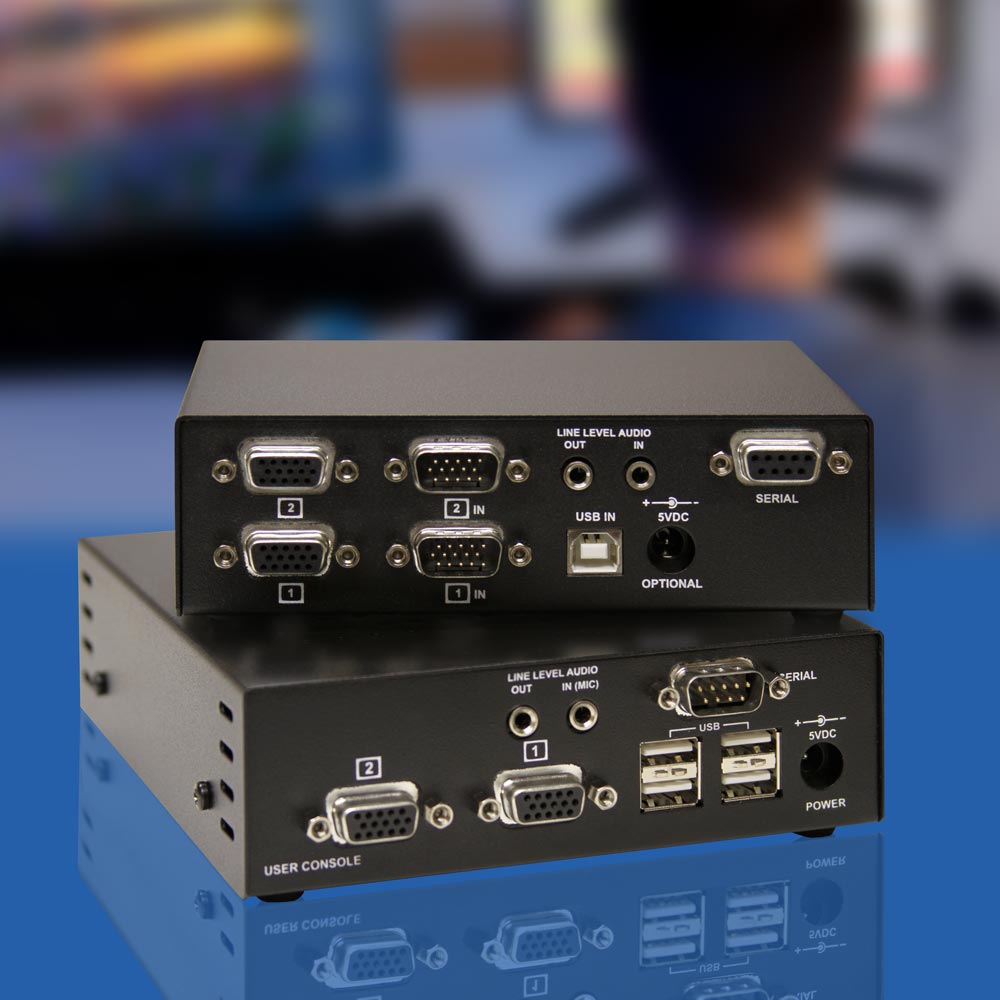

CrystalView Plus USB

CATx Extender - VGA/USB/Audio/Serial+Skew - 1000'

  • Video resolution up to 1600 x 1200 at 650' (200m), 1280 x 1024 at 1,000' (300m)
  • Video adjustments of equalization and skew are done via keyboard commands
  • Supports USB 1.1 peripherals and has integrated 4-port USB hub
  • Optional stereo speakers, microphone, serial extension
  • Optional dual-head video feature

Typical Application

CrystalView Plus USB application

Overview

CrystalView Plus USB KVM extenders enables you to position KVM stations up to 1,000 feet away from computers over CATx cabling.

In order to simplify control over video, CrystalView Plus USB has eliminated adjustment knobs and jumper switch settings. Integrated controls that adjust for skew, low and high frequency equalization, and RGB delay for each channel are easily adjusted using keyboard commands compatible with almost any operating system.

Channel settings (single or dual) can be adjusted individually or universally, allowing for a high degree of flexibility and quality.

The stereo audio option produces low-noise and high quality sound. Speakers, headphones, and a powered or un-powered microphone can be connected to the remote unit, making it suitable for a wide range of business applications. The bi-directional serial option allows you to connect a touchscreen, digital tablet, serial printer or other supported serial device to the remote location. No set-up is needed; just connect the serial device to the serial port and it is ready to use.

Specifications

Dimensions
(W x D x H)
CRV-DLU1: 4.9" x 4.4" x 1.2" (124 x 113 x 30 mm)
CRV-DLU1/AUD, CRV-DLU2V: 4.9" x 4.4" x 1.7" (124 x 113 x 44 mm)
CRV-DLU2V/AUD: 5.7" x 4.4" x 1.7" (145 x 113 x 44 mm)
CRV-RU1V, CRV-RU2V: 5.7" x 5.9" x 1.2" (144 x 151 x 30 mm)
CRV-RU1V/AUD, CRV-RU2V/AUD: 5.7" x 5.9" x 1.7" (144 x 151 x 44 mm)
Weight CRV-DLU1: 1.5 lbs (0.7 kgs)
CRV-DLU1/AUD, CRV-DLU2V: 2.0 lbs (0.9 kgs)
CRV-DLU2V/AUD: 2.4 lbs (1.1 kgs)
CRV-RU1V, CRV-RU2V: 2.6 lbs (1.2 kgs)
CRV-RU1V/AUD, CRV-RU2V/AUD: 2.6 lbs (1.2 kgs)
Power Transmitter: Powered by computer USB
Receiver 100-240 VAC 50-60Hz, External adapter, +5V DC, 4A
CRV-DLU1: 10W
CRV-DLU1/AUD, CRV-DLU2V: 10W
CRV-DLU2V/AUD: 10W
CRV-RU1V, CRV-RU2V: 10W
CRV-RU1V/AUD, CRV-RU2V/AUD: 10W
Distance VGA 1600 x 1200: 650' (200m)
VGA 1280 x 1024: 1,000' (300m)
Connectors Transmitter:
VGA video: HD15M
Other VGA video: HD15F
Keyboard/mouse: USB Type B
Dual access keyboard/mouse: 2 USB type A
Link: RJ45 jack, one per video port
Audio: Two 3.5mm stereo jacks
Serial: DB9F
Receiver:
VGA video: HD15F
Other VGA video: HD15F
USB HID: Four USB Type A
Link: RJ45 jack, one per video port
Audio: Two 3.5mm stereo jacks
Serial: DB9M
Power: Barrel jack
Controls Skew: Keyboard command 2.8 ns/step
Link active:Green LED in RJ45 link
Data active:Yellow LED in RJ45 link
Environment Operating temperature: 32°F–104°F (0°C–40°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–90%, non-condensing

Part numbers

Kits (transmitter, receiver, and power supply)
CRK-2U1V CrystalView Plus, USB KVM Extender Kit, Skew Compensation, Single-head Video, Dual Access
CRK-2U2V CrystalView Plus, USB KVM Extender Kit, Skew Compensation, Dual-head Video, Dual Access
/AUD With audio and serial
Cables
CAB-CXVMMnnn UltraCable Hi-Res, PC to Switch, VGA to VGA
CAB-D9MFnnn Cable, Serial, DB9M to DB9F
CAB-SPMMnnn Cable, Stereo Audio, Mini-Phone M-M (3.5mm)
CAB-08UTPnnn Cable, UTP CAT5, RJ45MM
