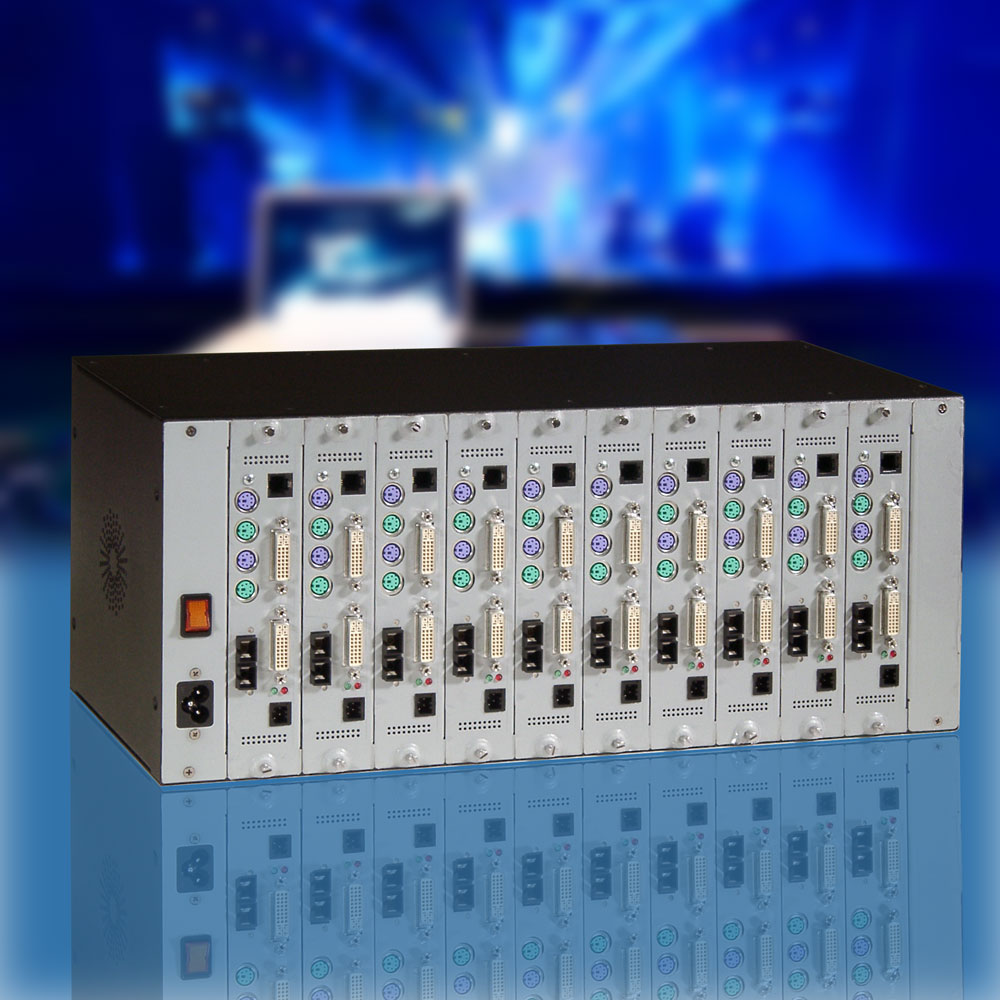

CrystalView Pro Fiber Rack

Fiber Extender Chassis - DVI/VGA/USB/PS2

  • 10-card chassis can be populated with up 10 transmitters or receivers
  • Supports DVI and VGA video at resolutions up to 1600 x 1200 (1920 x 1200 option)
  • Extend up to 1,640' (500m) over multi-mode OM3 fiber cable
  • Extend up to 33,000' (10km) over single-mode fiber cable
  • Separate models for PS/2 or USB keyboard/mouse
  • Optional audio and serial extension

Typical Application

CrystalView Pro Fiber Rack application

Overview

The CrystalView Pro Fiber Rack can contain up to 10 CrystalView Pro Fiber transmitters or receivers. This modular framework allows for a multitude of choices. Each CrystalView Pro Fiber transmitter or receiver can come modified with different form factors and additional cards, providing options such as VGA or DVI, PS/2 or USB, audio and serial, and multi-mode or single-mode fiber.

The units are compatible with any operating system, and can provide extension from up to 10 CPUs to 10 KVM user stations. The high degree of versatility makes this unit adaptable to almost any system and application.

Specifications

Dimensions (W x D x H) 16.7" x 7" x 7" (424 x 178 x 178 mm) (4U)
Weight 30 lbs (13.6 kgs)
Power 90-240 VAC 50-60Hz
100W
Resolution DVI video: 1600 x 1200, 1920 x 1200 with 2.5G option
VGA video: 1600 x 1200, , 1920 x 1200 with 2.5G option
Distance CATx: 460' (140m)
Multi-mode fiber: (62.5µ): 650' (200m)
Multi-mode fiber: (50µ): 1,300' (400m)
Multi-mode fiber: (50µ) OM3: 3,300' (1km)
Single-mode fiber: (9µ): 33,000' (10km)
2.5G option:
Multi-mode fiber: (50µ) OM3:1640' (500 m)
Single-mode fiber: (9µ): 33,000' (10km)
Connectors Transmitter:
DVI/VGA video: DVI-I female
Local DVI/VGA video: DVI-I female
USB keyboard/mouse: USB Type B
PS/2 keyboard/mouse: Two PS/2 mini-din6F
Local PS/2 keyboard/mouse: Two PS/2 mini-din6F
Audio: Two 3.5mm stereo jacks
Serial: DB9F
Link: RJ45 jack, one per video port
Power: 4-pin square
Program: RJ11
Receiver:
DVI/VGA video: DVI-I female
USB keyboard/mouse: Two USB type A jack
PS/2 keyboard/mouse: Two PS/2 mini-din6F
Audio: Two 3.5mm stereo jacks
Serial: DB9M
Link: RJ45 jack, one per video port
Power: 4-pin square
Program: RJ11
Controls Configuration: OSD for DVI/VGA settings per port
Comm status: Red LED per card
Link status: Green LED per card
Video status: Green LED per card
Error status: Green LED per card
Environment Operating temperature: 50°F–113°F (10°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 0%–80%, non-condensing

Part numbers

Chassis
CRV-CH10/DVI CrystalView Pro Fiber Rack chassis, empty, 10 slot
CRV-CH10/DVI-NP CrystalView Pro Fiber Rack chassis, empty, 10 slot - no power
CRV-CH08/DVI/DP CrystalView Pro Fiber Rack chassis, empty, 8 slot - dual power
CRV-CP Blanking cover plate for empty chassis slots
Populated chassis
CRV-DLDFMPDVI-RKnnL Chassis with 10 transmitters, dual access DVI/VGA-PS/2 cards, multi-mode
CRV-DLDFSPDVI-RKnnL Chassis with 10 transmitters, dual access DVI/VGA-PS/2 cards, single-mode
CRV-SLDFMUDVIB-RKnnL Chassis with 10 transmitters, DVI/VGA-USB cards, multi-mode
CRV-SLDFSUDVIB-RKnnL Chassis with 10 transmitters, DVI/VGA-USB cards, single-mode
CRV-SRDFMPDVI-RK10R Chassis with 10 receivers, DVI/VGA-PS/2 cards, multi-mode
CRV-SRDFSPDVI-RK10R Chassis with 10 receivers, DVI/VGA-PS/2 cards, single-mode
CRV-SRDFMUDVIB-RK10R Chassis with 10 receivers, DVI/VGA-USB cards, multi-mode
CRV-SRDFSUDVIB-RK10R Chassis with 10 receivers, DVI/VGA-USB cards, single-mode
nn=number of cards to populate
Populated chassis options
/DP Dual power option, takes 2 slots of 10-slot chassis
Transmitter Cards for Chassis
CRV-DLDFMPDVI-IRK Transmitter card, DVI/VGA-PS/2, dual access, multi-mode
CRV-DLDFSPDVI-IRK Transmitter card, DVI/VGA-PS/2, dual access, single-mode
CRV-SLDFMUDVIB-IRK Transmitter card, DVI/VGA-USB, multi-mode
CRV-SLDFSUDVIB-IRK Transmitter card, DVI/VGA-USB, single-mode
CRV-DLDFMPDVI/SF/AU-IRK Transmitter card, video/audio, dual access, single fiber, multi-mode
CRV-SLDFMPDVI/SF/AU-IRK Transmitter card, video/audio, single fiber, multi-mode
Receiver Cards for Chassis
CRV-SRDFMPDVI-IRK Receiver card, DVI/VGA-PS/2, multi-mode
CRV-SRDFSPDVI-IRK Receiver card, DVI/VGA-PS/2, single-mode
CRV-SRDFMUDVIB-IRK Receiver card, DVI/VGA-USB, multi-mode
CRV-SRDFSUDVIB-IRK Receiver card, DVI/VGA-USB, single-mode
CRV-SRDFMPDVI/SF/AU-IRK Receiver card, video/audio, single fiber, multi-mode
Standalone Transmitter Units
CRV-DLDFMPDVI Transmitter unit, DVI/VGA-PS/2, dual access multi-mode
CRV-DLDFSPDVI Transmitter unit, DVI/VGA-PS/2, dual access single-mode
CRV-SLDFMUDVIB Transmitter unit, DVI/VGA-USB,multi-mode
CRV-SLDFSUDVIB Transmitter unit, DVI/VGA-USB, single-mode
CRV-DLDFMPDVI/SF/AU Transmitter unit, video/audio dual access, single fiber, multi-mode
CRV-SLDFMPDVI/SF/AU Transmitter unit, video/audio, single fiber, multi-mode
Standalone Receiver Units
CRV-SRDFMPDVI Receiver unit, DVI/VGA-PS/2, multi-mode
CRV-SRDFSPDVI Receiver unit, DVI/VGA-PS/2, single-mode
CRV-SRDFMUDVIB Receiver unit, DVI/VGA-USB, multi-mode
CRV-SRDFSUDVIB Receiver unit, DVI/VGA-USB, single-mode
CRV-SRDFMPDVI/SF/AUD Receiver unit, video/audio, single fiber, multi-mode
Options
-ERK Externally powered card option for chassis, with power supply
/2.5 2.5 Gbit Module, LC connectors
/AUD Audio and serial option per card
Rack mount brackets
RM-UM16/xx Rack mount kit 4U chassis, (xx = 19", 23",24", or 42")
Cables
CAB-CXDVII66MMnnn UltraCable Hi-Res, PC to switch, DVI-PS/2 to DVI-PS/2 (M-M)
CAB-CXV66MMnnn UltraCable Hi-Res, PC to switch, VGA-PS/2 to VGA-PS/2 (M-M)
CAB-CXVMMnnn UltraCable Hi-Res, PC to switch, VGA to VGA (M-M)
CAB-CXDVIIMMnnn UltraCable Hi-Res, PC to switch, DVI to DVI (M-M)
CAB-D9MFnnn Cable, serial, DB9M to DB9F
CAB-SPMMnnn Cable, stereo audio, mini-Phone M-M (3.5mm)
CAB-09SMDFSCnnn Fiber cable, single-mode duplex fiber, 09/125µ, SC connector
CAB-50MMDFSCnnn Fiber cable, multi-mode duplex fiber 50/125µ, SC connector
CAB-09SMDFLCnnn Fiber cable, single-mode duplex fiber, 09/125µ, LC connector
CAB-50MMDFLCnnn Fiber cable, multi-mode duplex fiber 50/125µ, LC connector
nnn is cable length in feet
