CrystalView USB2
Multi-head CATx Extender - VGA/Audio/USB 2.0 - 330'
- Multi-head VGA, USB, keyboard/mouse, and USB 2.0
- Resolution up to 1920 x 1200 at 330' (100m)
- Automatic equalization provides clear video over any type of CATx cable
- Optional automated video skew adjustments adjusts for cable skew properties
- Keyboard and mouse emulation assures smooth operation

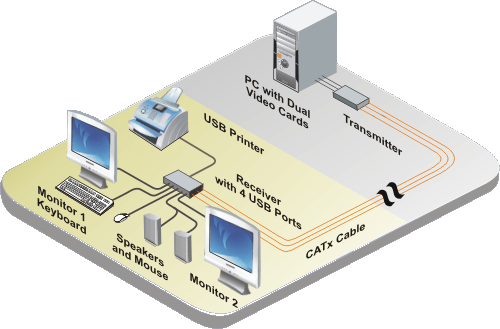

Typical Application
Overview
CrystalView USB2 audio & video extender is an optimal product for extending single, dual, or quad video and USB devices up to 330 feet from a computer. You can view single, dual, or quad video at resolutions of up to 1920 x 1200, listen to audio, and fully operate and control your USB devices using standard CATx cable.
CrystalView USB2 is designed to be compatible with USB devices requiring large amounts of power, and supports remote access for most USB peripheral devices at both the high speeds of USB 2.0 and the regular rates of USB 1. Both the single and dual video models have high quality audio connections available to accompany video.
Using the latest extender technology, CrystalView USB2 automatically corrects the video compensation and gain based on the cable length. The auto skew model adjusts the RGB video components without any required outside input to provide a crystal clear display regardless of cable type, patch panels, or cable routing. Great for presentations and remote workstations, video monitor(s) coupled with audio can be placed in remote control areas, classrooms, conference areas, video studios, and more.
Specifications ▼
| Dimensions (W x D x H) | 9" x 5.7" x 1.73" (228 x 144 x 44 mm) (1U) |
| Weight | 3.3 lbs (1.5 kgs) |
| Power | 100-240 VAC 50-60Hz External adapter, +5V DC, 5A at each end Single video: 5W Dual video: 10W Quad video: 20W |
| Distance | VGA 1920 x 1200 : 330' (100m) |
| Connectors | Transmitter: VGA video: HD15M Keyboard/mouse/HID: USB Type B Audio: 3.5mm stereo jack Power: Barrel jack Receiver: VGA video: HD15F USB devices: Four USB Type A Audio: 3.5mm stereo jack Power: Barrel jack VGA video adjust: Four USB type A |
| Controls | Unit power: Green LED Receiver device active: Green LED (four) Video adjustment: Automatic, override with keyboard commands |
| Environment | Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–90%, non-condensing |
Part numbers ▼
| Kits (transmitter, receiver, and power supply) | |
|---|---|
| CRK-1VH4U2TP-330 | Single VGA / USB 2.0 |
| CRK-2VH4U2TP-330 | Dual VGA / USB 2.0 |
| CRK-4VH4U2TP-330 | Quad VGA / USB 2.0 |
| Options | |
| /W | Automatic Skew Adjustment |
| /A1 | Uni-directional audio (per kit) |
| /A2 | Bi-directional audio (per kit) |
