CrystalView DVI Micro

Compact Fiber Extender - Single-link DVI

  • Miniature style directly connects to DVI connector
  • Video resolution up to: 1920 x 1200 at 1000 feet (300m)
  • SC type connector on unit connects to a single multi-mode fiber
  • Auto-detect EDID information

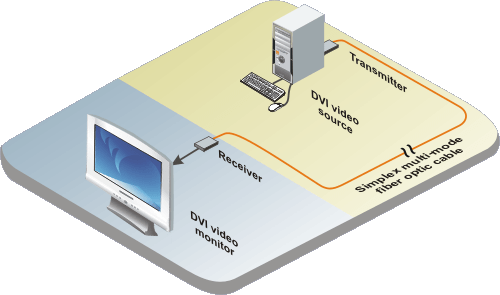

Typical Application

CrystalView DVI Micro application

Overview

CrystalView DVI Micro Fiber is a compact extender combining efficiency and functionality into an affordable solution. Specifically designed for a single SC type multi-mode optical fiber, CrystalView DVI Micro Fiber will extend a DVI video signal to a remote monitor up to 3,300 feet away. Video resolution reaches a maximum of 1920 x 1200, but is contingent on distance with signal degradation as it increases.

The following can be used as a reference guide for resolution capabilities:

  • 1920 x 1200 up to 984 feet
  • 1600 x 1200 up to 1,650 feet
  • 1280 x 1024 up to 3,300 feet

This device is plug-and-play with easy installation and auto-detect EDID information.

Specifications

Dimensions (W x D x H) 1.57" x 2.61" x 0.59" (40 x 66 x 15 mm)
Weight 0.6 lbs (0.25 kgs)
Power Transmitter: Powered by computer DVI
Receiver: 100-240 VAC 50-60Hz, External adapter, +5V DC, 2A
1W
Distance 1920 x 1200: 1000' (300m)
1600 x 1200: 1650' (500m)
1280 x 1024: 2,300' (700m)
Connectors Transmitter:
Single-link DVI video: DVI male direct plug-in
Fiber: Single multi-mode fiber with SC connector
Receiver:
Single-link DVI video: DVI male direct plug-in
Fiber: Single multi-mode fiber with SC connector
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: -4°F–158°F (-20°C–70°C)
Relative humidity: 20%–80%, non-condensing

Part numbers

Kits (transmitter, receiver, and power supply)
CRK-T1DFMDM DVI video extender, single fiber, multi-mode
CRK-T1DFMDM/HDCP DVI video extender, single fiber, multi-mode, HDCP
