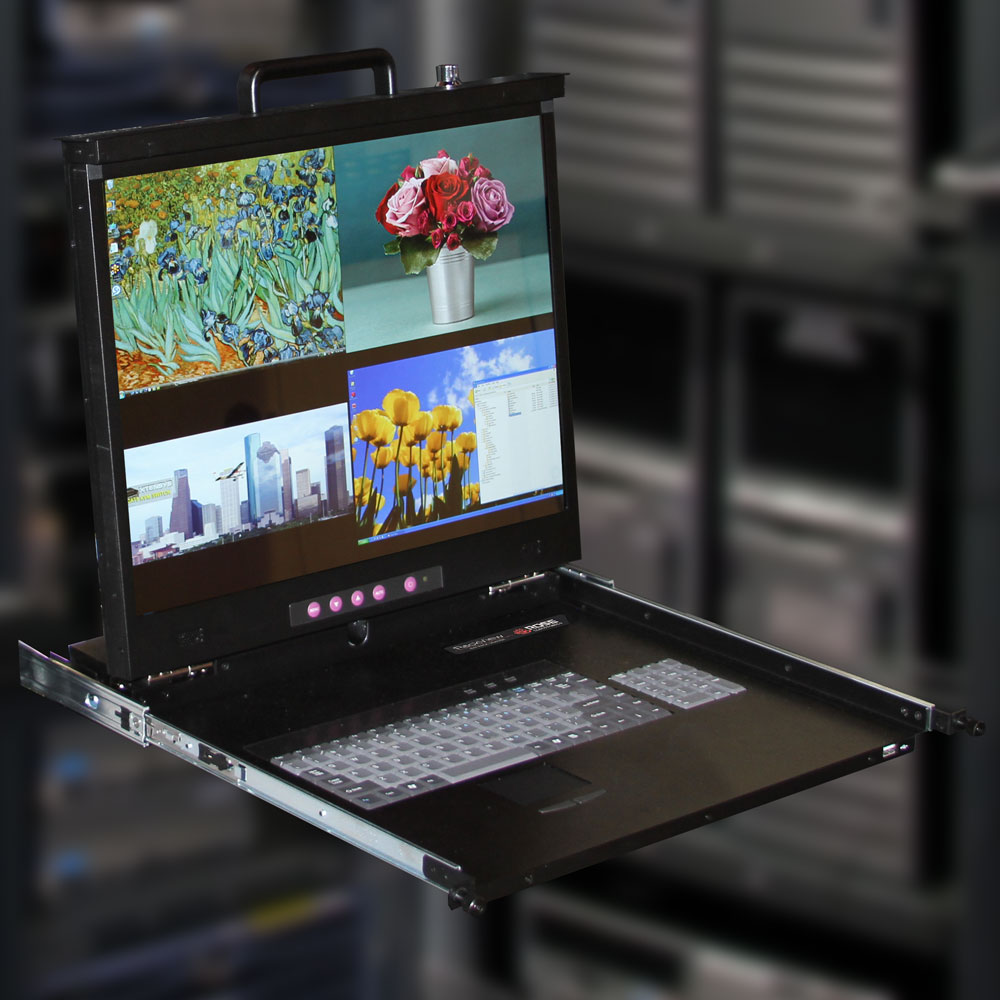

RackView 20"

KVM Rack Drawer - 20" LCD

  • High resolution 20" LCD
  • Resolution up to 1600 x 1200 - VGA or DVI
  • Front mount USB port, audio speakers
  • USB or PS/2 keyboard/touchpad interface
  • On-screen menu for easy adjustments
  • Drawer can be locked to prevent access
  • Closing drawer puts LCD in standby
  • Optional international KB layout, DC power

Typical Application

RackView 20" application

Overview

RackView 20" offers the latest, most efficient way to organize and streamline your data centers and multiple computers. It sets itself apart from the pack by utilizing a large 1600 x 1200 LCD and including audio speakers and a front mounted USB port. This easy-glide KVM station also has a tactile keyboard and a high-resolution touchpad mouse. To protect the security of your system, the RackView 20" can be locked.

The back panel is fitted with a fully array of individual connectors for maximum flexibility: DVI, VGA, two USB ports, two PS2 ports, and audio line in. To complete your installation, the following cables are included:

  • 1 DVI video cable
  • 1 VGA/PS2/PS2 keyboard-video-mouse cable
  • 2 USB cables
  • 1 power cord

The speakers are an essential feature so that you can hear warnings or information from the computer. The front-mount USB port is passed through to one of the rear USB ports. It is so convenient to plug a thumb drive into the port on the front of the RackView instead of hunting around for the computer's USB port. Closing the lid turns the monitor off automatically and puts it in standby mode. With no shortage of features, this quality KVM station is the obvious choice for those seeking both the convenience of a folding rack mountable console and the ability to display high quality video.

Specifications

Dimensions (WxDxH) 17.2" x 20.8" x 1.73" (436 x 527 x 44 mm)
Weight 36.3 lbs (16.5 kg)
Resolution 1600 x 1200
Diagonal size 20.1"
Dot pitch 0.255 mm
Colors 16.7M
Contrast ratio 700:1
Brightness 300 cd/m²
Backlight 6 CCFL
Response time 8 ms
Power Auto-sensing 100 to 240VAC, 50-60Hz
Watts Max. 50W, Standby 12W
Controls 4 buttons for OSD control
1 on/off power button
Connectors 1 x VGA HD15 15-pin
1 x DVI female
2 x PS/2 Mini Din 6-pin
3 x USB type A (1 front, 2 rear)
1 x Audio 3.5mm jack
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: -4°F–140°F (-20°C–60°C)
Relative humidity: 10%–90%, non-condensing

Part numbers

KVM Rack Drawer
RV1-CSKVT20/DVI 20" High Resolution LCD, 1600x1200
Options
International KB
(add /nn to part number)
/UK, /FR, /IT, /DN, /BE, /NO, /DE, /ES, /PO,
/SI, /SD, /DA/ /JP, /TW
/DCnn 12/24/48 DC power option
