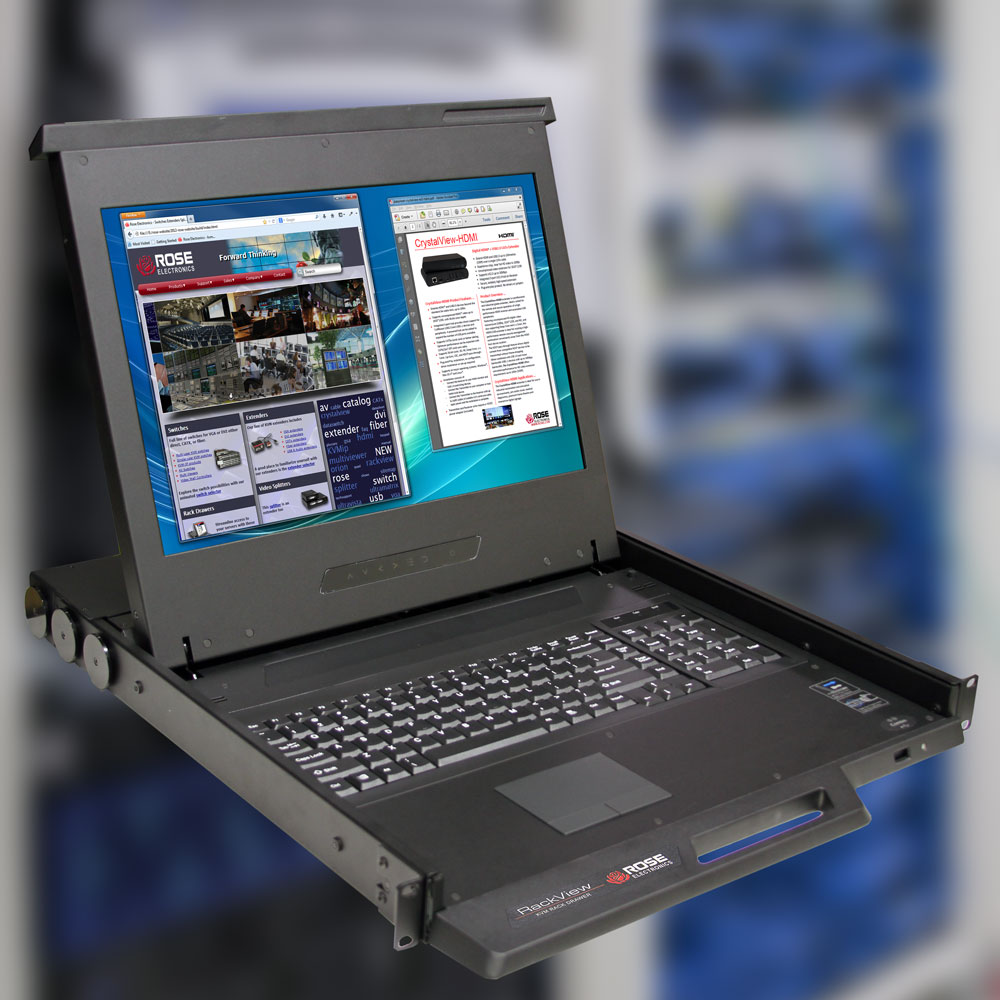

RackView Widescreen 17"

KVM Rack Drawer - 17" Widescreen LCD

  • Widescreen 17" LCD
  • Resolution up to 1920 x 1080 - VGA or DVI
  • USB keyboard/touchpad interface
  • LED backlight saves power
  • Closing drawer puts LCD in standby
  • On-screen menu and picture-in-picture
  • Optional KVM switch, audio, trackball

Typical Application

RackView Widescreen 17" application


Content comes alive with the display on a RackView Widescreen 17" This sliding KVM station contains a high quality widescreen LCD monitor capable of resolutions up to 1920 x 1080, a tactile keyboard, and a touchpad mouse. The widescreen LCD is suited to displaying 1080p video and many applications that become more productive by displaying them in wide format.

Its LED backlighting technology and shutdown on close features help to conserve energy and reduce heating in your power-hungry data center. Its novel PiP feature allows you to view two video sources at once either with one as a small window or side-by-side.

Installing RackView Widescreen 17" is straightforward. Just screw the provided adjustable mounting rails to your standard 19" rack. Slide the unit into the mounted brackets and secure it. One person can easily install the RackView Widescreen 17" in a rack.

RackView Widescreen 17" will satisfy your needs for a high quality video display. It is perfect for industries requiring high resolution details such as film processing, geophysical imaging, rendering farms, military, medical, or broadcast, but it serves equally well in any data center.


Dimensions 17": 17.4" x 18.9" x 1.73" (442 x 480 x 44 mm)
Weight 17": 23.8 lbs (10.8 kg)
Resolution 1920 x 1080
Diagonal size 17.3"
Viewing Area 17": 15.04" x 8.46" (382 x 215 mm)
Dot pitch 17": 0.199 mm
Colors 1.07 Billion (10-bit)
Contrast ratio 600:1
Brightness 300 cd/m²
Backlight LED
MTBF 17": 20,000 hours
Response time 17": 35 ms
Power Auto-sensing 100 to 240VAC, 50-60Hz
Watts Max. 34 Watt, Standby 4 Watt
Controls 6 backlit buttons for OSD control
1 on/off power button
Pip function
Connectors DVI female: DVI video
HD15 female: VGA video, PS/2 and USB keyboard and mouse
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: 23°F–140°F (-5°C–60°C)
Relative humidity: 20%–90%, non-condensing

Part numbers

KVM Rack Drawers
RV1-CAKVT17/DWS/HD 17" Widescreen LCD, 1920x1080
CAB-CMBVM66C005 Combo(HD15) to VGA+PS2
/K1 HD15 -HD15 + (1) USB-A
/K2 HD15 to HD15 + (2) PS2
/DCnn 12/24/48 DC power option
