RackView Widescreen 19"

KVM Rack Drawer - 19" Widescreen LCD

  • Widescreen 19" LCD
  • Resolution up to 1440 x 900 - VGA or DVI
  • Samsung industrial quality LCD panel
  • LED backlight saves power
  • Closing drawer puts LCD in standby
  • USB keyboard/touchpad interface
  • On-screen menu
  • Optional KVM switch, audio, trackball

Typical Application

RackView Widescreen 19" application

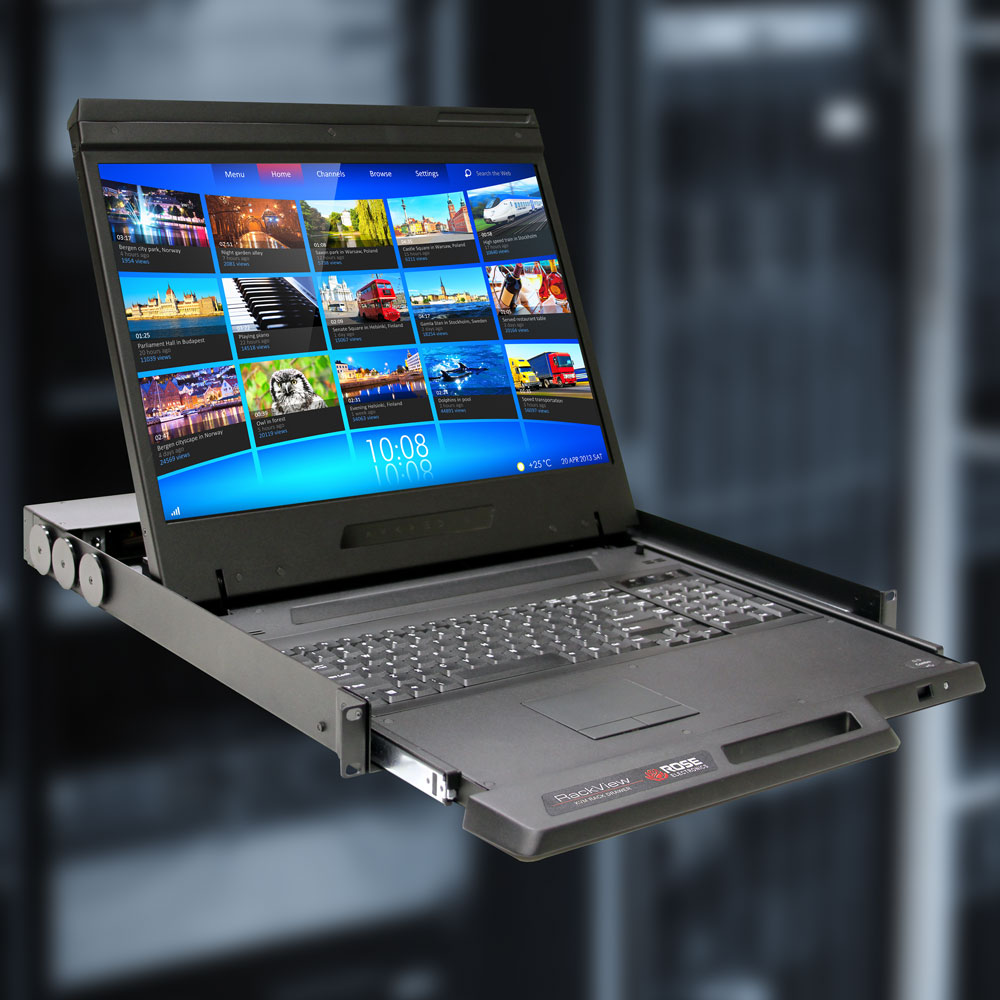

RackView Widescreen 19" is a rack mountable KVM station fitted in a 1U compact pullout drawer. This sliding KVM station contains a high quality widescreen LCD monitor capable of resolutions up to 1440 x 900, a tactile keyboard, and a touchpad or trackball mouse. The widescreen LCD is suited to displaying video and many applications such as spreadsheets where you can see more columns.

The RackView Widescreen 19" features a Samsung LCD panel known for its high quality and reliability. Its LED backlighting technology and shutdown on close features help to conserve energy and reduce heating in your power-hungry data center.

Installing RackView Widescreen 19" is a breeze. Just screw the provided adjustable mounting rails to your standard 19" rack. Slide the unit into the mounted brackets and secure it. One person can easily install the RackView Widescreen 19" in a rack.

The product comes standard with a DVI-USB signal cable and a power cord. This model does not offer a PS/2 interface. Additional options include KVM switches, SDI video, HDMI, audio, and DC power. Get organized and get a RackView Widescreen 19" for your enterprise.


Dimensions 19": 17.4" x 18.1" x 1.73" (442 x 460 x 44 mm)
Weight 19": 25.3 lbs (11.5 kg)
Resolution 1440 x 900
Diagonal size 19"
Viewing Area 19": 16.06" x 10.04" (408 x 255 mm)
Dot pitch 19": 0.2835 mm
Colors 16.7M
Contrast ratio 1000:1
Brightness 250 cd/m²
Backlight LED
MTBF 19": 30,000 hours
Response time 19": 5 ms
Power Auto-sensing 100 to 240VAC, 50-60Hz
Watts Max. 34 Watt, Standby 4 Watt
Controls 6 backlit buttons for OSD control
1 on/off power button
Pip function
Connectors DVI female: DVI video
HD15 female: VGA video, PS/2 and USB keyboard and mouse
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: 23°F–140°F (-5°C–60°C)
Relative humidity: 20%–90%, non-condensing

Part numbers

KVM Rack Drawer
RV1-CAKVT19/DWS 19" Widescreen LCD, 1440x900
CAB-CMBVM66C005 Combo(HD15) to VGA+PS2
/K1 HD15 -HD15 + (1) USB-A
/K2 HD15 to HD15 + (2) PS2
/DCnn 12/24/48 DC power option
