Translator

Keyboard Mouse Converter

  • Keyboard and mouse converter for Sun, Apple, DEC Alpha, and SGI Onyx
  • Direct connect to Rose switches with DB25 connectors
  • Small, compact, and easy to use
  • No power required, uses power from device

Typical Application

Translator application

Overview

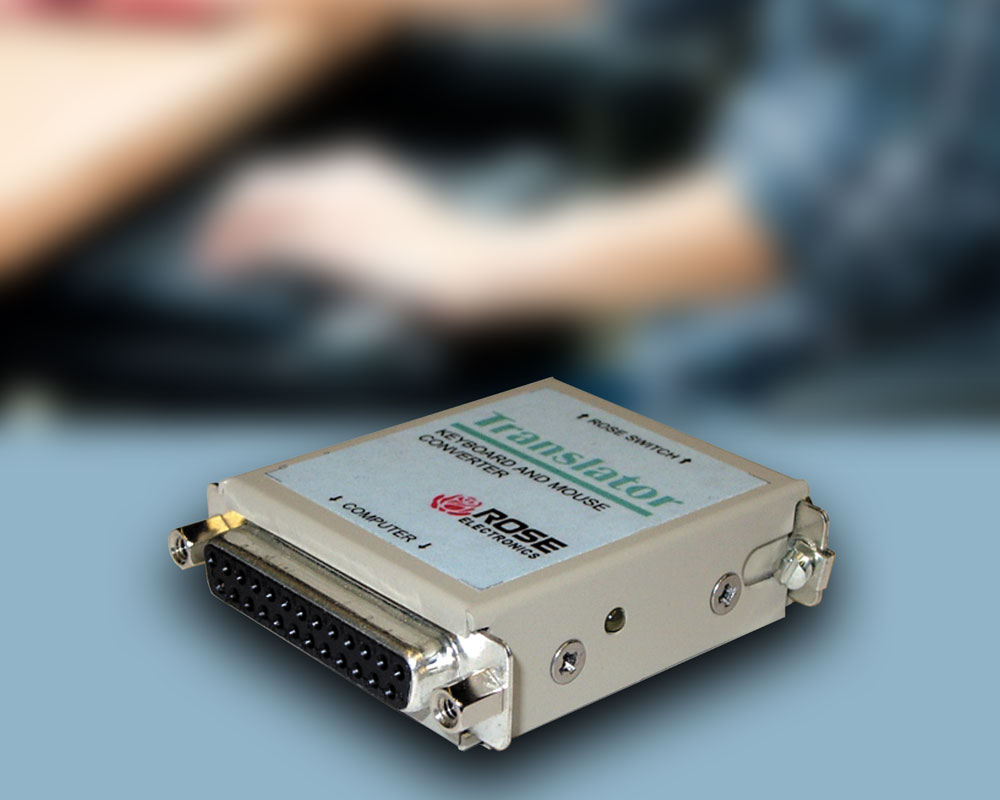

Translator is a simple but versatile compact unit that converts PC keyboard and PS/2 mouse to four different types of computers. Translator was designed to provide a simple means for connecting Apple, Sun, DEC Alpha, and SGI Onyx computers to a Rose or any other PC type KVM switch.

Translator uses power from the KVM switch or computer so that no external power is required. Plugging it in, turns any PC KVM switch into a multi-platform switch.

Sun versions can be programmed to emulate any language. The Apple and Sun versions both support power-on from the keyboard. Translator is used with Rose UltraCable to provide the cleanest solution for connecting computers.

Specifications

Dimensions (W x D x H) 2" x 2.5" x 0.75" (51 x 64 x 19 mm)
Weight 0.15 lbs (0.1 kgs)
Power Powered by KVM switch
1W
Resolution 1920 x 1200
Distance Video: 25 feet (7.6m)
Connectors KVM switch: DB25M
Computer: DB25F to cable
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
CNV-MACPS Translator for Apple keyboard/mouse
CNV-SUNPS Translator, Sun keyboard/mouse
CNV-DECPS Translator, DEC Alpha keyboard/mouse
CNV-SGIPS Translator, SGI Onyx keyboard/mouse
