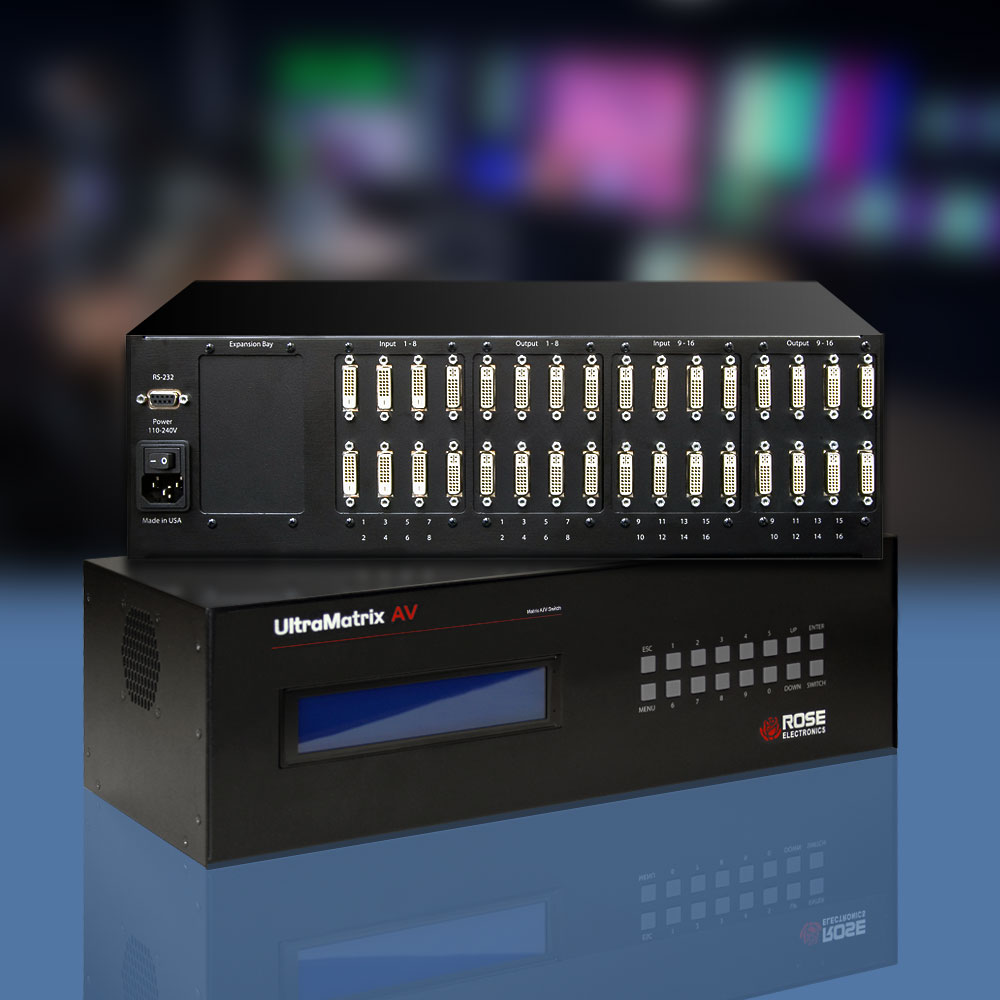

UltraMatrix AV DVI 16

DVI Matrix Switch - 16 x 16

  • Switch single-link DVI video from any input to any output
  • Available as 4 x 4, 8 x 8, or 16 x 16 models
  • Video resolution up to 1920 x 1200
  • Select and view connection source and destination from front panel
  • Switch from front panel or RS232 port using control software provided with unit
  • Optional Ethernet interface for control over network

Typical Application

UltraMatrix AV DVI 16 application


The UltraMatrix AV DVI-D matrix switch is the perfect addition to new or existing installations that need to display 1 to 16 video sources to 1 to 16 remote DVI-D displays. Pick one video source and display it on 1, 2, or all monitors.

Easy front panel selection of the video source to displayed on each remote monitor. Just push a button and select the source, then select the destination port. The front panel display shows which computers are connected to the displays.

Selection can also be performed by using the provided RoseControl software that sends switching command to the unit. With one click on the cross-point, that computers video is instantly switched to the selected DVI-D monitor. These commands are sent using the RoseControl software installed on a computer or laptop and connected to the RS232 port on the unit.


Dimensions (W x D x H) 19" x 7" x 5.25" (482 x 178 x 133 mm)
Weight 10 lbs (4.5 kgs)
Power 90-230 VAC 50-60Hz
Resolution DVI: 1920 x 1200
Distance Video: 25 feet (7.6m)
Connectors Video: DVI
Serial: DB9F
Power: Barrel jack
Controls Select and configuration: 16-button keypad and 4x40 LCD
Environment Operating temperature: 32°F–104°F (0°C–40°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
UMA-04DX04D UltraMatrix AV, 4x4 DVI Matrix Switch
UMA-08DX08D UltraMatrix AV, 8x8 DVI Matrix Switch
UMA-16DX16D UltraMatrix AV, 16x16 DVI Matrix Switch
