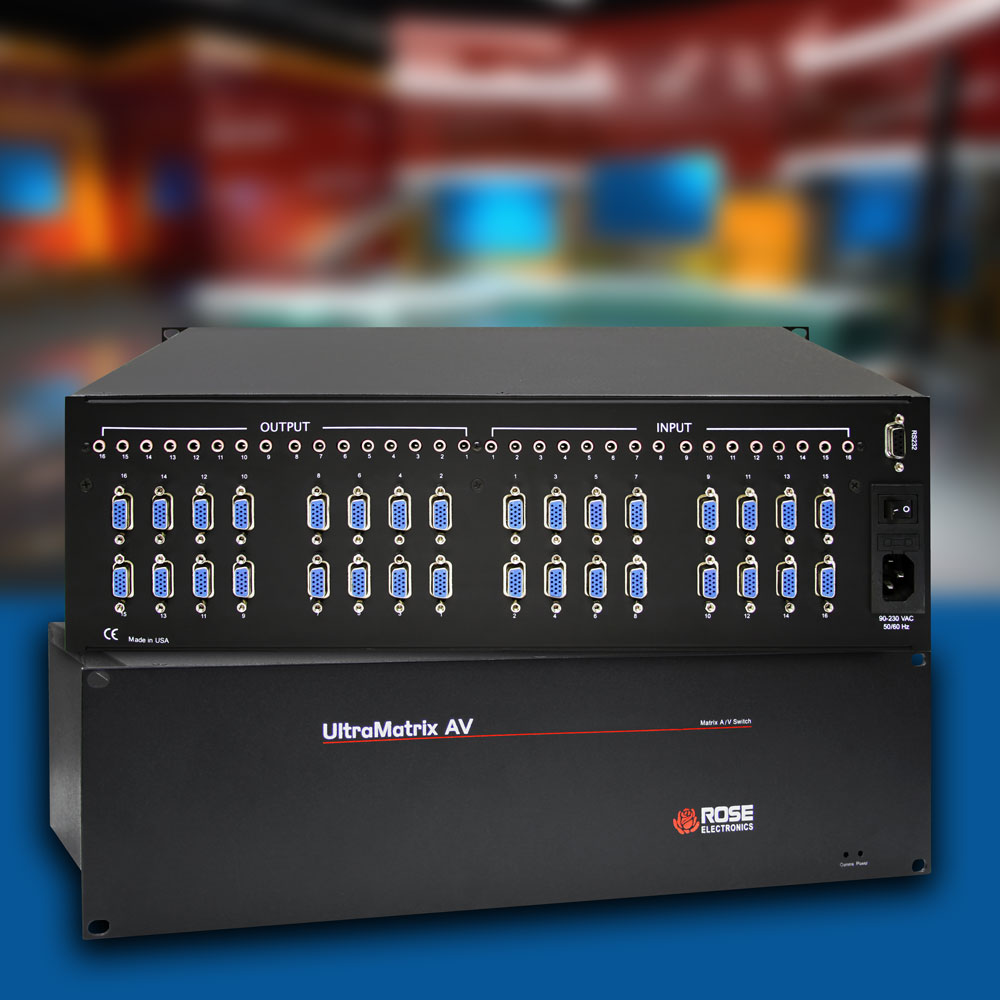

UltraMatrix AV VGA 16
Audio/VGA Matrix Switch - 16 x 16
- Switch video and stereo audio from any input to any output
- Audio and video can be switched in tandem or separately
- Video resolution up to 1920 x 1200
- Supports separate sync, composite sync, or sync-on-green
- Built-in macro player/recorder for controlling video and audio switching
- Optional Ethernet interface for control over network
Typical Application
Overview
Designed especially for control rooms, audio/video presentations, security centers and many other digital media applications.
Easily connect any audio/video source to any audio/video output using the switching matrix software.
Record your video and audio switching scheme and save it in a macro for on demand use.
Display the switching matrix panel and where the source and destination cross, click on that point and the video and audio are instantly switched.
Specifications ▼
| Dimensions (W x D x H) | 19" x 11.25" x 5.24" (482 x 286 x 133 mm) |
| Weight | 20 lbs (9.1 kgs) |
| Power | 90-230 VAC 50-60Hz External adapter, +5V DC, 3A 15W |
| Resolution | VGA: 1920 x 1200 |
| Distance | Video: 25 feet (7.6m) |
| Connectors | Video: VGA HD15 Audio: 3.5 mm stereo jack Serial: DB9F Power: IEC320 receptacle |
| Controls | Unit power: Green LED |
| Environment | Operating temperature: 32°F–104°F (0°C–40°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| UMA-08VX08V | UltraMatrix AV, 8x8 AV Matrix Switch, VGA |
| UMA-08VX08V-A1 | UltraMatrix AV, 8x8 AV Matrix Switch, VGA + 1 directional stereo audio |
| UMA-16VX16V | UltraMatrix AV, 16x16 AV Matrix Switch, VGA |
| UMA-16VX16V-A1 | UltraMatrix AV, 16x16 AV Matrix Switch, VGA + 1 directional stereo audio |
