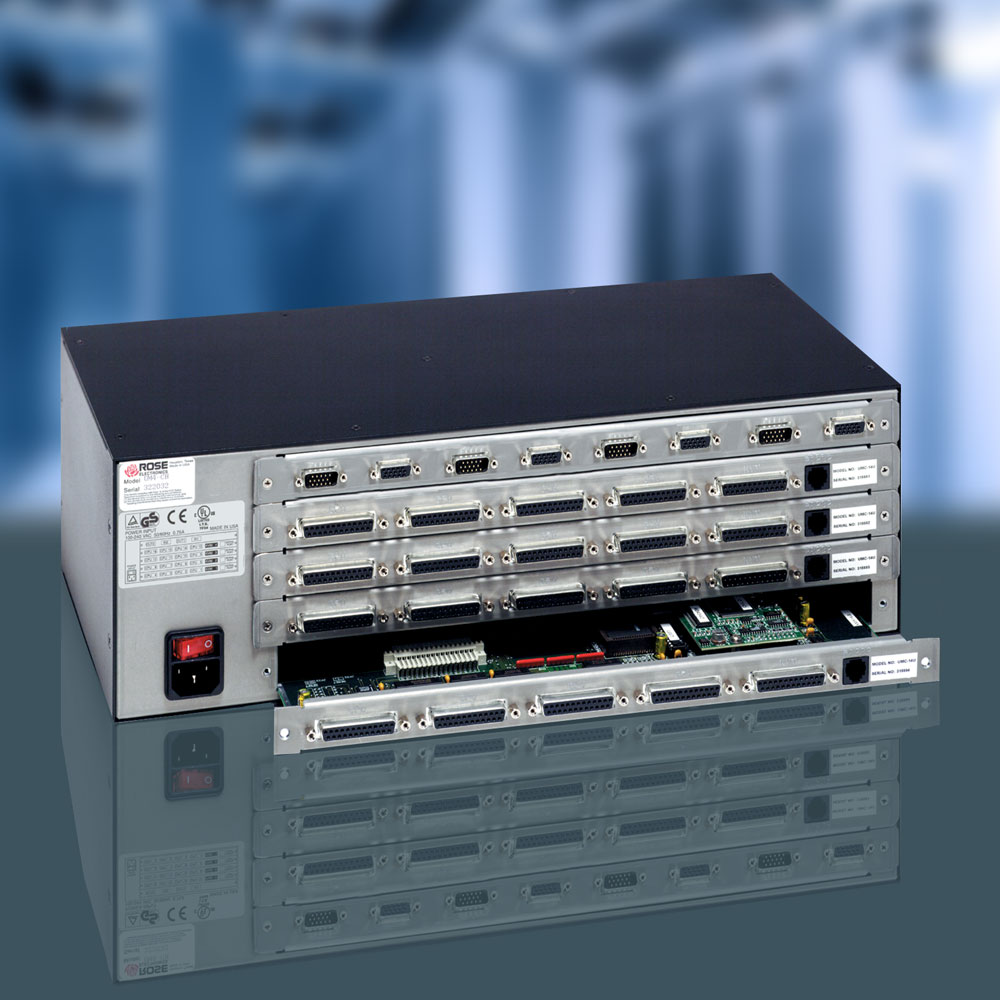

UltraMatrix X-series

4-16 User kvm Switch - VGA

  • Up to 256 users can access and control up to 1,000 computers and network devices
  • Supports PC, Sun, Apple, USB computers, UNIX workstations, and serial devices
  • Modular design and hot-swappable cards make the system versatile and easy to expand and maintain
  • Flash memory, advanced visual interface, security, and many other features

Typical Application

UltraMatrix X-series application


UltraMatrix X-Series is a powerful and versatile kvm switch with the ability to connect up to 256 users to as many as 1,000 computers by cascading multiple units. Units connect together with a bus connection to make a seamless and truly scalable kvm matrix solution. Its modular architecture makes the switch simple to install, expand, and maintain. The unit supports hot-swappable capabilities and permits plug-in cards to be removed or changed at any time without powering off the system, minimizing detrimental system downtime than can potentially hurt productivity.

Available in three models:

  • 4 users
  • 8 users
  • 16 users

All models are compatible with any operating system and support peripheral serial devices. When accessing a serial device the on-screen display becomes a color VT220 terminal. An Advanced Visual Interface is used to configure the unit, name computers, select computers, and display computer connections. Security features are included to prevent unauthorized configuration and access


(W x D x H)
UM4/UM8: 16.7" x 7" x 5.25" (424 x 178 x 133 mm) (3U)
UM16: 16.7" x 7" x 7" (424 x 178 x 178 mm) (4U)
Weight UM4/UM8: 14 lbs (6.4 kgs)
UM16: 17 lbs (7.7 kgs)
Power 90-240 VAC, 50-60Hz
UM4/UM8: 20W
UM16: 30W
Resolution UM4 VGA: 1280 x 1024
UM8/UM16 VGA: 1920 x 1200
Distance 25 feet (7.6m)
Connectors Power IEC 320 standard receptacle
Expansion: UM4=DB15M/F, UM8/16=HD15M/F
RS232 serial: RJ 6 conductor
Controls Select computer by OSD, hot-key, serial port
Unit power:Light in power switch
Environment Operating temperature: 32°F–113°F (0°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

16 user system
UM16-1X16U/E21 kvm to 16 CPUs, w/ 2 Bus Exp Cards
UM16-2X8U/E22 kvms to 8 CPUs, w/ 2 Bus Exp Cards
UM16-4X16U/E24 kvms to 16 CPUs, w/ 2 Bus Exp Cards
UM16-CHUM16: Base Chassis, 4U
8 user system
UM8-1X16U/E1 kvm to 16 CPUs, w/ Bus Exp Card
UM8-2X8U/E2 kvms to 8 CPUs, w/ Bus Exp Card
UM8-4X16U/E4 kvms to 16 CPUs, w/ Bus Exp Card
UM8-CHUM8: Base Chassis, 4U
4 user system
UM4-1X8U1 kvm to 8 CPUs, No Bus Exp Card
UM4-1X16U1 kvm to 16 CPUs, No Bus Exp Card
UM4-1X16U/E1 kvm to 16 CPUs, w/ Bus Exp Card
UM4-4X16U4 kvms to 16 CPUs, No Bus Exp Card
UM4-4X16U/E4 kvms to 16 CPUs, w/ Bus Exp Card
UM4-CHUM4: Base Chassis, 3U
Cards and options
UMC-04U0 kvm & 4 CPU Port Card
UMC-14U1 kvm & 4 CPU Port Card
UMC-EXP4UM4-Series: Bus Exp. Card
UMC-EXP8UM8 & UM16 Series: Bus Exp. Card, use 2 in UM16
UMC-BPTUM4-Series: Back-Plane Terminator Card, use when no Bus Exp Card is installed, Use with: UMB-CP00
UMB-CP00Blank Plate for Card Openings on UM4, UM8 & UM16 Series Chassis, Includes 1 Plate & Screws
/DPDual Power Option for UM4, UM8, & UM16
