UltraMatrix X-series
4-16 User kvm Switch - VGA
- Up to 256 users can access and control up to 1,000 computers and network devices
- Supports PC, Sun, Apple, USB computers, UNIX workstations, and serial devices
- Modular design and hot-swappable cards make the system versatile and easy to expand and maintain
- Flash memory, advanced visual interface, security, and many other features

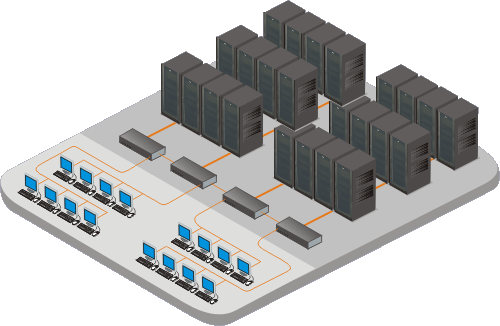

Typical Application
Overview
UltraMatrix X-Series is a powerful and versatile kvm switch with the ability to connect up to 256 users to as many as 1,000 computers by cascading multiple units. Units connect together with a bus connection to make a seamless and truly scalable kvm matrix solution. Its modular architecture makes the switch simple to install, expand, and maintain. The unit supports hot-swappable capabilities and permits plug-in cards to be removed or changed at any time without powering off the system, minimizing detrimental system downtime than can potentially hurt productivity.
Available in three models:
- 4 users
- 8 users
- 16 users
All models are compatible with any operating system and support peripheral serial devices. When accessing a serial device the on-screen display becomes a color VT220 terminal. An Advanced Visual Interface is used to configure the unit, name computers, select computers, and display computer connections. Security features are included to prevent unauthorized configuration and access
Specifications ▼
| Dimensions (W x D x H) | UM4/UM8: 16.7" x 7" x 5.25" (424 x 178 x 133 mm) (3U) UM16: 16.7" x 7" x 7" (424 x 178 x 178 mm) (4U) |
| Weight | UM4/UM8: 14 lbs (6.4 kgs) UM16: 17 lbs (7.7 kgs) |
| Power | 90-240 VAC, 50-60Hz UM4/UM8: 20W UM16: 30W |
| Resolution | UM4 VGA: 1280 x 1024 UM8/UM16 VGA: 1920 x 1200 |
| Distance | 25 feet (7.6m) |
| Connectors | Power IEC 320 standard receptacle CPU/KVM: DB25F Expansion: UM4=DB15M/F, UM8/16=HD15M/F RS232 serial: RJ 6 conductor |
| Controls | Select computer by OSD, hot-key, serial port Unit power:Light in power switch |
| Environment | Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| 16 user system | |
|---|---|
| UM16-1X16U/E2 | 1 kvm to 16 CPUs, w/ 2 Bus Exp Cards |
| UM16-2X8U/E2 | 2 kvms to 8 CPUs, w/ 2 Bus Exp Cards |
| UM16-4X16U/E2 | 4 kvms to 16 CPUs, w/ 2 Bus Exp Cards |
| UM16-CH | UM16: Base Chassis, 4U |
| 8 user system | |
| UM8-1X16U/E | 1 kvm to 16 CPUs, w/ Bus Exp Card |
| UM8-2X8U/E | 2 kvms to 8 CPUs, w/ Bus Exp Card |
| UM8-4X16U/E | 4 kvms to 16 CPUs, w/ Bus Exp Card |
| UM8-CH | UM8: Base Chassis, 4U |
| 4 user system | |
| UM4-1X8U | 1 kvm to 8 CPUs, No Bus Exp Card |
| UM4-1X16U | 1 kvm to 16 CPUs, No Bus Exp Card |
| UM4-1X16U/E | 1 kvm to 16 CPUs, w/ Bus Exp Card |
| UM4-4X16U | 4 kvms to 16 CPUs, No Bus Exp Card |
| UM4-4X16U/E | 4 kvms to 16 CPUs, w/ Bus Exp Card |
| UM4-CH | UM4: Base Chassis, 3U |
| Cards and options | |
| UMC-04U | 0 kvm & 4 CPU Port Card |
| UMC-14U | 1 kvm & 4 CPU Port Card |
| UMC-EXP4 | UM4-Series: Bus Exp. Card |
| UMC-EXP8 | UM8 & UM16 Series: Bus Exp. Card, use 2 in UM16 |
| UMC-BPT | UM4-Series: Back-Plane Terminator Card, use when no Bus Exp Card is installed, Use with: UMB-CP00 |
| UMB-CP00 | Blank Plate for Card Openings on UM4, UM8 & UM16 Series Chassis, Includes 1 Plate & Screws |
| /DP | Dual Power Option for UM4, UM8, & UM16 |
