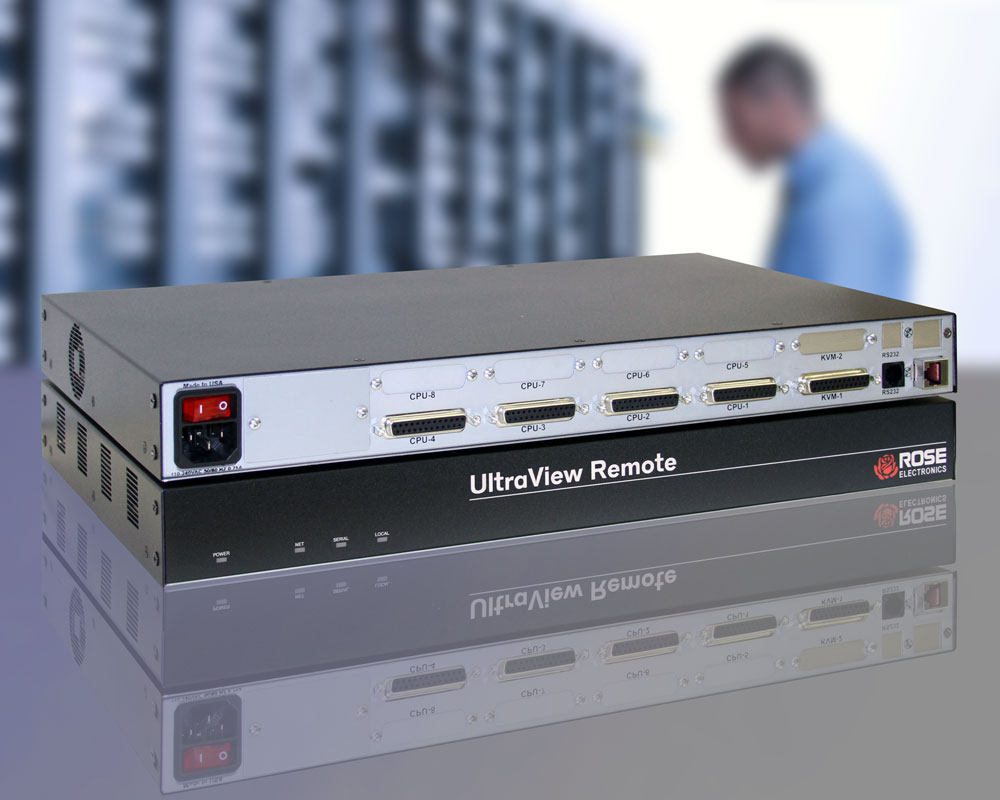

UltraView Remote 2

Single-user kvm-IP Switch

  • Connect locally or over IP
  • Single-user, Multi-platform
  • PC, Apple, Sun, UNIX, Linux, and USB
  • Access and control up to 256 computers
  • Secure encryption operation
  • Browser based access

Typical Application

UltraView Remote 2 application

Overview

UltraView Remote 2 is a powerful and versatile product using the latest technology to allow kvm access and CPU switching over IP from any remote location. UltraView Remote 2 is outfitted with a wide range of features and benefits, including an advanced on-screen menu, integrated security measures, flash memory, and easy expansion.

The simple-to-use on-screen menu provides fast and easy access to any computer locally, over a network, or from anywhere in the world, making management of computer systems simple and easy from any location. Switching and selecting computers is made simple with keyboard commands, an on-screen display, or a serial input. Images and video are transmitted at a crystal clear high quality resolution of 1600 x 1200. An embedded security system with features for configuration and password protection prevent unauthorized user access.

Regardless of the rate of expansion, UltraView Remote 2 can meet system growth requirements while maintaining simplicity and organization. UltraView Remote 2 can connect directly to 8 or 16 computers or servers, with the capacity to expand proportionately to business growth by chaining together additional units. When using the 16-port units, you can expand the UltraView Remote 2 to 256 computers. Expansion units can include either a ServeView Pro or UltraView Pro kvm switch, as the IP component is only required for the master switch. UltraView Remote 2 can't be used as an expansion unit. Installation does not require you to power down servers and computers. UltraView Remote 2 supports PC, Apple Sun, Linux, UNIX, and USB computers.

UltraView Remote 2 comes in the following 3 models:

  • 4 CPU port chassis
  • 8 CPU port chassis
  • 16 CPU port chassis

Specifications

Dimensions
(W x D x H)
4-port: 16.7" x 15.2" x 1.75" (424 x 386 x 44.5 mm) (1U)
8-port: 16.7" x 15.2" x 1.75" (424 x 386 x 44.5 mm) (1U)
16-port: 16.7" x 15.2" x 3.5" (424 x 386 x 89 mm) (2U)
Weight 4-port: 6.9 lbs (3.1 kgs)
8-port: 9.3 lbs (4.2 kgs)
16-port: 14 lbs (6.4 kgs)
Power 90-240 VAC 50-60Hz
4-port: 15W
8-port: 25W
16-port: 50W
Resolution VGA: 1600 x 1200
Distance CPU/KVM: 25 feet (7.6m)
Connectors Power: IEC 320
CPU/KVM: DB25F
RS232: RJ 6-conductor
Network: RJ45
Controls Computer selection: OSD, hot-key, serial port
Unit Power: Green LED
Environment Operating temperature: 32°F–113°F (0°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
UPR-1R04UB/2 UltraView Remote 2, One-user, kvm Switch over IP, PC, 1-remote / 1-local user, 4-CPUs
UPR-1R08UB/2 UltraView Remote 2, One-User kvm Switch over IP, PC, 1-remote / 1-local user, 8-CPUs
UPR-1R16UB/2 UltraView Remote 2, One-User kvm Switch over IP, PC, 1-remote / 1-local user, 16-CPUs
UER-1R04UB/2 UltraView Remote 2, One-User kvm Switch over IP, Multi-platform, 1-remote / 1-local user, 4-CPUs
UER-1R08UB/2 UltraView Remote 2, One-User kvm Switch over IP, Multi-platform, 1-remote / 1-local user, 8-CPUs
UER-1R16UB/2 UltraView Remote 2, One-User kvm Switch over IP, Multi-platform, 1-remote / 1-local user, 16-CPUs
RM-UBxx Rack mount kit for 1U B-Chassis (xx = 19", 23", or 24")
RM-UCxx Rack mount kit for 2U C-Chassis (xx = 19", 23", or 24")
Cable Part Number Description
CAB-ZX0606Cnnn UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-C1Y0509Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-AT Keyboard + Serial Mouse
CAB-CXV0800Cnnn UltraCable, Sun to Switch, DB25M to VGA-Sun Keyboard + Mouse
CAB-SCX0800Cnnn UltraCable Hi-Res, Sun to Switch, DB25M to 13W3-Sun Keyboard + Mouse
CAB-CXUSBCnnn UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse
CAB-R3W30606Cnnn UltraCable Hi-Res, RS6000 to Switch, DB25M to 3W3M-PS/2 Keyboard + Mouse
CAB-R13W30606Cnnn UltraCable Hi-Res, RS6000 to Switch, DB25M to 13W3M-PS/2 Keyboard + Mouse
CAB-S13W30606Cnnn UltraCable Hi-Res, SGI to Switch, DB25M to 13W3M-PS/2 Keyboard + Mouse
CAB-RGBHV0606Cnnn UltraCable Hi-Res, PC to Switch, DB25M to RGBHV-PS/2 Keyboard + Mouse
CAB-ZX0606Mnnn UltraCable, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Mnnn UltraCable Hi-Res, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CXV0800Mnnn UltraCable Hi-Res, Switch to Sun kvm, DB25M to VGA-Sun Keyboard + Mouse
CAB-SBX0800Mnnn UltraCable Hi-Res, Switch to Sun kvm, DB25M to 13W3F-Sun Keyboard + Mouse
CAB-CXVUSBMnnn UltraCable Hi-Res, Switch to kvm, DB25M to VGA-USB Keyboard + Mouse
CAB-R3W30606Mnnn UltraCable Hi-Res, Switch to RS6000 kvm, DB25M to 3W3F-PS/2 Keyboard + Mouse
CAB-R13W30606Mnnn UltraCable Hi-Res, Switch to RS6000 kvm, DB25M to 13W3F-PS/2 Keyboard + Mouse
CAB-S13W30606Mnnn UltraCable Hi-Res, Switch to SGI kvm, DB25M to 13W3F-PS/2 Keyboard + Mouse
CAB-RGBHV0606Mnnn UltraCable Hi-Res, Switch to RGB kvm, DB25M to RGBVH-PS/2 Keyboard + Mouse
CAB-USDTD9FCnnn Cable, Serial DTE Equipment to Switch, DB25M to DB9F
CAB-USDCD9MCnnn Cable, Serial DCE Equipment to Switch, DB25M to DB9M
CAB-USDTD25FCnnn Cable, Serial DTE equipment to Switch, DB25M to DB25F
CAB-USDCD25MCnnn Cable, Serial DCE equipment to Switch, DB25M to DB25M
CAB-USSNMD8MCnnn Cable, Serial Sun to Switch, DB25M to MD8M
CAB-CXUMXnnn Cable, Bus Expansion Cable (Molded version)
CAB-CXUMHnnn Cable, Bus Expansion Cable
CAB-08UTPnnn Cable, Switch to Network Cable
