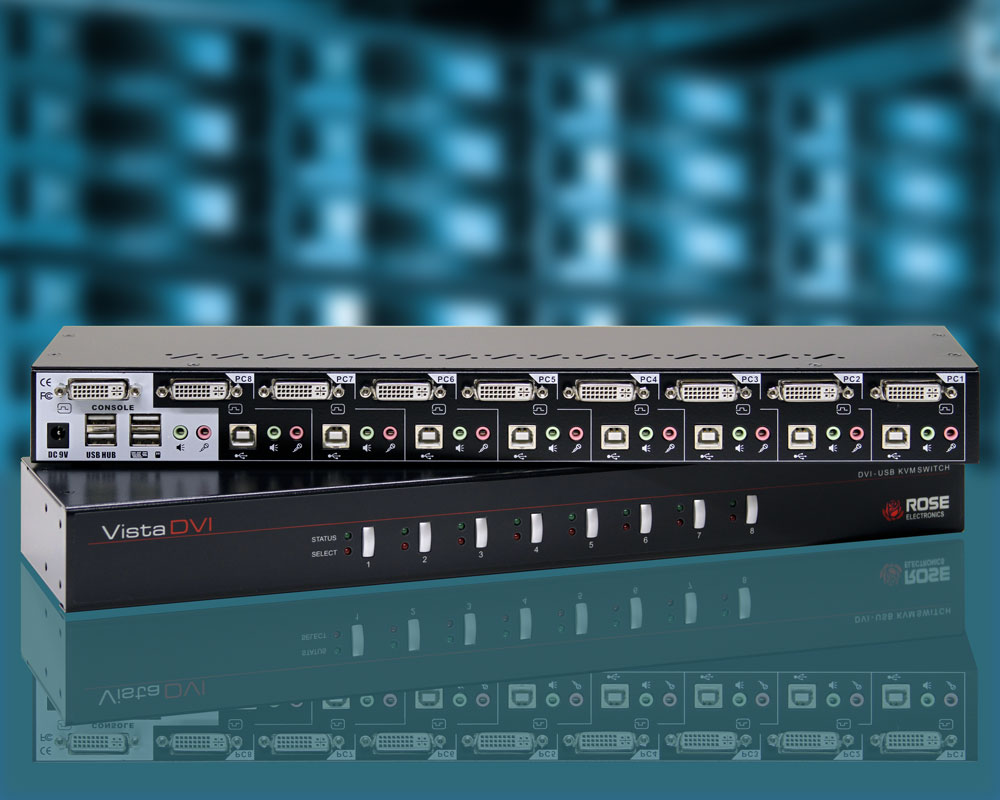

Vista DVI

Single-user kvm Switch - DVI/USB

  • Single-link DVI resolution up to 1920 x 1200
  • Analog VGA resolution up to 2048 x 1536
  • USB 2.0 high speed device support and USB keyboard and mouse emulation
  • Stereo audio speakers and microphone support
  • Switch from front panel, serial port, or hot-key

Typical Application

Vista DVI application


Vista DVI USB kvm switch from Rose Electronics is the ideal product for switching your DVI video and audio from up to 8 computers to one centralized workstation. Digital video is supported at resolutions up to 1920 x 1200, and analog video at resolutions up to 2048 x 1536. The video and audio from each computer can be switched to the local kvm station jointly or independently with the push of a button on the front panel, or by using simple keyboard hotkey commands.

Two USB 2.0 ports are provided for connecting shared high speed USB peripherals. This allows you to share the USB devices between the eight connected computers.

Each connected computer's speaker and microphone outputs are connected to the DVI kvm Switch, eliminating the need for a set for each computer. Vista DVI is multi-platform and supports both PCs and Apple computers.


Dimensions (W x D x H) 15.98" x 3.94" x 1.75" (406 x 100 x 44.5 mm) (1U)
Weight 2.65 lbs (1.2 kgs)
Power 100-240 VAC 50-60Hz
External adapter, +9V, 2.2A
Resolution Single-link DVI: 1920 x 1200
VGA: 2048 x 1536
Distance CPU/KVM: 25 feet (7.6m)
Connectors Video: DVI female
USB 2.0 host: USB Type B
Keyboard: USB Type A
Mouse: USB Type A
USB 2.0 device: Two USB Type A
Speaker: 3.5mm Female audio jack
Microphone: 3.5mm Female audio jack
Power: Barrel jack
Controls Computer selection: Front panel or hot-key
CPU select: Push-button per port
CPU select: Red LED per port
CPU status: Green LED per port
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
kvm-8TDVI/A1 1x8 kvm Switch, DVI-I, Single-link, USB 2.0, Stereo
Cable Part Number Description
CAB-DVIIMMxxx DVI Video Cable
