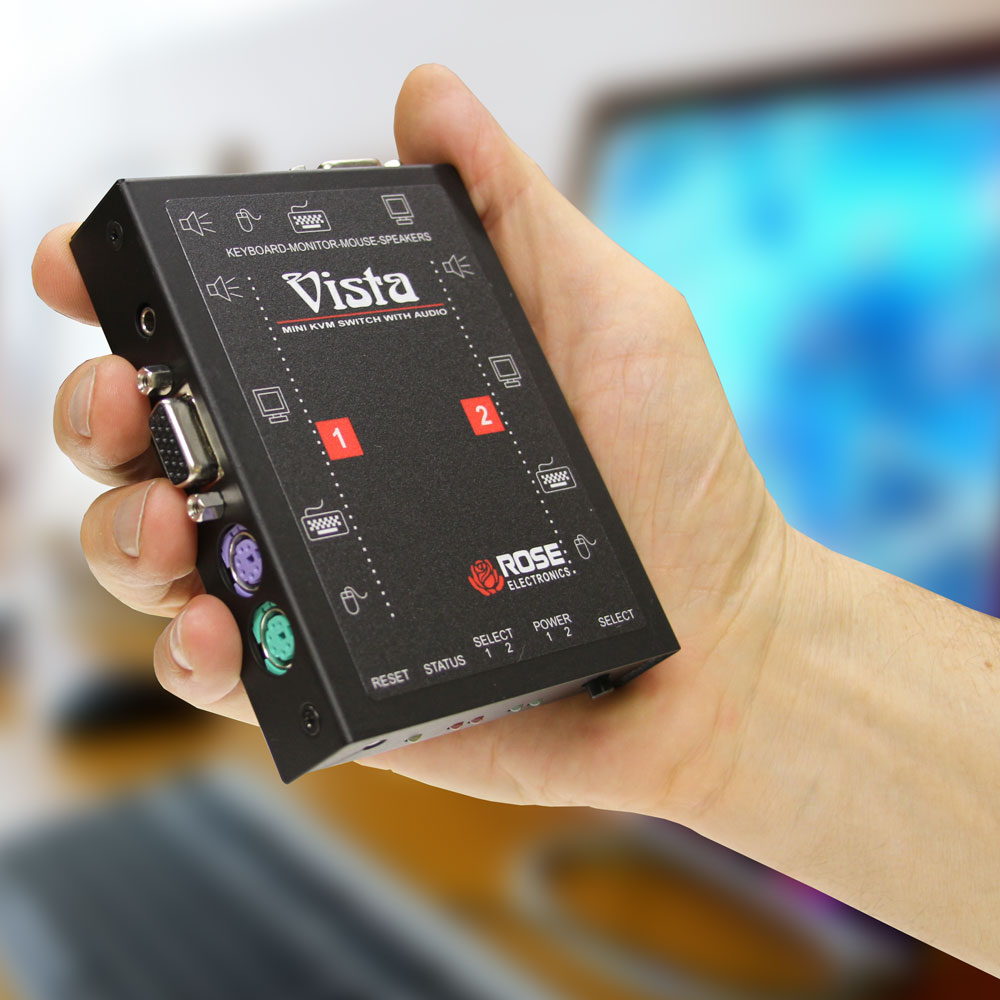

Vista Mini

Low Cost kvm Switch - 1 x 2

  • Easy to use and install
  • Economical
  • Video resolution up to 1920 x 1440
  • Support PC, UNIX, USB, and audio
  • DB25 or PS/2 connectors
  • Optional on-screen menu and audio support

Typical Application

Vista Mini application


The Vista family is the kvm switch of choice for small or home offices wanting to use a single keyboard, monitor, and mouse to access two, four, or eight computers. Designed for plug-and-play operation, Vista switches reduce equipment clutter and save space.

Vista switches are made in three models: The smallest, the Vista Mini 2-port switch, supports audio and has high resolution video (350 MHz). The 2 and 4-port (1U) Vista M-Series switches are rack mountable and support both PC and Apple computers. The 4 and 8-port (1U) Vista L-Series switches are also rack mountable and offer on-screen-menu for larger applications.


Dimensions (W x D x H) 3.2" x 4.2" x 0.8" (81 x 107 x 20.5 mm)
Weight 1 lbs (0.5 kgs)
Power Supplied by computer
Resolution VGA: 2048 x 1536
Distance CPU/KVM: 25 feet (7.6m)
Connectors U-series:
Video: VGA HD15 female
PS/2 keyboard: MiniDin-6F+AW7
PS/2 mouse: MiniDin-6F
CPU/KVM ports: DB25 Female
Controls Reset: push-button switch
Activity: Yellow LED
Computer power: Green LED per port
Computer select: Red LED per port
Environment Operating temperature: 32°F–131°F (0°C–55°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
KVT-2U Vista Mini, 1x2 kvm Switch, 1-kvm to 2-CPUs (DB25)
KVT-2PC Vista Mini, 1x2 kvm Switch, 1-kvm to 2-CPUs (VGA-PS/2-PS/2)
Vista Mini Bundled Kits Description
KVT-2UN-K 2 Port kvm Switch, Includes two 5' cables
KVT-2U-KA 2 Port kvm Switch with audio, Includes two 5' cables
