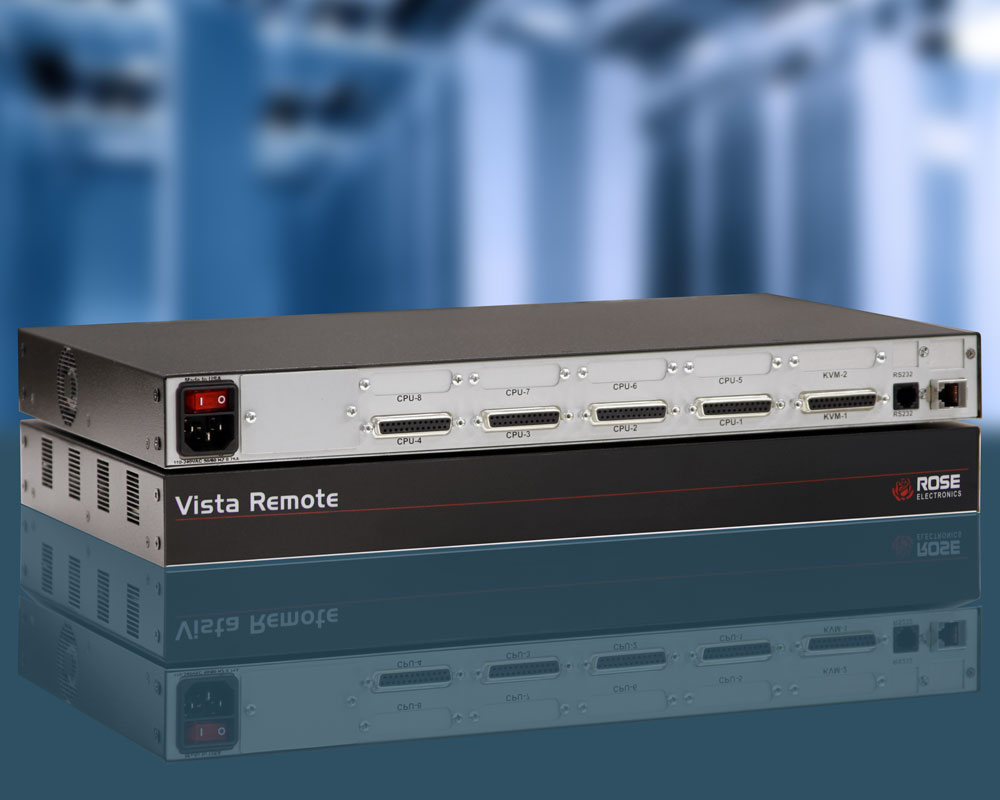

Vista Remote 2

Low Cost Single-user kvm-IP Switch

  • Connect over IP with web browser
  • Video resolution up to 1280 x 1024
  • Easy to install and operate
  • Secure encrypted operation
  • OSD menu

Typical Application

Vista Remote 2 application


Vista Remote 2 is a single user kvm over IP switch combining utility with affordability. It allows connection to computers locally, remotely over a network, or over the Internet using any supported web browser or VNC viewer, making access and switching easy from nearly any location worldwide. Keyboard commands and an on-screen display make selection and switching of computers simple and convenient. Vista Remote 2 supports resolutions of up to 1600 x 1200, making video and imaging crisp and clear. A password security features prevents unauthorized configuration and access. All users require a unique user name and password. Access permissions can be set and adjusted in the configuration menu, allowing specifications for full or limited access to the computers.

Vista Remote 2 consists of an IP input module and a kvm switch module. The IP input module controls remote access to the unit, and the kvm switch module manages switching between connected computers. The IP input module is easy to configure by assigning an IP address and network information and connecting it to the network. The kvm module needs only to have the CPU ports configured. Once these two steps are accomplished, Vista Remote 2 is ready to use.

Vista Remote 2 is offered in 2 models:

  • 4 port model
  • 8 port model


(W x D x H)
4-port: 16.7" x 15.2" x 1.75" (424 x 386 x 44.5 mm) (1U)
8-port: 16.7" x 15.2" x 1.75" (424 x 386 x 44.5 mm) (1U)
Weight 4-port: 6.9 lbs (3.1 kgs)
8-port: 9.3 lbs (4.2 kgs)
Power 90-240 VAC 50-60Hz
4-port: 15W
8-port: 25W
Resolution VGA: 1600 x 1200
Distance CPU/KVM: 25 feet (7.6m)
Connectors Power: IEC 320
RS232: RJ 6-conductor
Network: RJ45
Controls Computer selection: OSD, hot-key, serial port
Unit Power: Green LED
Environment Operating temperature: 32°F–113°F (0°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
KVL-1R4UA/OV/2 Vista Remote 2, One-user, IP kvm Switch, PC, 1-remote / 1-local user,4-CPUs, On Screen Display
KVL-1R8UA/OV/2 Vista Remote 2, One-user, IP kvm Switch, PC, 1-remote / 1-local user,8-CPUs, On Screen Display
