CrystalView DVI CATx

CATx Extender - DVI/USB/PS2 - 460'

  • Compressed DVI video at 1920 x 1200 up to 460' (140m)
  • Either USB or PS/2 keyboard/mouse
  • Local port for remote or local access
  • Optional serial, stereo speakers, and microphone
  • Optional dual-head video

Typical Application

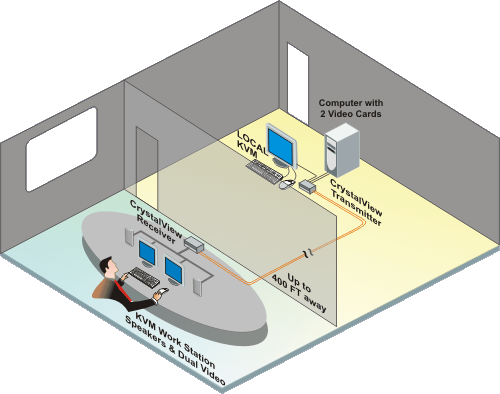

CrystalView DVI CATx application

Overview

CrystalView DVI CATx extends keyboard, mouse, and crystal clear high definition DVI video signals for up to 400 feet from a computer using CATx cable. Supporting resolutions of up to 1920 x 1200 and 18-bit color, this unit is designed for a multitude of media applications.

CrystalView DVI CATx is comprised of two separate units, a transmitter, which connects to the CPU, and a receiver, which connects to the keyboard, mouse, and monitor. The product is capable of supporting single or dual-head video, PS/2 or USB connectors, and is compatible with all operating systems, giving it the flexibility required to meet business demands.

CrystalView DVI CATx is available in 4 models:

  • PS/2 Single-head video
  • PS/2 Dual-head video
  • USB Single-head video
  • USB Dual-head video

All models include dual access. Serial and analog audio are optional additions for any model.

Specifications

Dimensions
(W x D x H)
4" x 5.6" x 1.65" (103 x 143 x 42 mm)
Weight 0.7 lbs (0.3 kgs)
Power 90-240 VAC 50-60Hz
External adapter, +5V DC, 2A at each end
10W
Distance DVI 1920 x 1200: 460' (140m)
Connectors Transmitters :
DVI video + PS/2 keyboard/mouse: DVI female
Includes cable, DVI male to DVI male + two mini-din6 male
Local and multi-head DVI video: DVI female
Dual access PS/2 keyboard/mouse: Mini-din6F
Includes cable, mini-din6M to two mini-din6F
USB Keyboard/mouse: USB Type B
Audio: Two 3.5mm stereo jacks or mini-din8F
Serial: DB9F or mini-din8F
Multi-head units use mini-din8 and include cable, mini-din8M to two 3.5mm audio plugs + DB9F
Link: RJ45 jack, one per video input
Power: Barrel jack
Receiver:
DVI video: DVI female
Dual-head DVI video: DVI female
PS/2 keyboard/mouse: Two PS/2 mini-din6F
USB keyboard/mouse: Two USB type A jack
Audio: Two 3.5mm stereo jacks
Serial: DB9F
Link: RJ45 jack, one per video port
Power: Barrel jack
Controls Unit power: Red LED
Data error: Green LED
Link status: Green LED
Video OK: Green LED
Environment Operating temperature: 41°F–113°F (5°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Single-head kits (transmitter, receiver, and power supply)
CRK-2DTXPD1D CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Single-head Video, DVI, PS/2
CRK-2DTXUD1D CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Single-head Video, DVI, USB
Dual-head kits (transmitter, receiver, and power supply)
CRK-2DTXPD2D CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Dual-head Video, DVI, PS/2
CRK-2DTXUD2D CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Dual-head Video, DVI, USB
CRK-2DTXTD2D CrystalView DVI CATx, Dual Access Digital CATx KVM Extender, Dual-head Video, DVI, USB 2.0
Options
/AUD Audio & Serial Option
Cables
CAB-DDPMDD66M006 DVI-D male to DVI-D male + 2 mini-din6 male, 6’
CAB-MD6M2MD6F Keyboard/Mouse PS/2 “Y" cable
CAB-DVIAUD005 DVI-D male to DVI-D male + 2 3.5mm plug + 1 DB9F, 5'
CAB-DVIDMMnnn DVI-D mm cable
CAB-USBABnnn USB type A/B cable
CAB-SPMMnnn Audio 3.5mm cable
CAB-D9MFnnn RS232 DB9MF serial cable
CAB-08UTPnnn Cable, UTP CAT5, RJ45MM
nnn = length in feet
