Typical Application

Overview

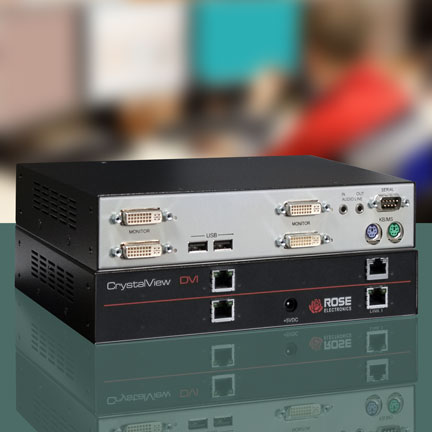

CrystalView DVI Quad is a compact extender that enables the remote location of a multi-monitor user station. The interconnect CATx or fiber cables can be deployed as point-to-point or through a patch panel. The CrystalView DVI Quad is available in standard PS/2 and USB models or video-only. Other options are serial, audio, and USB 2.0. The DVI video ports can be ordered as single, dual, triple, or quad video.

The system consists of two units: a transmitter and a receiver. The transmitter connects to your computer’s keyboard, mouse, one or more DVI video, and optional USB 2.0, serial, and audio ports. The receiver connects to a keyboard, mouse, DVI video monitors, and optional USB 2.0, serial, and audio devices. Each DVI video port and the optional USB 2.0 port require a dedicated interconnect (CATx or Fiber) cable. The unit has both transmitter (local) and receiver (remote) KVM access. The transmitter’s KVM access allows an additional KVM monitor for each video channel to be connected for local viewing, next to the host PC or video source.

CrystalView DVI Quad is ideal for indoor applications, computer room, service desk, or control room environment. The CrystalView DVI Quad fiber units are often used for outdoor applications, building-to-building, and heavy industrial or electrical environments.
