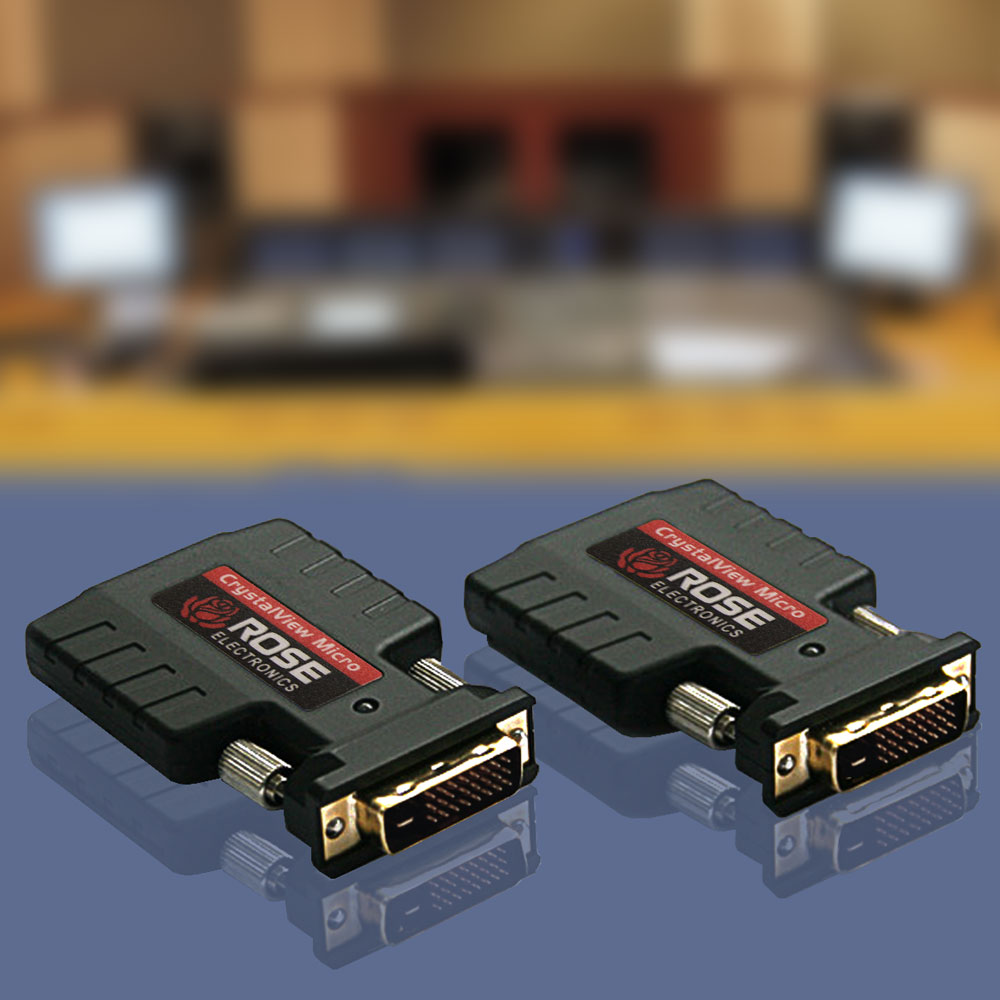

CrystalView DVI Micro DL

Compact Fiber Extender - Dual-link DVI

  • Supports dual-link DVI video
  • Miniature style directly connects to DVI connector
  • Video resolution up to 3840 x 2400 @ 24 Hz, at 1000 feet (300m)
  • Dual SC type connector on unit connects to two multi-mode fibers
  • Auto-detect EDID information

Typical Application

CrystalView DVI Micro DL application

Overview

CrystalView Micro DL is a state-of-the-art extender with a compact design for transmitting a DVI-D video signal up to 1000 feet over SC type two-strand multi-mode fiber. Unparalleled in image quality, CrystalView Micro DL supports crystal clear video resolutions of up to 3840 x 2400 by utilizing a dual-link connection providing higher bandwidth.

It is an ideal product for remote monitoring of large digital displays, building to building transmissions, digital signage, and military and aerospace applications. Intended for use with any high resolution flat panel display, the unit is plug-and-play with a painless installation.

Specifications

Dimensions (W x D x H) 1.96" x 2.98" x 0.59" (50 x 76 x 15 mm)
Weight 0.6 lbs (0.25 kgs)
Power Transmitter: Powered by computer DVI
Receiver: 100-240 VAC 50-60Hz, External adapter, +5V DC, 2A
1W
Distance 3840 x 2400 @24Hz: 1000' (300m)
2560 x 2048 @ 60HZ: 1000' (300m)
Connectors Transmitter:
Dual-link DVI video: DVI male direct plug in
Fiber: Duplex multi-mode fiber with SC duplex connector
Recevier:
Dual-link DVI video: DVI male direct plug in
Fiber: Duplex multi-mode fiber with SC duplex connector
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: -4°F–158°F (-20°C–70°C)
Relative humidity: 20%–80%, non-condensing

Part numbers

Product Part Number Description
CRK-T1DFMDM-DL Dual-link DVI-D Fiber Extender, complete kit. transmitter, receiver, and power adapter
