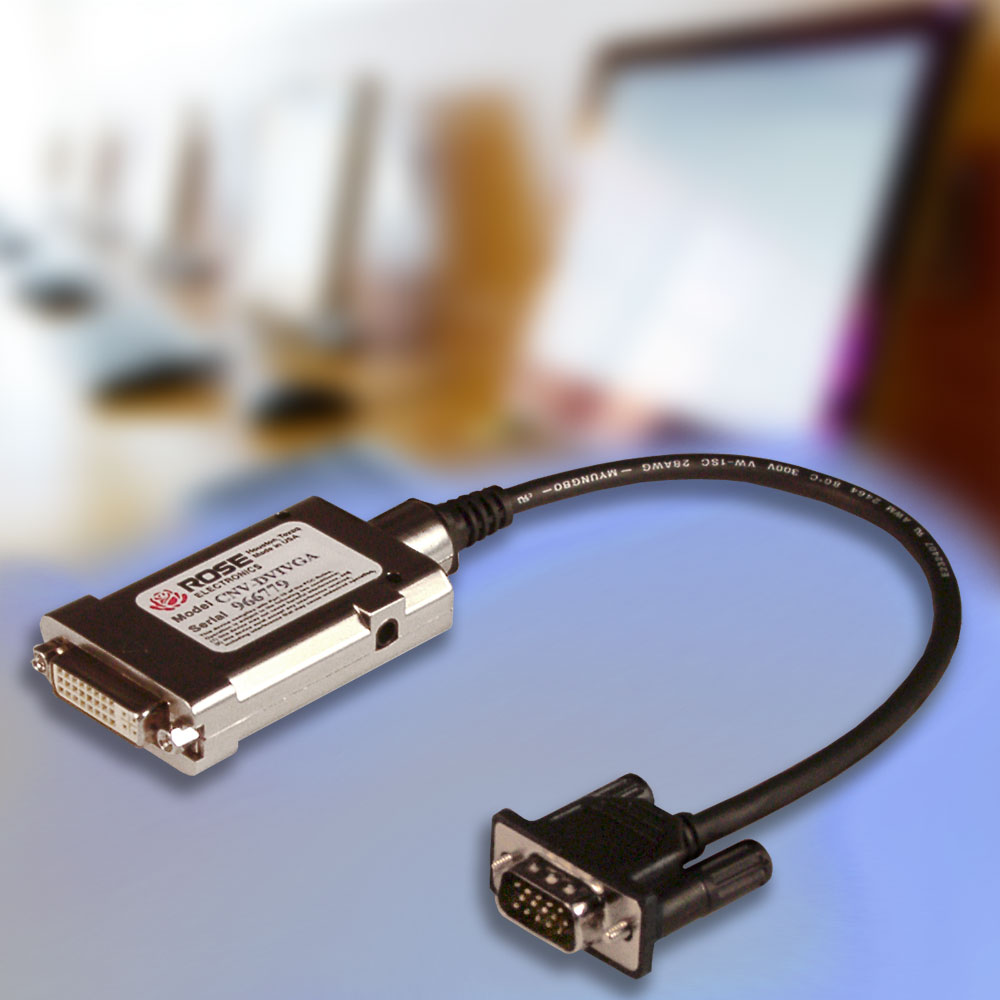

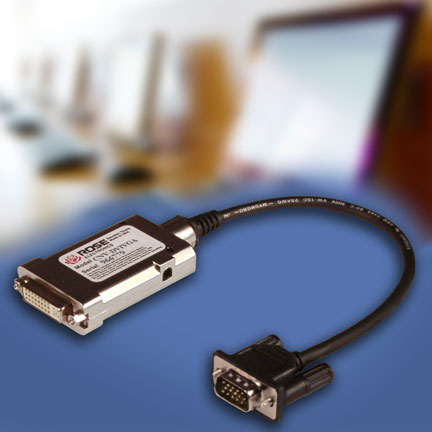

DVI to VGA Converter

Converts DVI Video In to VGA Video Out

  • Converts DVI single-link video to VGA
  • Video resolution up to 1920 x 1200
  • HDCP compliant
  • Optional external power
  • Ideal for connecting a VGA monitor to a DVI video source
  • Custom configurations available

Typical Application

DVI to VGA Converter application


DVI to VGA converter is compact and easy to install. It converts a DVI video source to a VGA analog signal. This allows you to connect a DVI video source from a computer to a VGA monitor, KVM switch, or other device requiring a VGA source. The converter can be custom programmed to produce the resolutions required by the system up to 1920 x 1200.


Dimensions (W x D x H) 1.5" x 2.5" x 0.75" (38 x 64 x 19 mm) Plus HD15 cable
Weight 1 lbs (0.5 kgs)
Power Powered by DVI or optional DC adapter
Resolution 1920 x 1200
Distance Video: 25 feet (7.6m)
Connectors Video in: DVI female
Video out: HD15 male
Environment Operating temperature: 32°F–122°F (0°C–50°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
CNV-DVIVGA/1 VGA 640x480
CNV-DVIVGA/3 XGA 1024x768
CNV-DVIVGA/4 SXGA 1280x1024
CNV-DVIVGA/5 UXGA 1600x1200
CNV-DVIVGA/6 1080p 1920x1080
