DVI to VGA Converter
Converts DVI Video In to VGA Video Out
- Converts DVI single-link video to VGA
- Video resolution up to 1920 x 1200
- HDCP compliant
- Optional external power
- Ideal for connecting a VGA monitor to a DVI video source
- Custom configurations available

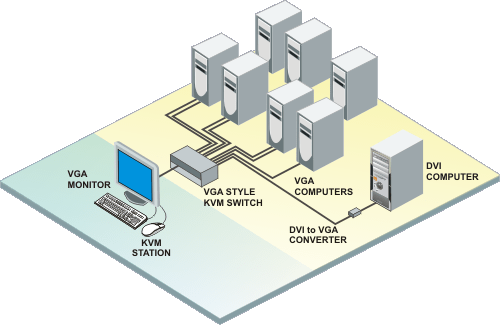

Typical Application
Overview
DVI to VGA converter is compact and easy to install. It converts a DVI video source to a VGA analog signal. This allows you to connect a DVI video source from a computer to a VGA monitor, KVM switch, or other device requiring a VGA source. The converter can be custom programmed to produce the resolutions required by the system up to 1920 x 1200.
Specifications ▼
| Dimensions (W x D x H) | 1.5" x 2.5" x 0.75" (38 x 64 x 19 mm) Plus HD15 cable |
| Weight | 1 lbs (0.5 kgs) |
| Power | Powered by DVI or optional DC adapter 1.8W |
| Resolution | 1920 x 1200 |
| Distance | Video: 25 feet (7.6m) |
| Connectors | Video in: DVI female Video out: HD15 male |
| Environment | Operating temperature: 32°F–122°F (0°C–50°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing |
Part numbers ▼
| Product Part Number | Description |
|---|---|
| CNV-DVIVGA/1 | VGA 640x480 |
| CNV-DVIVGA/2 | SVGA 800x600 |
| CNV-DVIVGA/3 | XGA 1024x768 |
| CNV-DVIVGA/4 | SXGA 1280x1024 |
| CNV-DVIVGA/5 | UXGA 1600x1200 |
| CNV-DVIVGA/6 | 1080p 1920x1080 |
