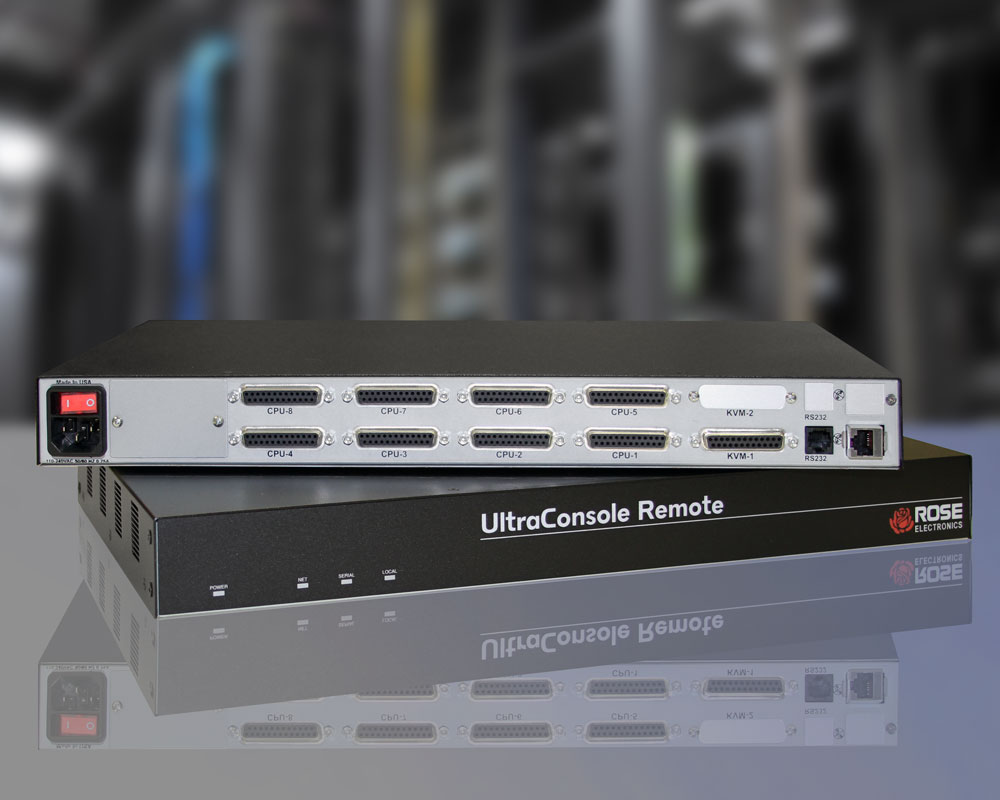

UltraConsole Remote 2

Single-user kvm-IP Switch with Serial

  • Connects up to 1000 computers with local port for dual access
  • VGA Video resolution up to 1600 x 1200
  • Browser-based or VNC program to remotely access computers over IP
  • Responsive, real-time mouse control
  • Secure encrypted operation

Typical Application

UltraConsole Remote 2 application

Overview

UltraConsole Remote 2 represents the latest in remote kvm access over IP technology. UltraConsole Remote 2 allows a user station to connect to four, eight, or sixteen computers or serial devices per chassis, expandable to as many as 1,000 computers or serial devices. The user station can access UltraConsole Remote 2 locally, over the local network, or over IP from anywhere in the world using any supported web browser.

UltraConsole Remote 2 series comes in 1 x 4, 1 x 8, and 1 x 16 models. Units easily connect to expansion units to make a seamless and scalable remote management solution.

The advanced design of the UltraConsole Remote 2 uses networking communication technology to reduce cost, eliminate single points of failure, and increase reliability. The on-screen menus make configuring, installation, and monitoring easy with on-screen instructions and help. Use the on-screen menus to name computers, select computers, view connections, set-up users, configure system security, and other features.

UltraConsole Remote 2 provides serial support to access computers, routers, Ethernet hubs, UNIX devices and more. It can perform as a VT100/VT220 terminal emulator with an eight-page scroll buffer. Security, flash memory, system status, and many other features ensure that the UltraConsole Remote 2 will streamline your data center or server room and provide access to your system from any location locally or around the world.

Specifications

Dimensions
(W x D x H)
4-port: 16.7" x 15.2" x 1.75" (424 x 386 x 44.5 mm) (1U)
8-port: 16.7" x 15.2" x 1.75" (424 x 386 x 44.5 mm) (1U)
16-port: 16.7" x 15.2" x 3.5" (424 x 386 x 89 mm) (2U)
Weight 4-port: 6.9 lbs (3.1 kgs)
8-port: 9.3 lbs (4.2 kgs)
16-port: 14 lbs (6.4 kgs)
Power 90-240 VAC 50-60Hz
4-port: 15W
8-port: 25W
16-port: 50W
Resolution VGA: 1600 x 1200
Distance CPU/KVM: 25 feet (7.6m)
Connectors Power: IEC 320
CPU/KVM: DB25F
Expansion: DB15M/F
RS232: RJ 6-conductor
Network: RJ45
Controls Computer selection: OSD, hot-key, serial port
Unit Power: Green LED
Environment Operating temperature: 32°F–113°F (0°C–45°C)
Storage temperature: -13°F–140°F (-25°C–60°C)
Relative humidity: 5%–80%, non-condensing

Part numbers

Product Part Number Description
UCR-1R1X04U/2 UltraConsole Remote 2, One-User kvm Switch, Multi-platform, 1-remote / 1-local users, 4-CPUs
UCR-1R1X08U/2 UltraConsole Remote 2, One-User kvm Switch, Multi-platform, 1-remote / 1-local users, 8-CPUs
UCR-1R1X16U/2 UltraConsole Remote 2, One-User kvm Switch, Multi-platform, 1-remote / 1-local users, 16-CPUs
RM-UBxx Rack mount kit for 1U B-Chassis (xx = 19", 23", or 24")
RM-UCxx Rack mount kit for 2U C-Chassis (xx = 19", 23", or 24")
Cable Part Number Description
CAB-ZX0606Cnnn UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-C1Y0509Cnnn UltraCable Hi-Res, PC to Switch, DB25M to VGA-AT Keyboard + Serial Mouse
CAB-SCX0800Cnnn UltraCable Hi-Res, Sun to Switch, DB25M to 13W3-Sun Keyboard + Mouse
CAB-CXUSBCnnn UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse
CAB-RGBHV0606Cnnn UltraCable Hi-Res, PC to Switch, DB25M to RGBHV-PS/2 Keyboard + Mouse
CAB-ZX0606Mnnn UltraCable, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Mnnn UltraCable Hi-Res, Switch to kvm, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-RGBHV0606Mnnn UltraCable Hi-Res, Switch to RGB kvm, DB25M to RGBHV-PS/2 Keyboard + Mouse
CAB-USDTD9FCnnn Cable, Serial DTE Equipment to Switch, DB25M to DB9F
CAB-USDCD9MCnnn Cable, Serial DCE Equipment to Switch, DB25M to DB9M
CAB-USDTD25FCnnn Cable, Serial DTE equipment to Switch, DB25M to DB25F
CAB-USDCD25MCnnn Cable, Serial DCE equipment to Switch, DB25M to DB25M
CAB-USSNMD8MCnnn Cable, Serial Sun to Switch, DB25M to MD8M
CAB-USSNMD8MCnnn Cable, Serial Sun to Switch, DB25M to MD8M
CAB-CXUMXnnn Cable, Bus Expansion Cable (Molded version)
CAB-CXUMHnnn Cable, Bus Expansion Cable
CAB-08UTPnnn Cable, Switch to Network, RJ45 to RJ45
