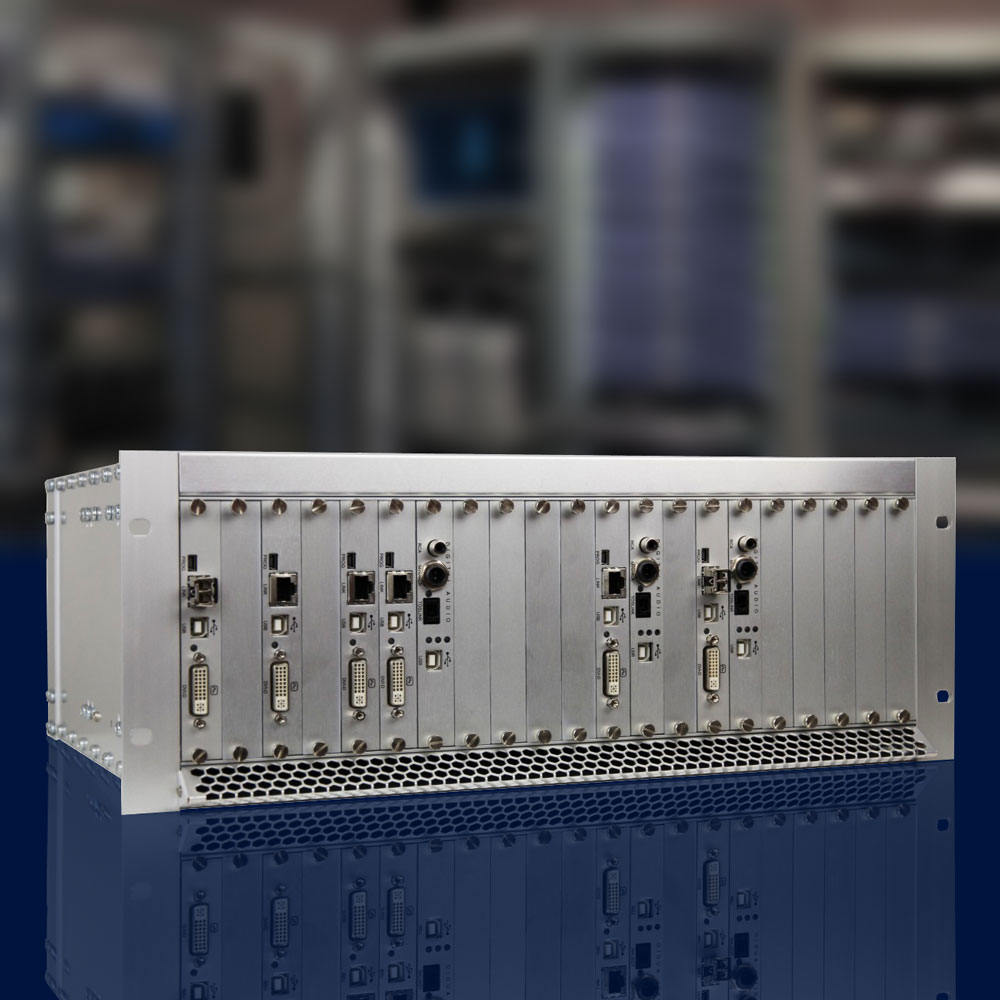

Orion XTender Rack
Modular CATx/Fiber Extender 21-Card Chassis
- 21 card chassis can be populated with transmitter or receiver cards
- Extends signals up to 460' (140m) over CATx, 3,300' (1km) over OM3 multi-mode, and 33,000' (10km) over single-mode
- Supports DVI video resolution up to 2048 x 1152
- Base models use DVI video and USB keyboard and mouse
- Options: VGA input, dual-link DVI, HDMI input/output, USB 2.0, analog or digital audio, serial, and redundant power
Typical Application
Overview
Orion XTender Rack is a large rack chassis with a capacity for 21 XTender transmitter or receiver modules that provides a compact design and organizes your installation. Its modular design provides for a high degree of flexibility. It can be operated as a point to point extender or be connected to a KVM switch. The basic card modules support DVI-D video and USB HID devices, such as keyboards, mice, and graphic tablets.Optional modules support VGA video inputs, HDMI input/output, digital or analog audio, serial (RS232 or RS422), and full transparent USB 2.0.
XTender's range of options makes it easy to customize the extender to fit the system application.
Specifications ▼
| Dimensions (W x D x H) | 21-card chassis: 19" x 18.2" x 6.3" (482 x 462 x 176 mm) Single-wide card: 4.06" x 5.63" x 1.14" (103 x 143 x 29 mm) Double wide-card: 4.06" x 5.63" x 1.69" (103 x 143 x 43 mm) |
| Weight | 22.0 lbs (10 kgs) |
| Power | 100-240 VAC 50-60Hz, 4A max Maximum chassis power 150W Optional redundant power supply Maximum power required by cards: Base card DVI + HID: 4W Base card DVI/VGA+ HID 4.5W Base card HDMI + HID: 4W Analog Audio / Serial: 1.5W Serial(RS422): .75W Digital Audio: 1.5W USB-HID: 1.5W PS/2: 3.25W USB 2.0 embedded: 5.5W USB 2.0: 12.5W |
| Resolution | DVI single-link video: 1920 x 1200/2048 x 1152 DVI dual-link video: 2560 x 2048 VGA video: 1920 x 1200 HDMI video: 1920 x 1200 |
| Distance | CATx: 460' (140m) Multi-mode fiber: (62.5µ): 650' (200m) Multi-mode fiber: (50µ): 1,300' (400m) Multi-mode fiber: (50µ) OM3: 3,300' (1km) Single-mode fiber: (9µ): 33,000' (10km) |
| Connectors | Transmitter: DVI video: DVI female VGA video: DVI-I female HDMI: HDMI female USB HID keyboard/mouse: USB Type B PS/2 keyboard/mouse: Two PS/2 mini-din6F PS/2 dual access keyboard/mouse: Two PS/2 mini-din6F USB 2.0 host: USB Type B CATx link: RJ45 jack, one per video port Fiber link: Duplex LC, one per video port Analog audio: Two 3.5mm stereo jacks Digital audio: S/PDIF RCA, AES mini-XLR, S/PDIF optical TOSLINK Serial: DB9F Power: IEC320 Receiver: DVI video: DVI female, one per port HDMI: HDMI female USB HID keyboard/mouse: Two USB type A jack PS/2 keyboard/mouse: Two PS/2 mini-din6F USB 2.0 device: Four USB Type A CATx link: RJ45 jack, one per video port Fiber link: Duplex LC, one per video port Analog audio: Two 3.5mm stereo jacks Digital audio: S/PDIF RCA, AES mini-XLR, S/PDIF optical TOSLINK Serial: DB9M Power: IEC-320 receptacle |
| Controls | Error status: Green LED per port Link status: Green LED per port USB/video status: RGB LED per port VGA status: RGB LED per port Digital audio status: RGB LED per port USB-HID status:Two orange LEDs per port USB embedded 2.0 status: Three green LEDs per port USB 2.0 status: RGB LED per port |
| Environment | Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing |
Part numbers ▼
| Orion XTender Chassis | |
|---|---|
| OEE-CH21 | Orion XT, 21 Slot Chassis, 1x PSU |
| OEE-CH21/RP | Orion XT, 21 Slot Chassis, Internal PSU, Setup for Redundancy Power, 4U |
| Orion XTender transmitter card (DVI-D+USB-HID) | |
| OEC-SLDTXUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, CATx |
| OEC-SLDFMUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber MM |
| OEC-SLDFSUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber SM |
| OEC-SLDF3UD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, Fiber SM-3.125 |
| OEC-SLD2CUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, 2x CATx, Redundant Link |
| OEC-SLD2MUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, 2x Fiber MM, Redundant Link |
| OEC-SLD2SUD1D/IRK | Orion XT, Transmitter Card, DVI-D, USB-HID, 2x Fiber SM, Redundant Link |
| Orion XTender transmitter card (DVI-I+USB-HID) | |
| OEC-SLDTXUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, CATx |
| OEC-SLDFMUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, Fiber MM |
| OEC-SLDFSUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, Fiber SM |
| OEC-SLDTXUD1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, CATx |
| OEC-SLDFMUD1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber MM |
| OEC-SLDFSUD1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber SM |
| OEC-SLDF3UD1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA) with Scaling, USB-HID, Fiber SM-3.125 |
| OEC-SLD2CUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x CATx, Redundant Link |
| OEC-SLD2MUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x Fiber MM, Redundant Link |
| OEC-SLD2SUS1V/IRK | Orion XT, Transmitter Card, DVI-I (VGA), USB-HID, 2x Fiber SM, Redundant Link |
| Orion XTender transmitter card (DVI-D dual-link +USB-HID) | |
| OEC-SLDTXU1DL/IRK | Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, CATx |
| OEC-SLDFMU1DL/IRK | Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber MM |
| OEC-SLDFSU1DL/IRK | Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber SM |
| OEC-SLDF3U1DL/IRK | Orion XT, Transmitter Card, DVI-D Dual-link, USB-HID, Fiber SM-3.125 |
| Orion XTender transmitter card (DVI-D dual video+USB-HID) | |
| OEC-SLDTXU2SL/IRK | Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, CATx |
| OEC-SLDFMU2SL/IRK | Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber MM |
| OEC-SLDFSU2SL/IRK | Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber SM |
| OEC-SLDF3U2SL/IRK | Orion XT, Transmitter Card, 2x DVI-D Single-link, USB-HID, Fiber SM-3.125 |
| Orion XTender transmitter card (HDMI+USB-HID) | |
| OEC-SLDTXUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, CATx |
| OEC-SLDFSUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM |
| OEC-DLDTXUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, CATx, with Local HDMI-Out |
| OEC-DLDFSUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out |
| OEC-SLD2CUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, 2x CATx, Redundant Link |
| OEC-SLD2SUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, 2x Fiber SM, Redundant Link |
| OEC-DLD2CUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, CATx, with Local HDMI-Out, Redundant Link |
| OEC-DLD2SUH1H/IRK | Orion XT, Transmitter Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out, Redundant Link |
| OEC-SLDTX0H1H/IRK | Orion XT, Transmitter Card, HDMI, CATx |
| Orion XTender transmitter option card (USB 2.0) | |
| OEC-SLDFS0H1H/IRK | Orion XT, Transmitter Card, HDMI, Fiber SM |
| OEC-SLDTXT000/IRK | Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), CATx |
| OEC-SLDFMT000/IRK | Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), Fiber MM |
| OEC-SLDFST000/IRK | Orion XT, Transmitter Card, USB 2.0 high-speed (up to 480 Mbps), Fiber SM |
| Orion XTender transmitter option cards | |
| OEC-L1H | Orion XT, Transmitter Optional Card, USB-HID (Max two devices) |
| OEC-L1E | Orion XT, Transmitter Optional Card, Embedded USB 2.0 full-speed (up to 36 Mbps) |
| OEC-LPS | Orion XT, Transmitter Optional Card, PS/2 KB/MS |
| OEC-L1AS | Orion XT, Transmitter Optional Card, Analog Audio + RS232 |
| OEC-L1A422 | Orion XT, Transmitter Optional Card, Analog Audio + RS422 |
| OEC-L1DA | Orion XT, Transmitter Optional Card, Digital Audio |
| OEC-L2DA | Orion XT, Transmitter Optional Card, 2x Digital Audio |
| OEC-L1AS+1H | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + USB-HID |
| OEC-L1AS+1E | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + Embedded USB 2.0 |
| OEC-L1AS+PS | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + PS/2 |
| OEC-L1A422+1H | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + USB-HID |
| OEC-L1A422+1E | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + Embedded USB 2.0 |
| OEC-L1A422+PS | Orion XT, Transmitter Optional Card, Analog Audio+RS232 + PS/2 |
| OEC-L1DA+1H | Orion XT, Transmitter Optional Card, Digital Audio+RS232 + USB-HID |
| OEC-L1DA+1E | Orion XT, Transmitter Optional Card, Digital Audio+RS232 + Embedded USB 2.0 |
| OEC-L1DA+1AS | Orion XT, Transmitter Optional Card, Digital Audio + Analog Audio+RS232 |
| Orion XTender receiver card (DVI-D+USB-HID) | |
| OEC-SRDTXUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, CATx |
| OEC-SRDFMUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, Fiber MM |
| OEC-SRDFSUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, Fiber SM |
| OEC-SRDF3UD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, Fiber SM-3.125 |
| OEC-SRD2CUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, 2x CATx, Redundant Link |
| OEC-SRD2MUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, 2x Fiber MM, Redundant Link |
| OEC-SRD2SUD1D/IRK | Orion XT, Receiver Card, DVI-D, USB-HID, 2x Fiber SM, Redundant Link |
| Orion XTender receiver card (DVI-I+USB-HID) | |
| OEC-SRD2CUS1V/IRK | Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x CATx, Redundant Link |
| OEC-SRD2MUS1V/IRK | Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x Fiber MM, Redundant Link |
| OEC-SRD2SUS1V/IRK | Orion XT, Receiver Card, DVI-I (VGA), USB-HID, 2x Fiber SM, Redundant Link |
| Orion XTender receiver card (DVI-D dual-link+USB-HID) | |
| OEC-SRDTXU1DL/IRK | Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, CATx |
| OEC-SRDFMU1DL/IRK | Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber MM |
| OEC-SRDFSU1DL/IRK | Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber SM |
| OEC-SRDF3U1DL/IRK | Orion XT, Receiver Card, DVI-D Dual-link, USB-HID, Fiber SM-3.125 |
| Orion XTender receiver card (DVI-D dual video+USB-HID) | |
| OEC-SRDTXU2SL/IRK | Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, CATx |
| OEC-SRDFMU2SL/IRK | Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber MM |
| OEC-SRDFSU2SL/IRK | Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber SM |
| OEC-SRDF3U2SL/IRK | Orion XT, Receiver Card, 2x DVI-D Single-link, USB-HID, Fiber SM-3.125 |
| Orion XTender receiver card (HDMI+USB-HID) | |
| OEC-SRDTXUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, CATx |
| OEC-SRDFSUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM |
| OEC-DRDTXUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, CATx, with Local HDMI-Out |
| OEC-DRDFSUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM, with Local HDMI-Out |
| OEC-SRD2CUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, 2x CATx, Redundant Link |
| OEC-SRD2SUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, 2x Fiber SM, Redundant Link |
| OEC-DRD2CUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, CATx, with Local HDMI-Out, Redundant Link |
| OEC-DRD2SUH1H/IRK | Orion XT, Receiver Card, HDMI, USB-HID, Fiber SM, with Local HDMI-B208Out, Redundant Link |
| OEC-SRDTX0H1H/IRK | Orion XT, Receiver Card, HDMI, CATx |
| Orion XTender receiver option card (USB 2.0) | |
| OEC-QRDTXT000/IRK | Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), CATx |
| OEC-QRDFMT000/IRK | Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), Fiber MM |
| OEC-QRDFST000/IRK | Orion XT, Receiver Card, USB 2.0 high-speed (up to 480 Mbps), Fiber SM |
| Orion XTender receiver option cards | |
| OEC-R1H | Orion XT, Receiver Optional Card, USB-HID (Max two devices) |
| OEC-R1E | Orion XT, Receiver Optional Card, Embedded USB 2.0 full-speed (up to 36 Mbps) |
| OEC-RPS | Orion XT, Receiver Optional Card, PS/2 KB/MS |
| OEC-R1AS | Orion XT, Receiver Optional Card, Analog Audio + RS232 |
| OEC-R1A422 | Orion XT, Receiver Optional Card, Analog Audio + RS422 |
| OEC-R1DA | Orion XT, Receiver Optional Card, Digital Audio |
| OEC-R2DA | Orion XT, Receiver Optional Card, 2x Digital Audio |
| OEC-R1AS+1H | Orion XT, Receiver Optional Card, Analog Audio+RS232 + USB-HID |
| OEC-R1AS+1E | Orion XT, Receiver Optional Card, Analog Audio+RS232 + Embedded USB 2.0 |
| OEC-R1AS+PS | Orion XT, Receiver Optional Card, Analog Audio+RS232 + PS/2 |
| OEC-R1A422+1H | Orion XT, Receiver Optional Card, Analog Audio+RS232 + USB-HID |
| OEC-R1A422+1E | Orion XT, Receiver Optional Card, Analog Audio+RS232 + Embedded USB 2.0 |
| OEC-R1A422+PS | Orion XT, Receiver Optional Card, Analog Audio+RS232 + PS/2 |
| OEC-R1DA+1H | Orion XT, Receiver Optional Card, Digital Audio+RS232 + USB-HID |
| OEC-R1DA+1E | Orion XT, Receiver Optional Card, Digital Audio+RS232 + Embedded USB 2.0 |
| OEC-R1DA+1AS | Orion XT, Receiver Optional Card, Digital Audio + Analog Audio+RS232 |
