CrystalLink USB3.1 Active Copper Cable

USB3.1 Copper Extender

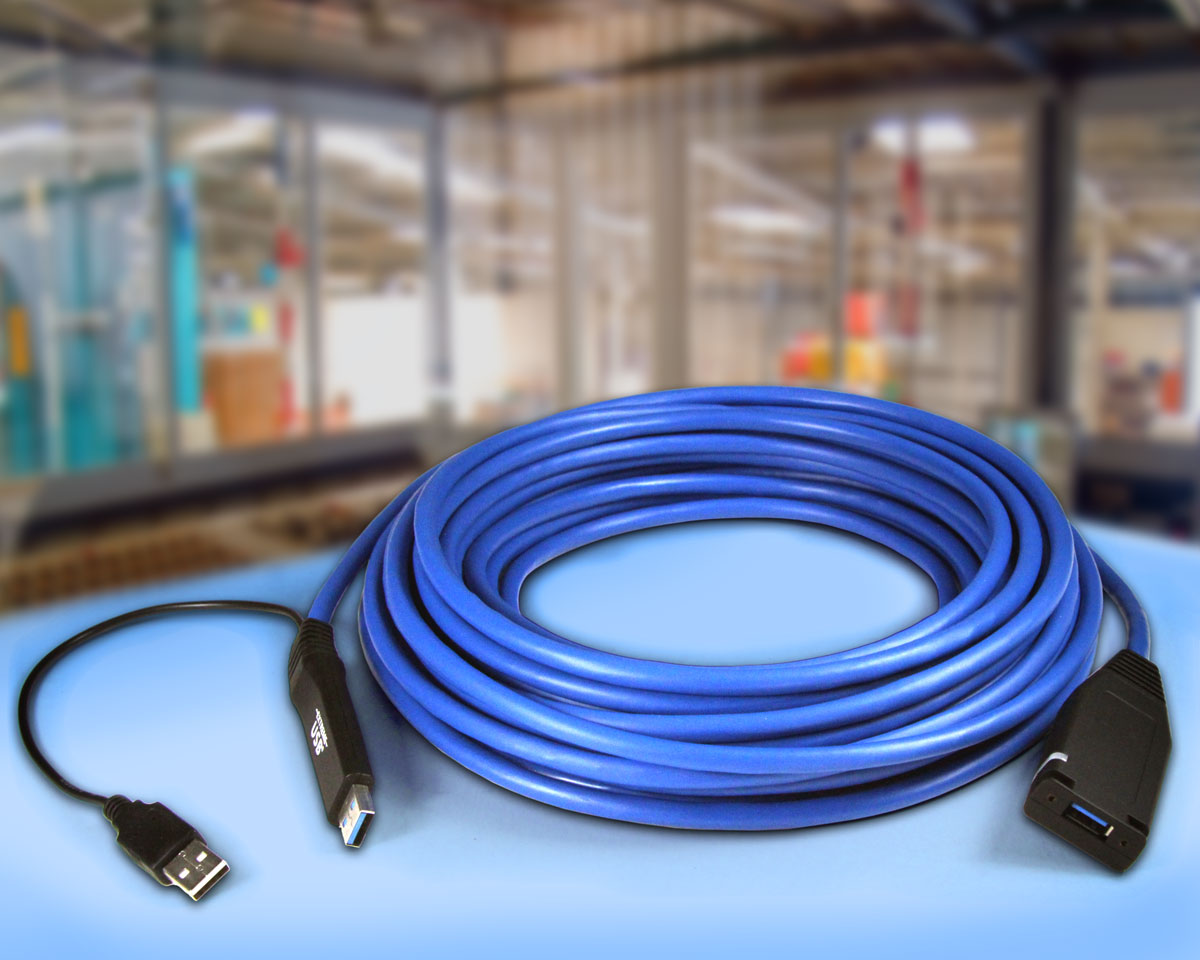

Product Picture
  • USB3.0 high speed extender, up to 5Gbps
  • Direct point-to-point copper cable, 50ft (15m)
  • Add a powered USB Hub to expand the number of supported USB3.0 devices

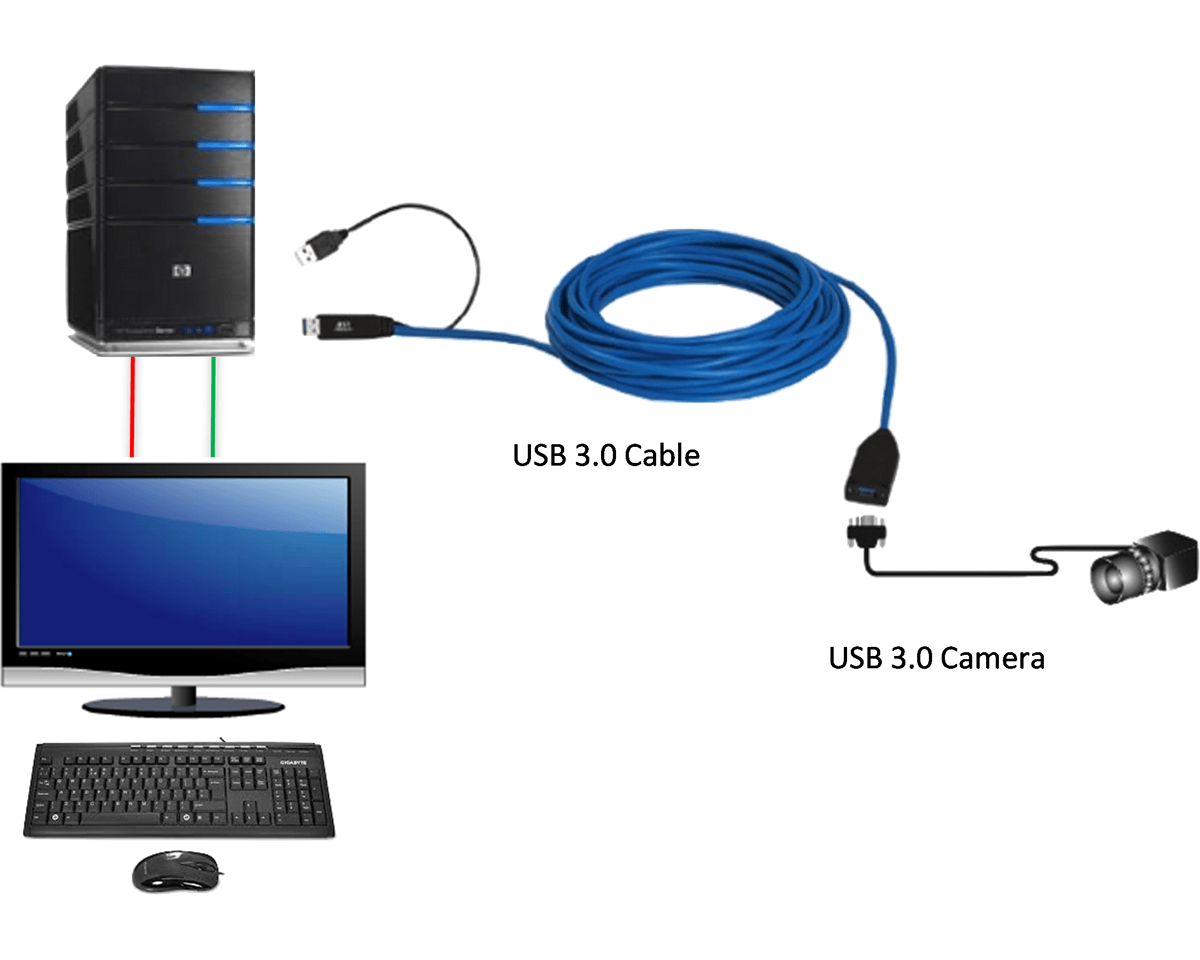

The CrystalLink USB3.1 extender cable delivers the advantages of super high-speed, 5Gbps USB3.1 throughput over copper cable. Simply plug the cable into the host transmitter device, and connect the remote end to a USB3.1 camera or other USB3.1 high-speed device. The USB3.1 extender cable provides transparent USB3.1 extension, and works with all major operating systems. The USB3.1 extender cable is 50ft (15m) length and has one USB3.1 locking connector at the remote end. Additional USB3.1 ports can be added by installing a powered USB3.1 hub at the remote end.


Dimensions Length 49.2 ft (15m)Cable diameter .27" (6.9mm)Minimum Bend Radius 1.10" (28mm)
Weight 2.4 lb (1.1 kg)
Power Bus powered from host deviceUSB connector for devices drawing more than 2.5W (5A)
Distance 50 feet (15m)
Connectors Host End:USB 3.0 Type A connectorPower: USB3.0 Type A power connector, 5AReceiver End:USB device: 1 x USB 3.0 Type A Locking Receptacle, 900ma
Environment Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -20°F–158°F (-4°C–70°C)Relative humidity: 20%–80%, non-condensing


Product Part Number Description
CLK-CAB1U3TP-15M CrystalLink, USB 3.0 Extender, 1 port Active Copper Cable, 15 meter, 5Gbps


Datasheet • CrystalLink USB3.1 Active Copper Cable PDF
Manual • CrystalLink USB3.1 Active Copper Cable • Installation and Operation PDF
