CATx Extender Selection Guide

Product Video Maximum
Resolution
Distance
KB MS USB
Device
Audio Serial Local
Port
Multi
head
Data
Sheet

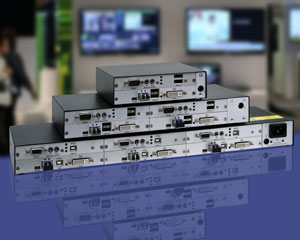

picture Orion XTender Modular CATx/Fiber Extender
2/4/6-Card Chassis
DVI-D
DVI-I/VGA
HDMI
DisplayPort
Dual-Link DVI
SDI
3840×2160@60 460'140mUSB
PS/2
USB 2.0
Option
Option Option   Option datasheet

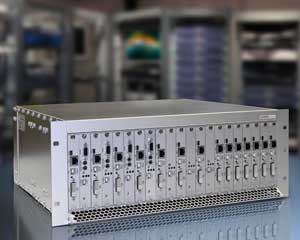

picture Orion XTender Rack Modular CATx/Fiber Extender
21-Card Chassis
DVI-D
DVI-I/VGA
HDMI
DisplayPort
Dual-Link DVI
SDI
3840×2160@60 460'140mUSB
PS/2
USB 2.0
Option
Option Option   Option datasheet

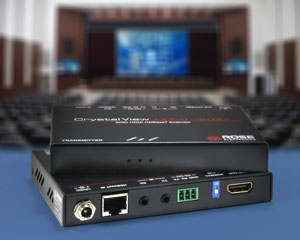

picture CrystalView HDMI 4K60 HDBaseT Extender
Extension • CATx • Power over cable
HDMI 3840×2160@60 330'100mNone   Via HDMI     datasheet

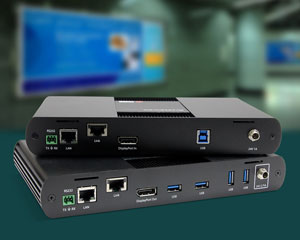

picture CrystalView Exact CATx Extender • DisplayPort 1.2a
USB 3.1/2.0/1.1 • LAN • RS232 • 330' (100m)
DisplayPort 3840×2160@60 330'100mUSB USB 3.1 Gen 1
USB 2.0
USB 1.1
Via DP     datasheet
picture UltraLink E-series KVM over 1G Ethernet
DisplayPort • USB 2.0 • Audio • Serial
DisplayPort 3840×2160@60 330'100m
USB USB 2.0 datasheet
picture CrystalView EX HDMI CATx Extender
HDMI/USB 2.0 • 330' (100m)
HDMI 3840×2160@30 330'100mUSB USB 2.0 Via HDMI       datasheet

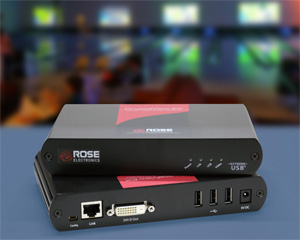

picture CrystalView EX DVI CATx Extender
DVI/USB 2.0 • 330' (100m)
DVI 1920×1200 330'100mUSB USB 2.0 Via USB2.0       datasheet

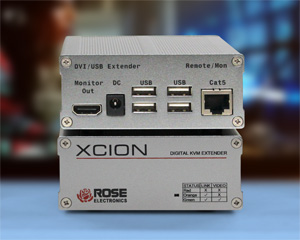

picture Xcion HDMI CATx Compact HDMI CATx Extender/Switch
USB2.0 and matrix switch options
HDMI 1920×1200 500'150mUSB USB2.0ption Option
over USB
Option
over USB
datasheet

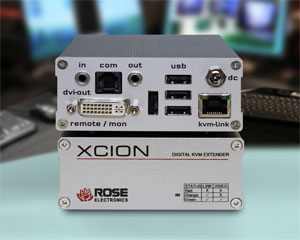

picture Xcion DVI CATx Compact DVI CATx Extender/Switch
VGA, USB2.0, Audio, Serial, Switch options
DVI-D
DVI-I
VGA
1920×1200 426'130mUSB USB 2.0
Option
Option Option datasheet

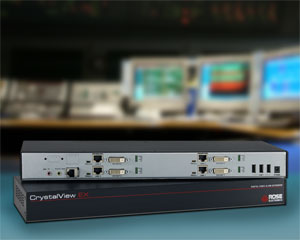

picture CrystalView EX HDMI Multi Multi-head CATx Extender
HDMI/USB 2.0/Audio • 330' (100m)
HDMI x 1-4 1920×1200 330'100mUSB USB 2.0 Option Option   datasheet
picture CrystalView EX DVI Multi Multi-head CATx Extender
DVI/USB 2.0/Audio • 330' (100m)
DVI x 1-4 1920×1200 330'100mUSB USB 2.0 Option Option   datasheet

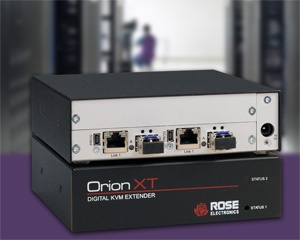

picture Orion Cross Repeater Modular CATx/Fiber Converter/Repeater
Bi-directional data ports
Transparent 400'140mN/A datasheet

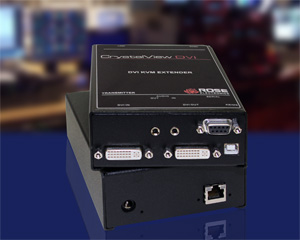

picture CrystalView DVI CATx CATx Extender
DVI/USB/PS2 • 460'
DVI 1920×1200 460'140mUSB
PS/2
USB2.0
Option
Option Option Option datasheet

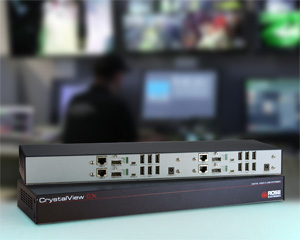

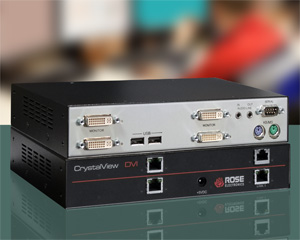

picture CrystalView DVI Quad CATx Multi-head CATx Extender
DVI + options
DVI 1920×1200 460'140mUSB
PS/2
USB2.0
Option
Option Option Option datasheet
picture CrystalView DVI Multi DVI CATx Extender/Splitter
1, 2, 4 outputs • 1920×1200 • 220'
DVI 1-8 out 1920×1200 220'65mNone         datasheet

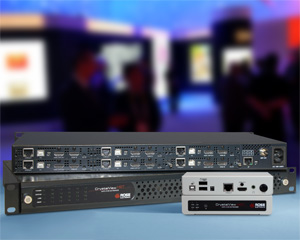

picture CrystalView HDT HDBaseT Extender
Extension • CATx • Power over cable
HDMI 1920×1200 330'100mUSB     datasheet

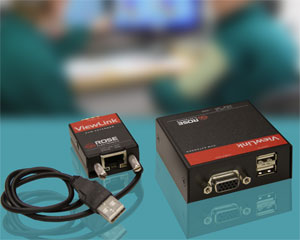

picture ViewLink CATx Miniature CATx Extender
VGA/USB/PS2+Skew • 1000'
VGA 1920×1200
1024×768
300'90m
1,000'300m
USB
PS/2
          datasheet

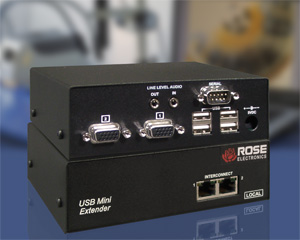

picture CrystalView Mini USB CATx Extender • VGA/USB
Audio/Serial • 150'
VGA 1600×1200
1280×1024
100'30m
150'45m
USB USB 1.1 Option Option Option   datasheet

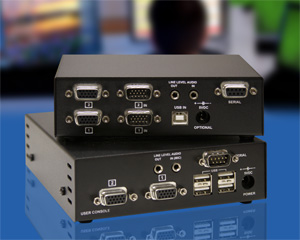

picture CrystalView Plus USB CATx Extender • VGA/USB/Audio/
Serial+Skew • 1000'
VGA 1600×1200
1280×1024
650'200m
1,000'300m
USB USB 1.1 Option Option Option datasheet

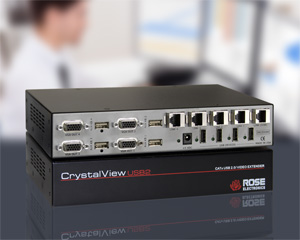

picture CrystalView USB2 Multi-head CATx Extender
VGA/Audio/USB 2.0
VGA 1920×1200 330'100mUSB
PS/2
USB 2.0 Option     Option datasheet

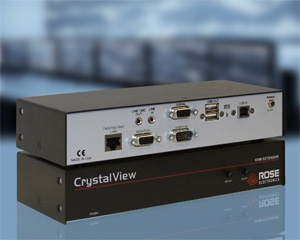

picture CrystalView CAT5 CATx Extender • VGA/USB/PS2/
Audio/Serial • 1000'
VGA 1600×1200
1024×768
200'60m
1,000'300m
USB
PS/2
  Option Option Option   datasheet

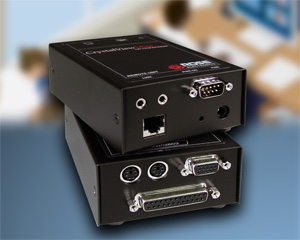

picture CrystalView Mini CATx Extender • VGA/PS2/
Audio/Serial • 150'
VGA 1600×1200
1280×1024
100'30m
150'45m
PS/2   Option Option Option   datasheet

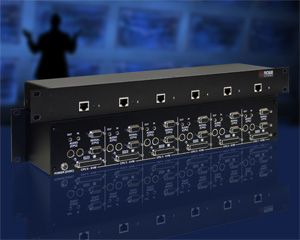

picture CrystalView CAT5 Rack VGA CATx Extenders
Rack mount • 1000'
VGA 1600×1200
1280×1024
650'200m
1,000'300m
USB
PS/2
  Option Option Option   datasheet

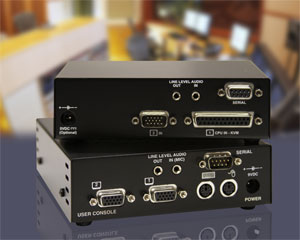

picture CrystalView Plus CATx Extender • VGA/PS2/Audio/
Serial+Skew • 1000'
VGA 1600×1200
1280×1024
650'200m
1,000'300m
PS2   Option Option Option Option datasheet

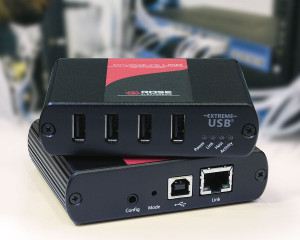

picture CrystalLink USB-3-2-1 CATx USB3.1 CATx Extender • USB2.0 • USB1.1
5 Gbps • 330ft (100m) • 4-port hub
None   330'100mUSB 3.1, 3.0, 2.0, 1.1 Via USB Via USB     datasheet
picture CrystalLink USB2.0 CATx USB2.0 CATx Extender
480 Mbps • 330ft (100m) • 4-port hub
None   330'100mUSB 2.0 Via USB Via USB     datasheet

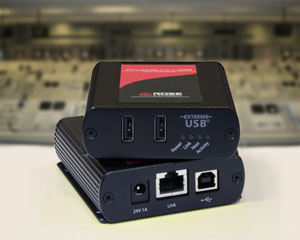

picture CrystalLink USB2.0 CATx Dual Port USB2.0 CATx Extender
480 Mbps • 330ft (100m) • 2-port hub
None   330'100m    Via USB Via USB     datasheet

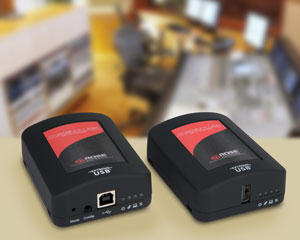

picture CrystalLink USB2.0 CATx Flex Power Mini USB2.0 CATX Extender • Power over cable
480 Mbps • 330ft (100m)
None   330'100m    Via USB Via USB     datasheet

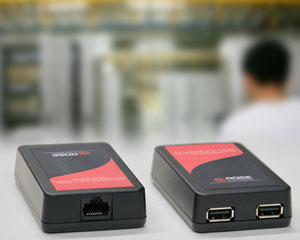

picture CrystalLink USB1.1 CATx Dual Port USB1.1 Extender over CATx • Interface powered
12 Mbps • 130ft (40m) • 2-port hub

None   130'40m    Via USB Via USB     datasheet

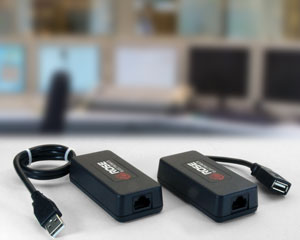

picture CrystalLink USB1.1 CATx USB1.1 Extender over CATx • Interface powered
12 Mbps • 130ft (40m)
None   130'40m    Via USB Via USB     datasheet

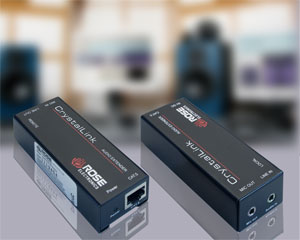

picture CrystalLink Audio Audio Extender over CATx
Stereo audio • Mono mic • 1000ft (300m)
None   1,000'300mNone         datasheet

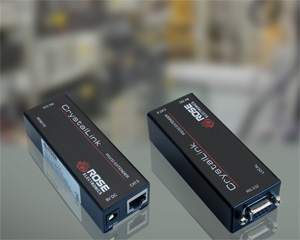

picture CrystalLink Serial Serial Extender over CATx
Baud rates up to 115,200 • Up to 1000ft (300m)
None   1,000'300mNone         datasheet
