CrystalView DVI Fiber

Fiber Extender • DVI/USB/PS2

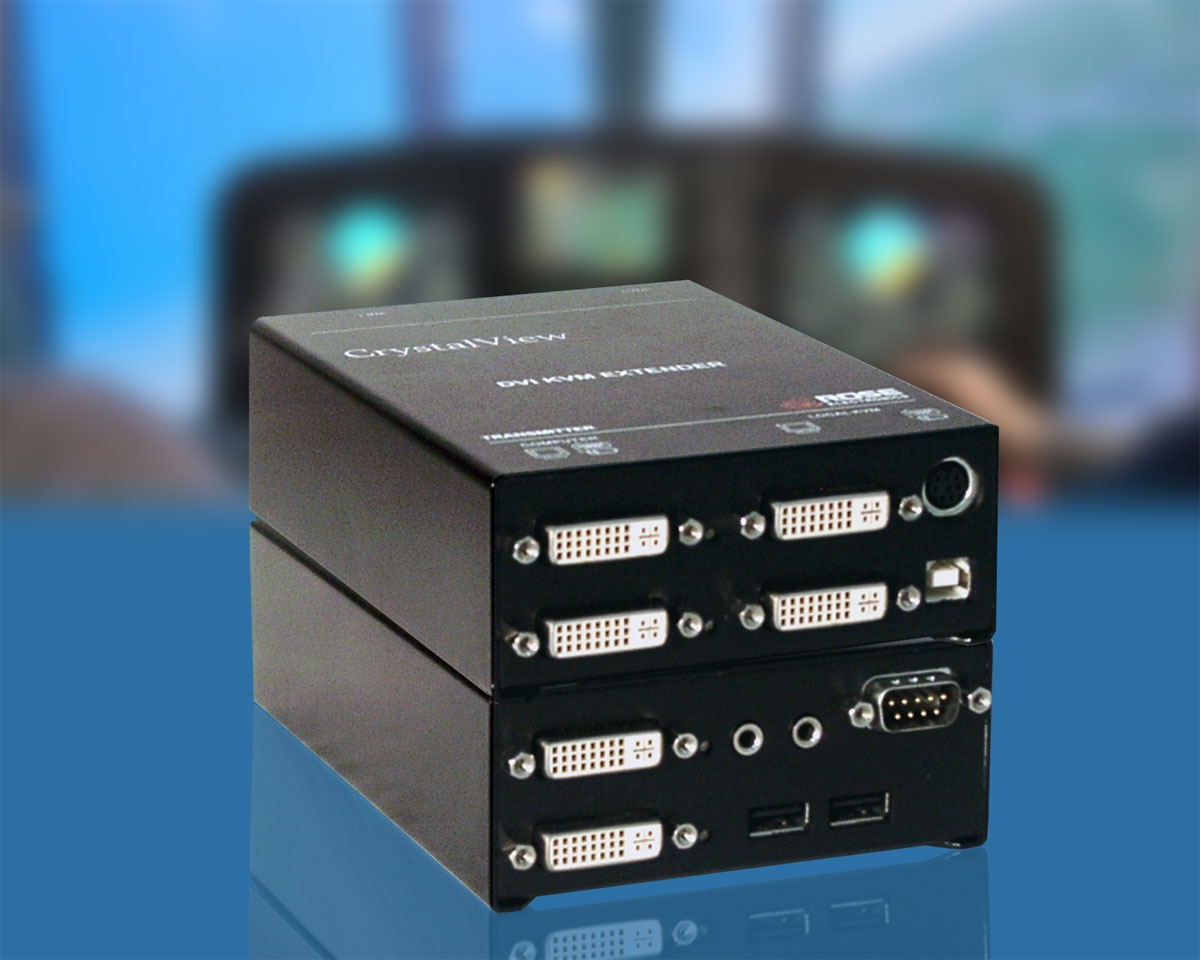

Product Picture

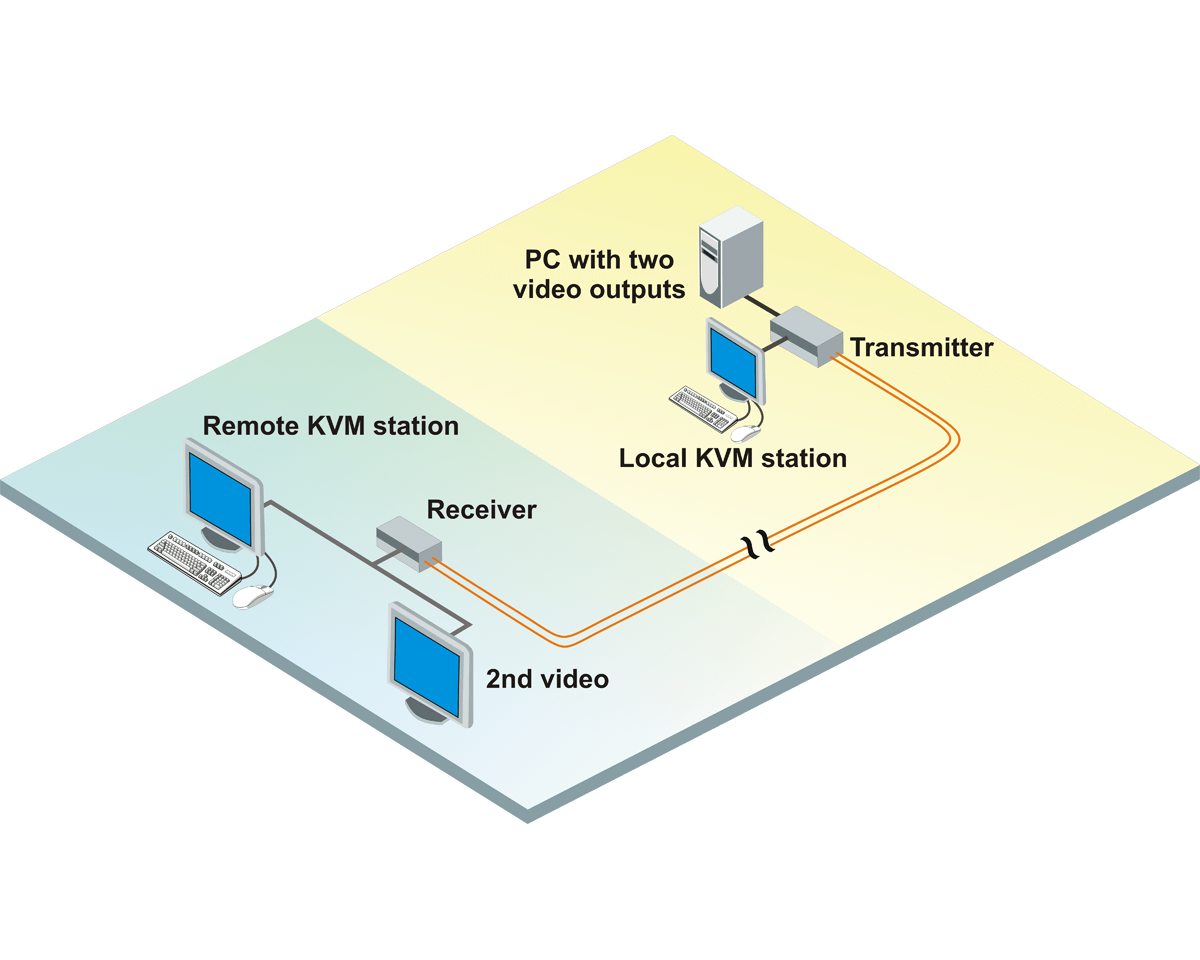

Diagram
  • Extends DVI video keyboard/mouse up to 1,300' (400m) over multi-mode cable and 33,000' (10Km) over single-mode cable
  • Compressed video resolution up to 1920 x 1200
  • PS/2 or USB keyboard/mouse
  • Local port for dual access to computer at either side of extension
  • Optional serial, stereo speakers, and microphone

OVERVIEW

CrystalView DVI Fiber extends KVM stations with DVI resolution video of 1920 x 1200 up to 6 miles away over 9µ single-mode fiber, but will also support multi-mode fiber for shorter distance applications. A flexible professional solution for long distance transmission of KVM signals, CrystalView DVI fiber can support either USB or PS/2 connections, has an optional stereo audio upgrade, and is compatible across all operating systems.

The plug-and-play design ensures easy installation and operation with no adjustments required, and LED indicators are provided to monitor the system status and identify any possible errors. All units are equipped with a local access port for viewing and controlling the system near the transmitter. Single-head and dual-head video models are available, allowing for the connection of one or two monitors at the remote KVM station.

SPECIFICATIONS

Dimensions (W x D x H) 4" x 5.6" x 1.65" (103 x 143 x 42 mm)
Weight 1.3 lb (0.6 kg)
Power 90-240 VAC 50-60Hz External adapter, +5V DC, 2A 10W
Resolution DVI video: 1920 x 1200
Distance CATx: 460' (140m)Multi-mode fiber: (62.5µ): 650' (200m)Multi-mode fiber: (50µ): 1,300' (400m)Multi-mode fiber: (50µ) OM3: 3,300' (1Km)Single-mode fiber: (9µ): 33,000' (10Km)
Connectors Transmitter:DVI video: DVI femaleUSB keyboard/mouse: USB Type BPS/2 keyboard/mouse: Two PS/2 mini-din6FAudio: Two 3.5mm stereo jacksSerial: DB9FLink: RJ45 jack, one per video portReceiver:DVI video: DVI femaleUSB keyboard/mouse: Two USB type A jackPS/2 keyboard/mouse: Two PS/2 mini-din6FAudio: Two 3.5mm stereo jacksSerial: DB9MLink: RJ45 jack, one per video portPower: Barrel jack
Controls Unit power: Red LEDData error: Green LEDLink status: Green LEDVideo status: Green LED
Environment Operating temperature: 41°F–113°F (5°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 0%–80%, non-condensing

PART NUMBERS

Kits (transmitter, receiver, and power supply)
CRK-2DFMPD1D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, PS/2
CRK-2DFMUD1D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, USB
CRK-2DFMPD2D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, PS/2
CRK-2DFMUD2D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, USB
Single-mode Fiber Units
CRK-2DFSPD1D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, PS/2
CRK-2DFSUD1D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Single-head Video, DVI, USB
CRK-2DFSPD2D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, PS/2
CRK-2DFSUD2D CrystalView DVI Fiber, Dual Access Digital Fiber KVM Extender, Dual-head Video, DVI, USB
Fiber DVI KVM Extenders with USB 2.0
CRK-2DFSTD1D CrystalView DVI Fiber, Dual Access Digital Single-mode Fiber KVM Extender, Single-head Video, DVI, USB 2.0
CRK-2DFMTD2D CrystalView DVI Fiber, Dual Access Digital Multi-mode Fiber KVM Extender, Dual-head Video, DVI, USB 2.0
CRK-2DFSTD2D CrystalView DVI Fiber, Dual Access Digital Single-mode Fiber KVM Extender, Dual-head Video, DVI, USB 2.0

DOCUMENTS

DOCUMENT LINK
Datasheet • CrystalView DVI Fiber PDF
Quick Start • CrystalView DVI FiberPDF
Manual • CrystalView DVI Fiber • Installation and Operation PDF
