RackView Sideways 24

KVM Rack Drawer • 24" High Resolution LCD

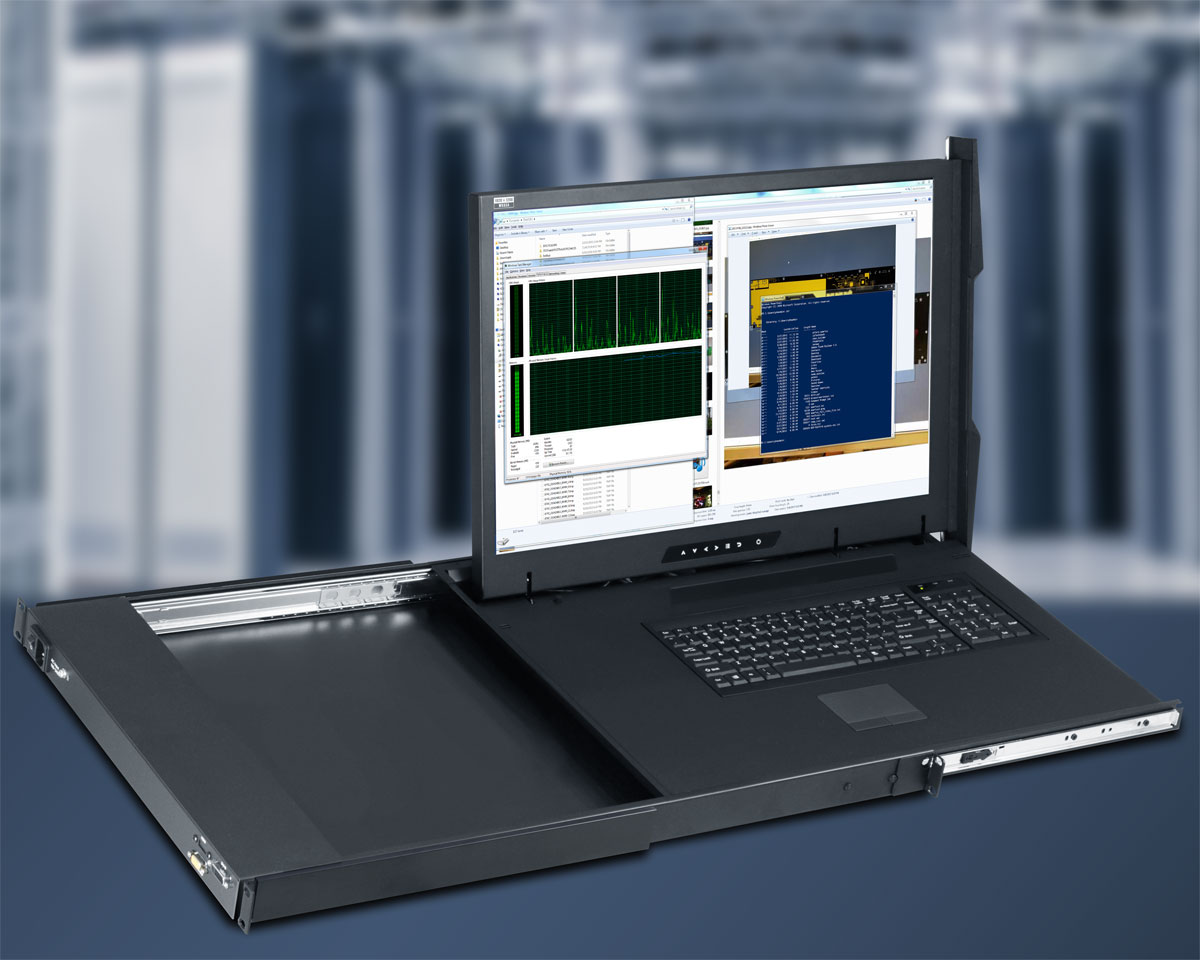

Product Picture

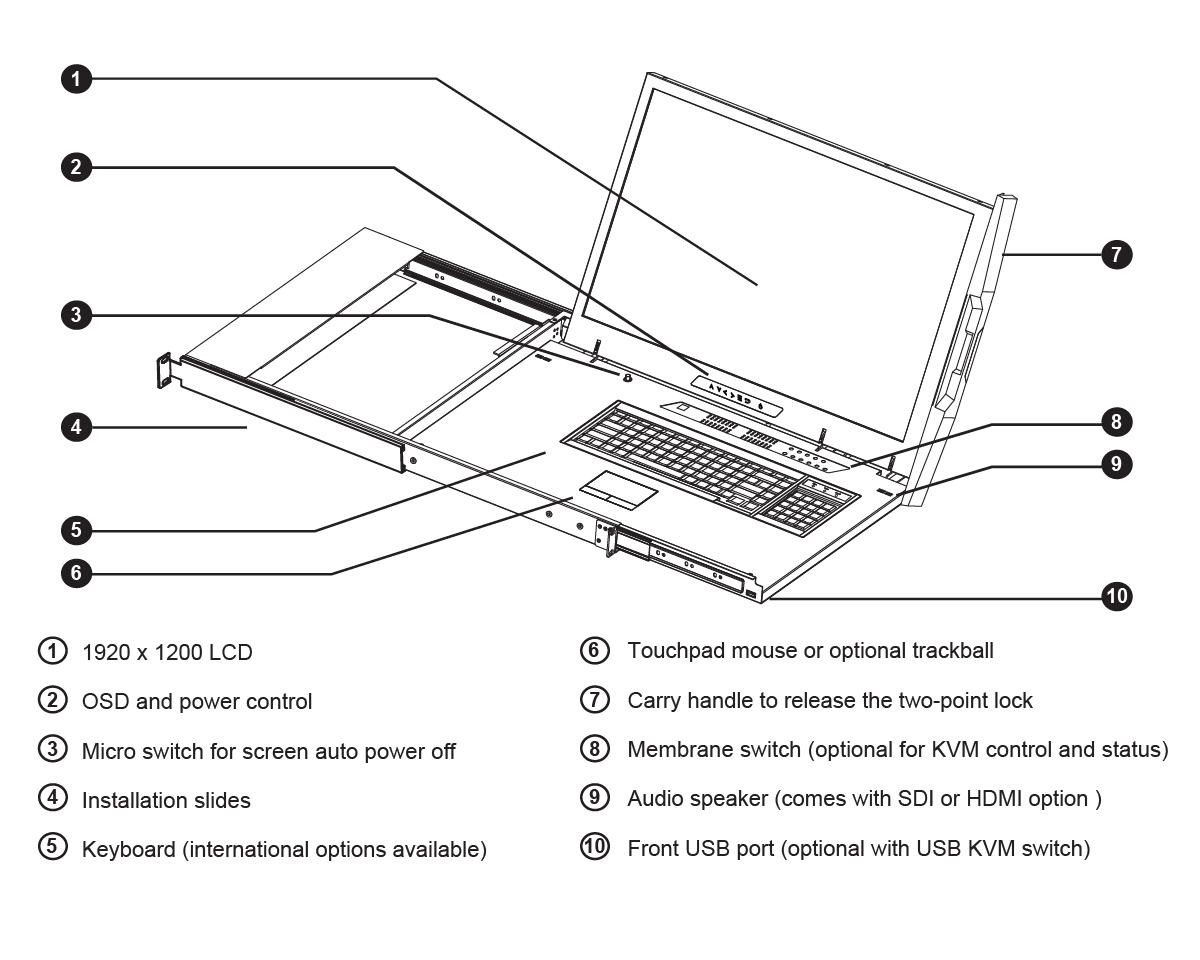

Diagram
Diagram
Diagram
  • Fold-forward 24.1" LCD display, keyboard, and mouse in a 1U sliding rack-drawer package
  • Innovative sideways sliding drawer with left-side or right-side opening
  • Resolution up to 1920×1200
  • Bright active matrix TFT/LCD display
  • Connects directly to a PC or KVM switch using either the DVI/USB or HDMI/USB interface
  • 104-key USB keyboard and touchpad mouse
  • Full size tactile keyboard with separate numeric keypad for typing comfort
  • Power button turns off monitor power when the LCD monitor is folded shut
  • Supports 16 different keyboard languages
  • Molded front handle for easy grip, slide-out, and fold-away
  • The OSD allows for easy adjustment of the input source, brightness, contrast, and color via front panel push-button control
  • PIP function for dual video display

OVERVIEW

You'll be impressed with this Ultra high resolution, 24" LCD widescreen KVM console drawer with full PIP functionality.

This sideways sliding RackView KVM station contains a high quality widescreen LCD monitor capable of resolutions up to 1920×1200, a tactile keyboard, and a touchpad mouse. When fully extended from the rack, the monitor will open to the left or right, depending on the model purchased. The widescreen LCD is suited to displaying 1920x1200 video and many applications that become more productive by displaying them in wide format.

The LED backlighting technology and shutdown on close features help to conserve energy and reduce heating in your power-hungry data center.

The Picture-in-Picture (PiP) function enables the viewing of two video sources simultaneously, normally one at full size and another at a reduced size in a small window. This option works whenever the HDMI or SD-SDI video options are installed.

Installing RackView Widescreen 24" is straightforward. Just follow the instructions in the user manual and screw the provided adjustable mounting rails to your standard 19" rack. Slide the unit into the mounted brackets and secure it.

The RackView + KVM Switch option supports a 12-port DVI/USB switch, conveniently mounted in the rear of the RackView chassis, and includes a quantity of CPU cables for easy installation.

RackView Widescreen 24" will satisfy your needs for a high quality video display. It is perfect for industries requiring high resolution details such as film processing, geophysical imaging, rendering farms, military, medical, or broadcast, but it serves equally well in any data center.

SPECIFICATIONS

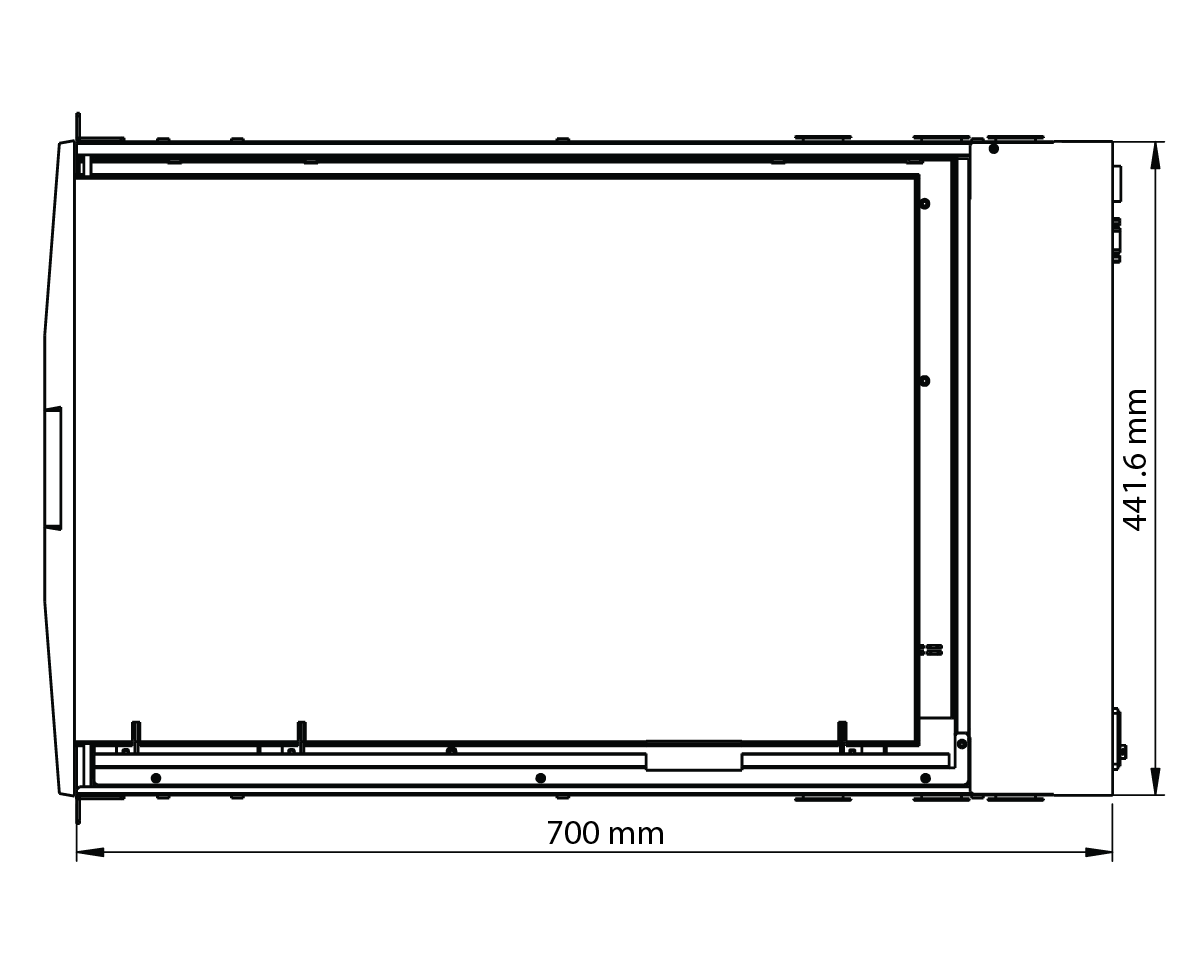

Dimensions 17.4" x 27.6" x 1.73" (441.6 x 700 x 44 mm)
Weight 33.7 lb (15.3 kg)
Resolution 1920 x 1200
Diagonal size 24.1"
Viewing Area 20.39" x 12.76" (518 x 324 mm)
Dot pitch 0.27 mm
Colors 16.7 Million
Contrast ratio 1000:1
Brightness 300 cd/m²
Backlight LED
MTBF 30,000 hours
Response time 14 ms
Power Auto-sensing 100 to 240VAC, 50-60Hz
Watts Max. 40 Watt, Standby 4 Watt
Controls 6 backlit buttons for OSD control1 on/off power button
Connectors DVI female: DVI videoHD15 female: USB keyboard and mouse
Environment Operating temperature: 32°F–131°F (0°C–55°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 20%–90%, non-condensing

PART NUMBERS

KVM Rack Drawers
RV1-CAKVT24L/Kn24" Widescreen LCD, 1920 x 1200, Left Side Opening
RV1-CAKVT24R/Kn24" Widescreen LCD, 1920 x 1200, Right Side Opening
x = L for Left Side Opening, or R for Right Side Opening
RV1-CAKVT24x/KVM-12TDVIRackView, KVM Drawer, 24HD" 1920 x 1200 LCD, with a 12-port DVI/USB switch (6* CPU cables included)
Cables (CPU)
CAB-CMBDVUAC005 Combo(HD15)+DVI-D to DVI-I+USB
Cables (User port)
/K3 DVI-D + VGA-M to DVI-I + (1) USB-A
Options
/nnnDC24/48/125/250 DC power option
/HMHDMI with dual stereo speakers, 2W x 2
/SD 3G/HD/SD-SDI Broadcast video
/KM Trackball Mouse
International KB
(add /nn to part number)
/UK,/DE,/FR,/SP,/IT,/NE,/NO,/RU,/SW,
/PO,/CH,/JP,/KR,/AR,/TU
