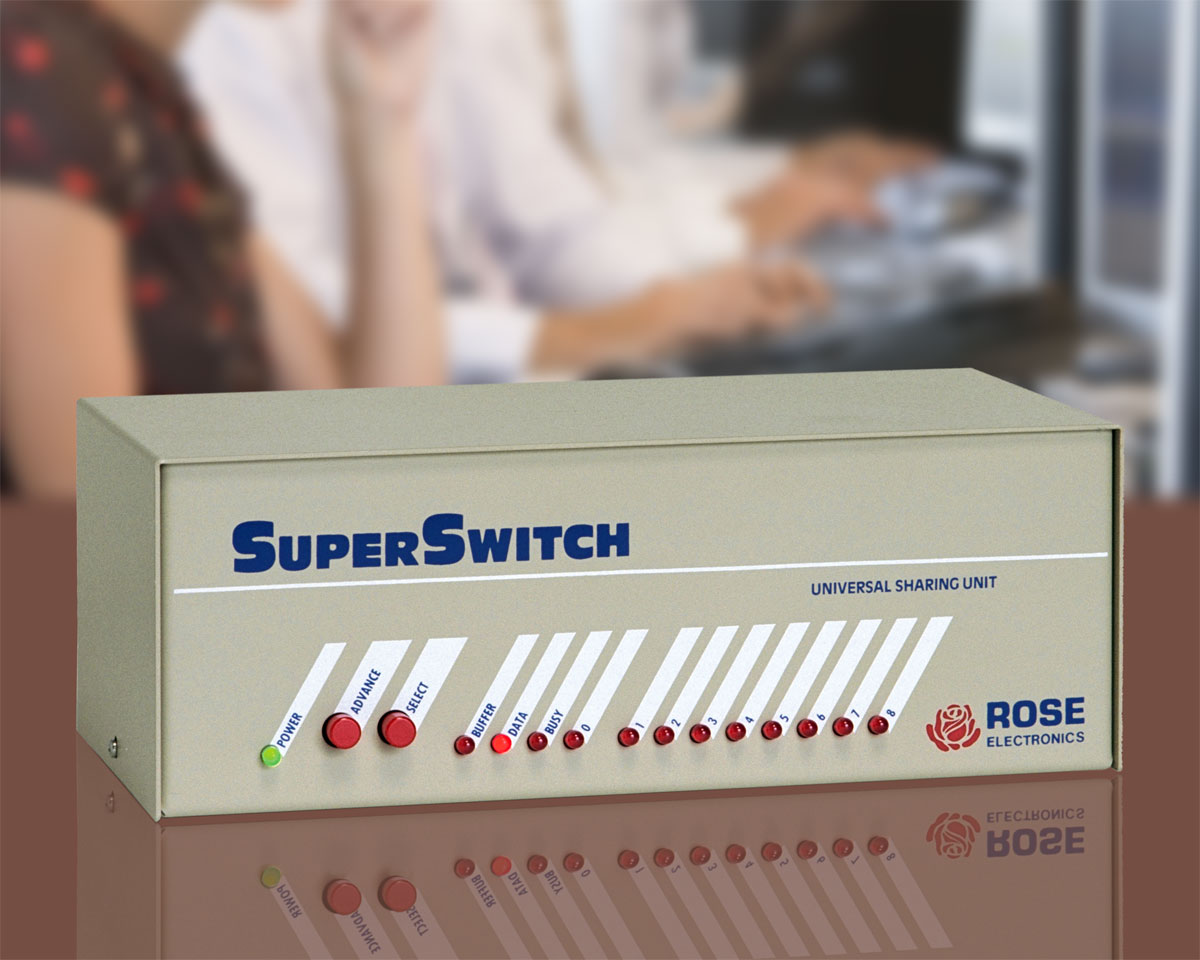

SuperSwitch
Any Port to any Port Switch
- Interconnects up to 9 CPUs and peripherals
- Expandable 64K byte buffer
- 7 serial and 2 parallel port
- Optional 9 serial port model
OVERVIEW
SuperSwitch is a powerful and flexible but affordable microprocessor controlled switch. The unit interconnects up to nine computers and peripherals using common serial and parallel interfaces. SuperSwitch allows several computers or terminals to have shared access to peripheral devices, such as a printer, a plotter, a modem, or host computer. Peripheral device selection is done either automatically by sending data to the default destination or by sending a code to select a new destination. Any port may communicate to any other port. Pairs of ports may communicate simultaneously.
Several features are included to make setup and use simple and easy. Configuration is done with a menu, and there is a status command, which shows all jobs by origin, destination, status, priority, timeout, and buffer used. Each serial port can be programmed for individual baud rate, word size, parity, stop bits, and flow control. Each of the parallel ports can be configured to act as either an input or output.
SPECIFICATIONS
| Dimensions (W x D x H) | 10.5" x 5" x 3.9" (267 x 127 x 99 mm) |
| Weight | 8 lb (3.6 kg) |
| Power | 90-240 VAC 50-60Hz External adapter, 17 VAC CT, 700 ma 10W |
| Distance | RS232: 100 feet (30m)Parallel: 25 feet (7.6m) |
| Connectors | Serial: DB25FParallel: Centronics 36FPower: DIN5 |
| Controls | Unit power: Green LEDPort select: Red LED per portStatus: Red LEDs Buffer, Data, BusyLED control: Advance/select push-buttons |
| Environment | Operating temperature: 32°F–131°F (0°C–55°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing |
PART NUMBERS
| Superswitch | |
|---|---|
| SS-9 | Serial/Parallel: 7 Serial and 2 Parallel Ports, 7 DB25F and 2 Centronics 36F |
| SS-9S | Serial: 9 Serial Ports, DB25F |
| Serial cables | |
| CAB-ATRSnnn | Cable, PC to Switch, DB9F to DB25M |
| CAB-PCRSnnn | Cable, PC to Switch, DB25F to DB25M |
| CAB-PRSnnn | Cable, Serial Printer to Switch, DB25M to DB25M |
| Parallel cables | |
| CAB-IBMPnnn | Cable, PC to Switch Parallel Cable, DB25M-Centronics C36M |
| CAB-PMMnnn | Cable, Switch to Printer Parallel Cable, Centronics C36 (M-M) |
| CAB-IBMPnnn/SC | SuperCable, PC to Switch Extended Distance Parallel Cable, DB25M-Centronics C36M |
| CAB-SMMnnn/SC | SuperCable, PC to Switch Extended Distance Parallel Cable, DB25 (M-M) |
| Accessories | |
| RM-MP/xx | Rack Mount kit, 3U Chassis, (xx = 19", 23", or 24") |
| nnn = cable length in feet | |
