UltraConsole

1×4, 1×8, 1×16 KVM Switch • VGA • USB • PS/2 • Serial • OSD

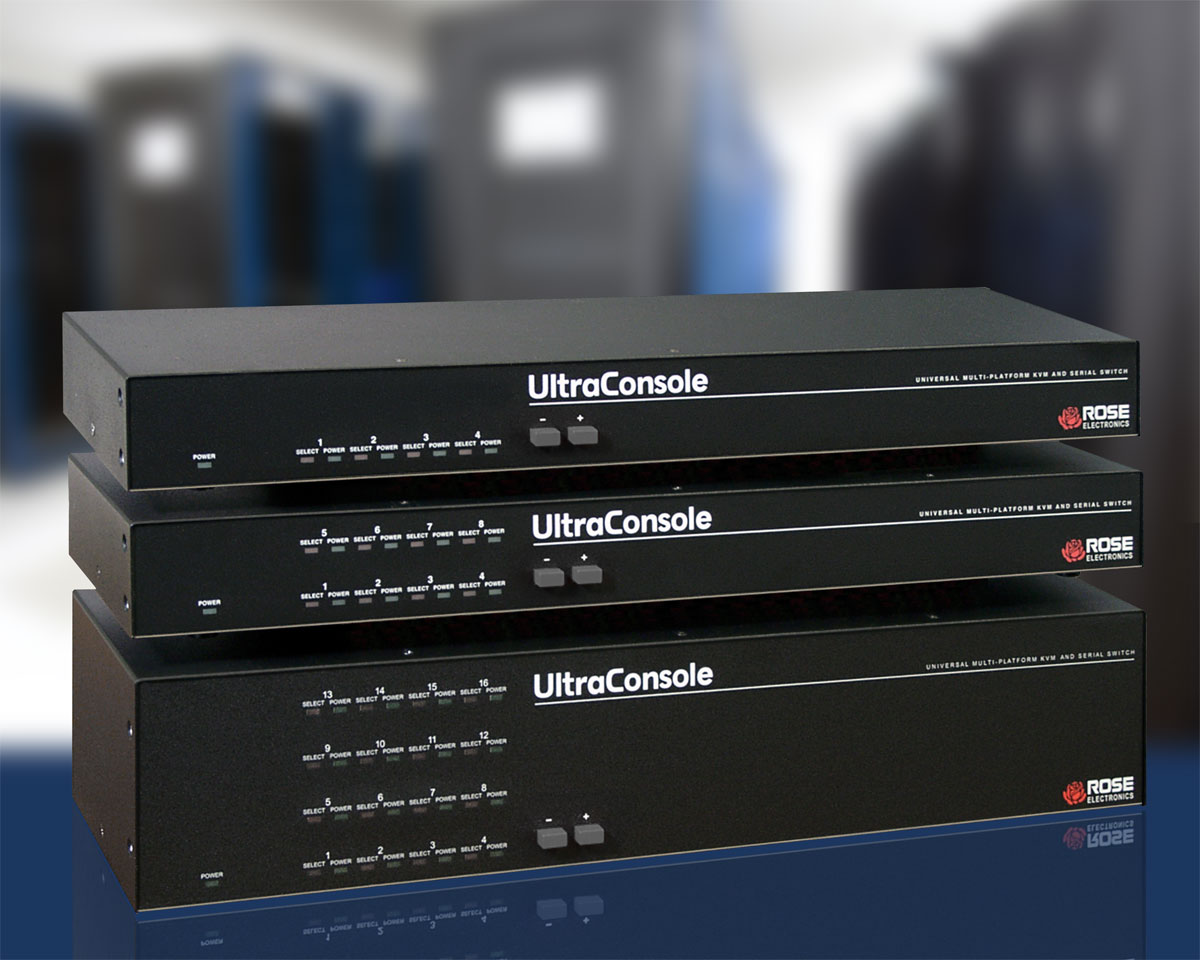

Product Picture
Diagram
  • Control PCs, Sun, UNIX, Linux, USB, and serial devices from a single station
  • Video resolution up to 1920x1200
  • Connect up to 256 computers
  • VT220 emulation for connecting to serial device
  • Switching can be done from front panel, serial port, hot-key, or OSD
  • Plug-in expansion cards to link units together to add more computers
  • Units can be linked together to form multi-head video
  • On-screen menu for configuration, operation, and control
  • Multi-lingual menu (English, French, German, Spanish, Italian, Portuguese)
  • Security system with user ID, password and profile prevents unauthorized configuration and controls computer access
  • Status screen displays inter-unit connections, communication, computer power, and other system information
  • Flash memory technology for free firmware upgrades for product enhancements and new software features
  • Rack mount kits available in 19", 23", and 24’ sizes
  • Made in USA

OVERVIEW

UltraConsole is a single user KVM switch that allows a central user station to connect to four, eight, or sixteen computers per chassis, and is expandable up to as many as 1,000 computers or serial devices by cascading additional units.

UltraConsole series is produced in 1 x 4, 1 x 8, and 1 x 16 models. Units easily connect together with bus cables to make a seamless and truly scalable KVM solution. The modular architecture uses plug-in expansion cards available with different form factors, making for simple expansion and giving it the flexibility needed to conform to almost any system.

The advanced design of UltraConsole uses networking communication technology to reduce cost, eliminate single points of failure, and increase reliability. The on-screen menus and instructions make configuring, monitoring, and installation easy. Use the on-screen menus to name computers and select computers, view connections, assign users, configure system security, and perform other operations.

UltraConsole provides serial support to access computers, routers, Ethernet hubs, UNIX devices and more. It can perform as a "VT100/VT220" terminal emulator with an eight-page scroll buffer. Local monitor connection, security, flash memory, system status, and many other features ensure that UltraConsole will streamline your data center or server room and provide a centralized access point for your system.

SPECIFICATIONS

Dimensions
(W x D x H)
4/8 port: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) 16 port: 16.7" x 4.85" x 3.5" (424 x 123 x 89 mm)
Weight 4/8 port: 4 lb (1.8 kg)16 port: 8 lb (3.6 kg)
Power 90-240 VAC 50-60Hz 4/8 port: 20W16 port: 30W
Resolution 4/8 port: VGA: 1920 x 120016 port: VGA: 1280 x 1024
Distance CPU/KVM: 25 feet (7.6m)Expansion: Up to 50-250 feet (15-76 m)
Connectors Power: 8-16 port: IEC320, 4-port: DIN5CPU/KVM: DB25FExpansion: DB15M/FRS232: RJ 6-conductor
Controls Computer selection: OSD, front panel, hot-key, serial portUnit Power: Green LEDCPU power: Green LED per portCPU select: Red LED per portPrev computer: Push-button -Next computer: Push-button +
Environment Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing

PART NUMBERS

Product Part NumberDescription
UC1-1X4U1 User, 4 CPU's, Multi-platform, Primary User
UC1-1X8U1 User, 8 CPU's, Multi-platform, Primary User
UC1-1X16U1 User, 16 CPU's, Multi-platform, Primary User
UC2-1X4U2 Users, 4 CPU's, Multi-platform, Secondary User
UC2-1X8U2 Users, 8 CPU's, Multi-platform, Secondary User
UC2-1X16U2 Users, 16 CPU's, Multi-platform, Secondary User
/EExpansion Card
UMC-EXP2Expansion Card

DOCUMENTS

DOCUMENT LINK
Datasheet • UltraConsole PDF
Quick Start • UltraConsolePDF
Manual • UltraConsole • Installation and Operation PDF
