UltraMatrix AV VGA 16

Audio/VGA Matrix Switch • 16×16

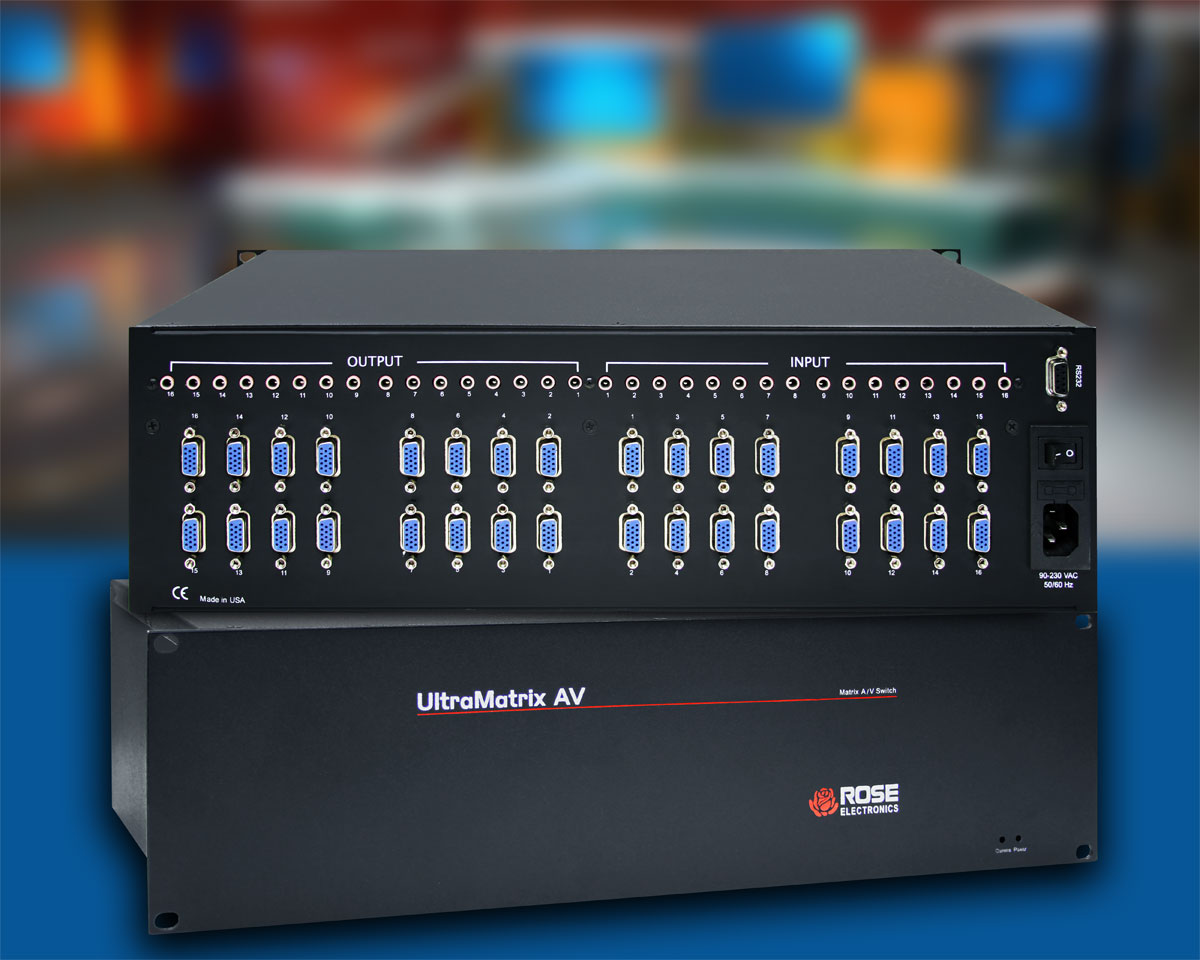

Product Picture
  • Available models:
    • 16 video/audio in to 16 video/audio out
    • 16 video in to 32 video out
  • Supports resolutions up to 1920×1200
  • Select and view connection source and destination from front panel
  • Switch from front panel or RS232 port using control software provided with unit
  • Extends the monitor and speakers up to 50 feet from the unit
  • Supports all video formats (VGA / SVGA / XGA / RGBHV / SOG)
  • Video bandwidth of 200MHz
  • Save and playback up to 50 different macro routing sequences
  • Add additional units to increase the number of monitors (up to 64)
  • Windows based software control for quick and easy switching
  • Optional Ethernet interface for control over network

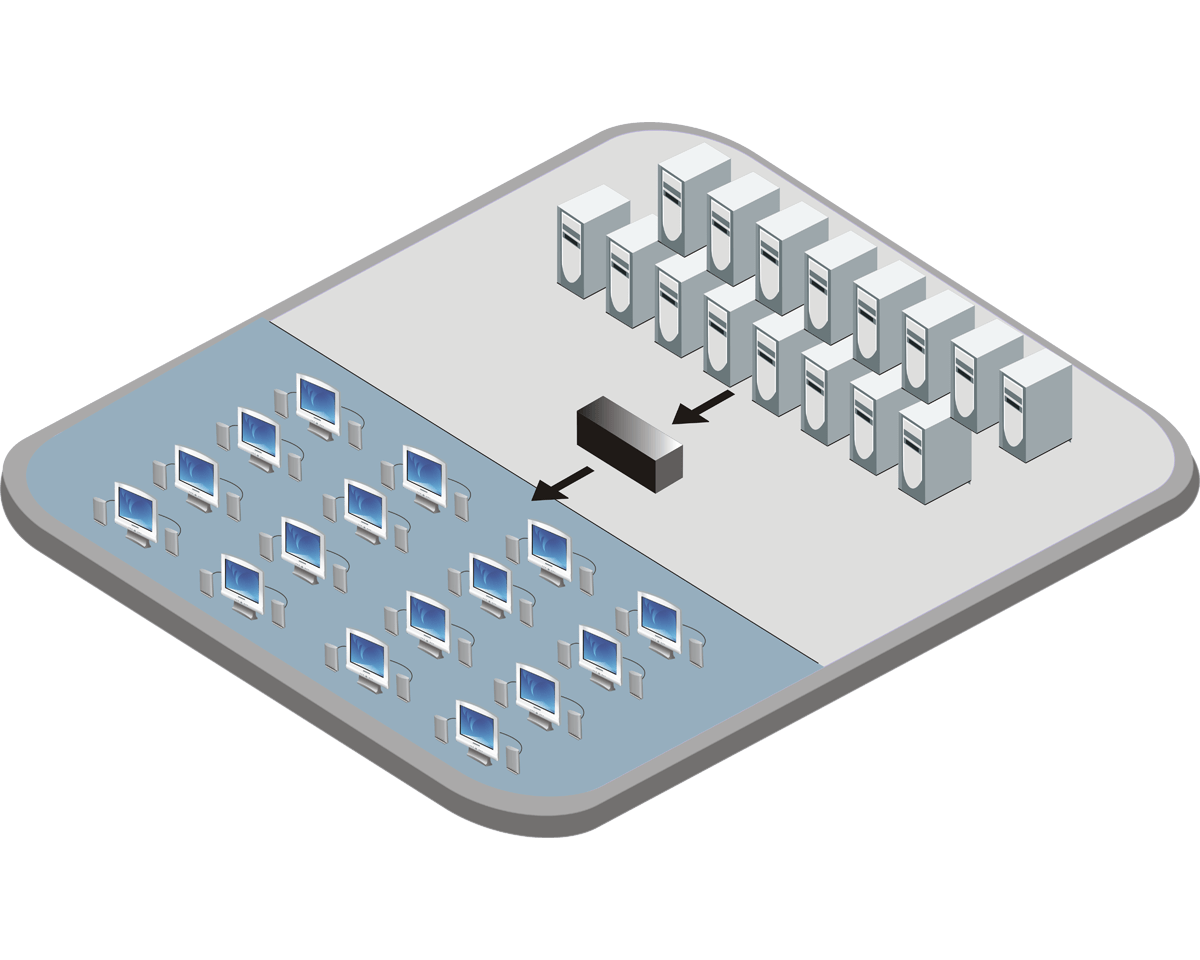

Designed especially for control rooms, audio/video presentations, security centers and many other digital media applications.

Easily connect any audio/video source to any audio/video output using the switching matrix software.

Record your video and audio switching scheme and save it in a macro for on demand use.

Display the switching matrix panel and where the source and destination cross, click on that point and the video and audio are instantly switched.


Dimensions (W x D x H) 19" x 11.25" x 5.24" (482 x 286 x 133 mm)
Weight 20 lb (9.1 kg)
Power 90-230 VAC 50-60Hz External adapter, +5V DC, 3A 15W
Resolution VGA: 1920 x 1200
Distance Video: 25 feet (7.6m)
Connectors Video: VGA HD15Audio: 3.5 mm stereo jackSerial: DB9FPower: IEC320 receptacle
Controls Unit power: Green LED
Environment Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing


Product Part Number Description
UMA-08VX08V UltraMatrix AV, 8x8 AV Matrix Switch, VGA
UMA-08VX08V-A1 UltraMatrix AV, 8x8 AV Matrix Switch, VGA + 1 directional stereo audio
UMA-16VX16V UltraMatrix AV, 16x16 AV Matrix Switch, VGA
UMA-16VX16V-A1 UltraMatrix AV, 16x16 AV Matrix Switch, VGA + 1 directional stereo audio


Datasheet • UltraMatrix AV VGA 16 PDF
Quick Start • UltraMatrix AV VGA 16PDF
Manual • UltraMatrix AV VGA 16 • Installation and Operation PDF
