Translator VGA to HDMI

Converts VGA Video In to HDMI Video Out

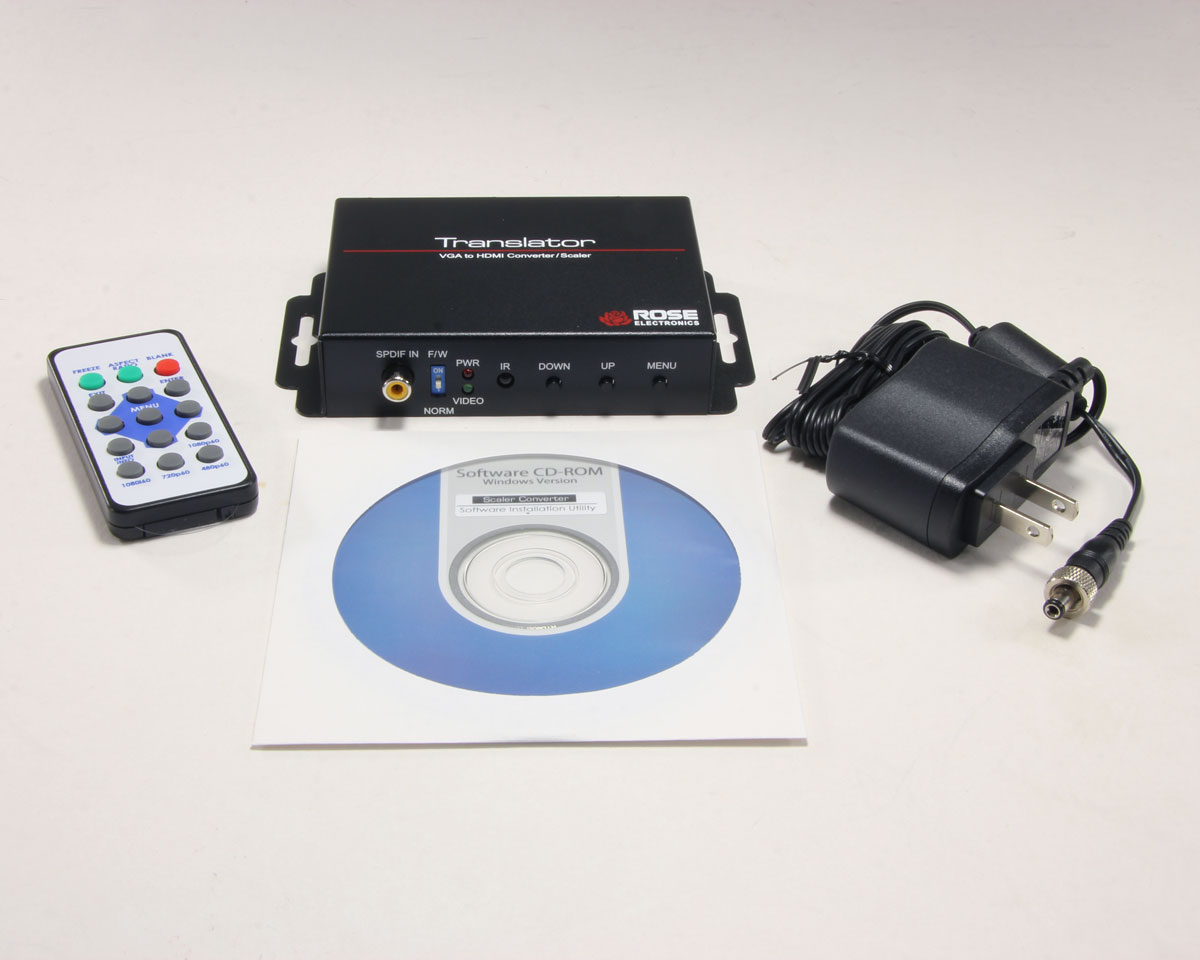

Product Picture
Product Picture

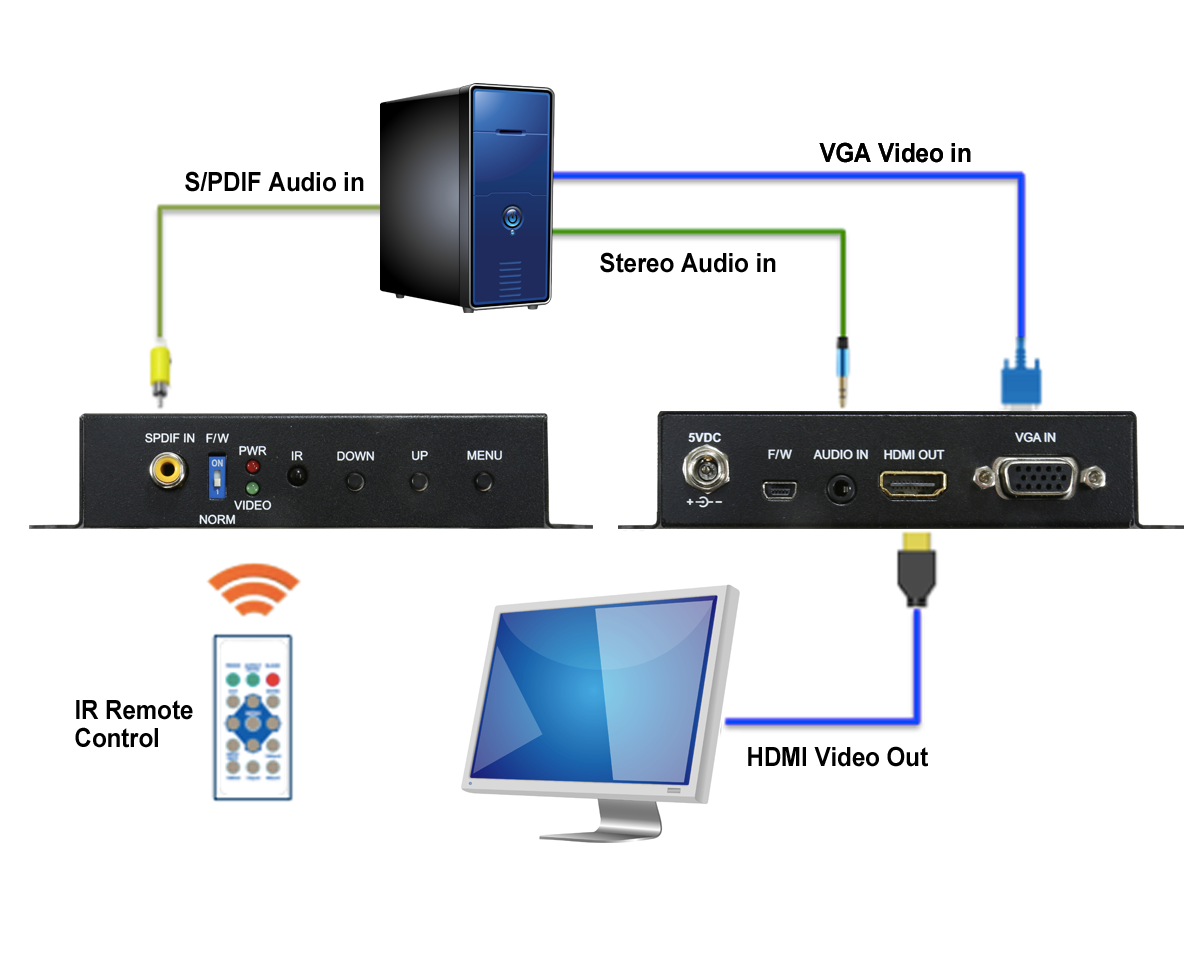

Diagram
  • Convert and scale VGA video to HDMI
  • Intuitive OSD control interface, accessible with either IR control or Mini USB control
  • Output modes are RGB, YCbCr444, YCbCr442, selectable as 480p, 720p, 1080i and 1080p
  • Maximum pixel rate is 165MHz
  • Stereo and S/PDIF audio input is converted to HDMI audio output
  • De-interlacer supported
  • Supports noise reduction and video enhancement
  • Video adjustments including under/over scan, aspect ratio and H/V mirror
  • Active video area adjustment supported
  • Firmware upgradeable via mini USB port
  • Image control using adjustable contrast, brightness, saturation, hue, color tone, sharpness and edge enhancement
  • Utilizes standard length VGA, audio and HDMI cables
  • Mounting brackets included for easy installation, shelf or wall mountable
  • Connect to DVI monitors using HDMI/DVI adapter

OVERVIEW

The VGA to HDMI Translator offers an easy and instant approach for converting analog PC video (VGA) with either digital audio (S/PDIF) or analog stereo audio to digital HDMI. VGA devices such as a PC with S/PDIF or analog stereo audio can easily connect to your HDMI TV.

The convenience of this multi-featured product and the ease-of-use enables presentations, demonstrations, home theatre and digital signage platforms to be quickly and easily installed.

Once connected using standard audio and video cables, the Translator is simple to configure and operate using either the hand-held IR remote or by connecting a PC via the mini USB port and operating the OSD menu. If the output monitor has a DVI interface, just use an HDMI-to-DVI adapter cable to convert the interface.

SPECIFICATIONS

Dimensions (W x D x H) 3.6" x 3.3" x 1.1" (92 x 83 x 28 mm)
Weight 0.55 lb (0.25 kg)
Power 100-240 VAC, 50-60Hz External adapter, 5V, 2A 10W
Resolution 1920 x 1080
Distance Video: 25 feet (7.6m)
Connectors Video in: 1x HD15 maleAudio in: 1x 3.5mm jackAudio in: 1x S/PDIF CoaxVideo out: HDMI femaleFW update: Mini-USB-BPower: Barrel jack
Controls Unit power: Red LEDSignal present: Green LED
Environment Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 20%–90%, non-condensing

PART NUMBERS

Product Part Number Description
CNV-VGAAHM/SC Translator, VGA to HDMI Converter
CAB-HDMIMM006 HDMI male to male cable, 6ft (2.0m)
CAB-HDMIMM010 HDMI male to male cable, 10ft (3.0m)
CAB-CXVMF005 VGA male to female cable, 5ft (1.8m)
CAB-CXVMF010 VGA male to female cable, 10ft (3.0m)
CAB-SPMM005 Stereo audio cable, 5ft (1.8m)
CAB-SPMM010 Stereo audio cable, 10ft (3.0m)
