VideoSplitter VGA CAT5

VGA/Audio Splitter over CATx

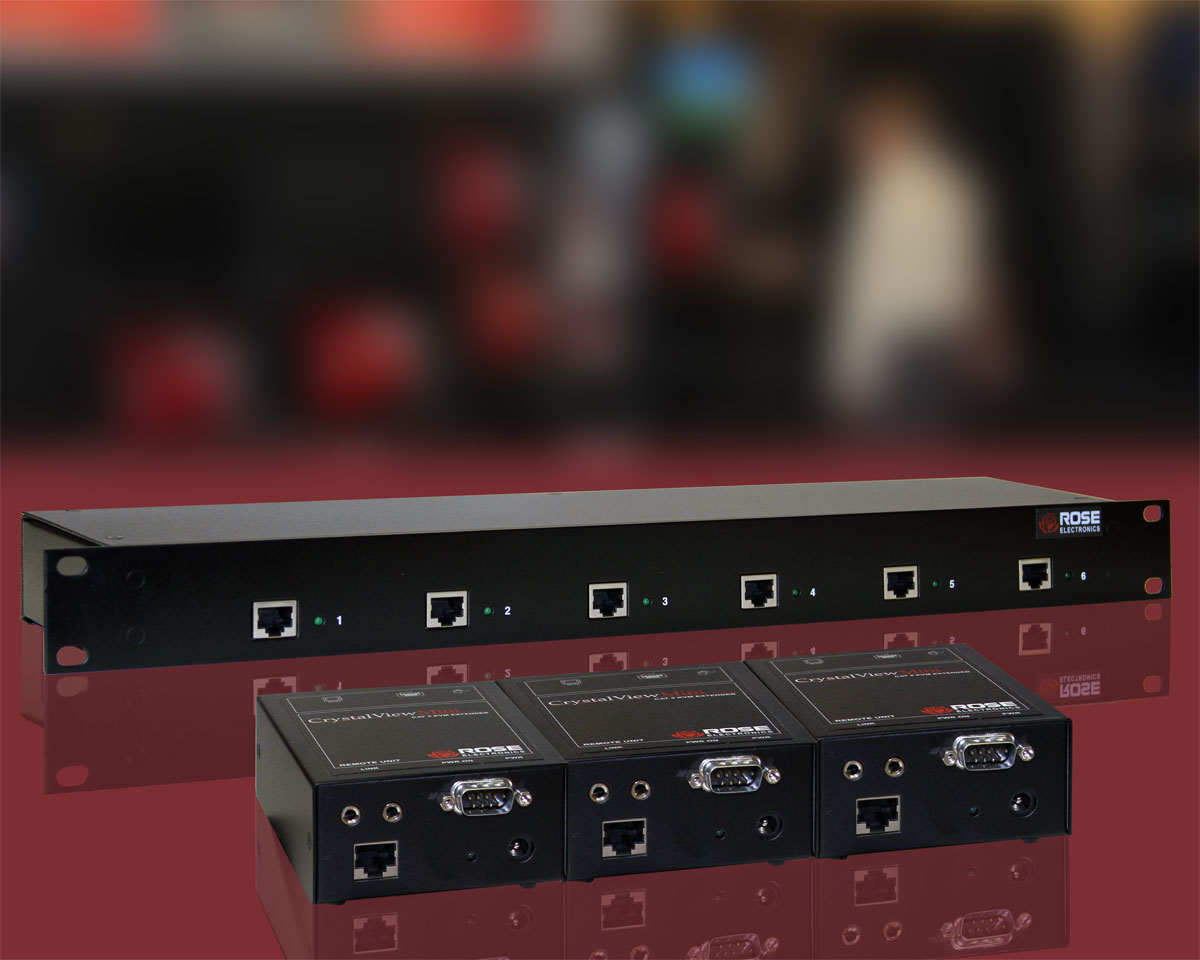

Product Picture

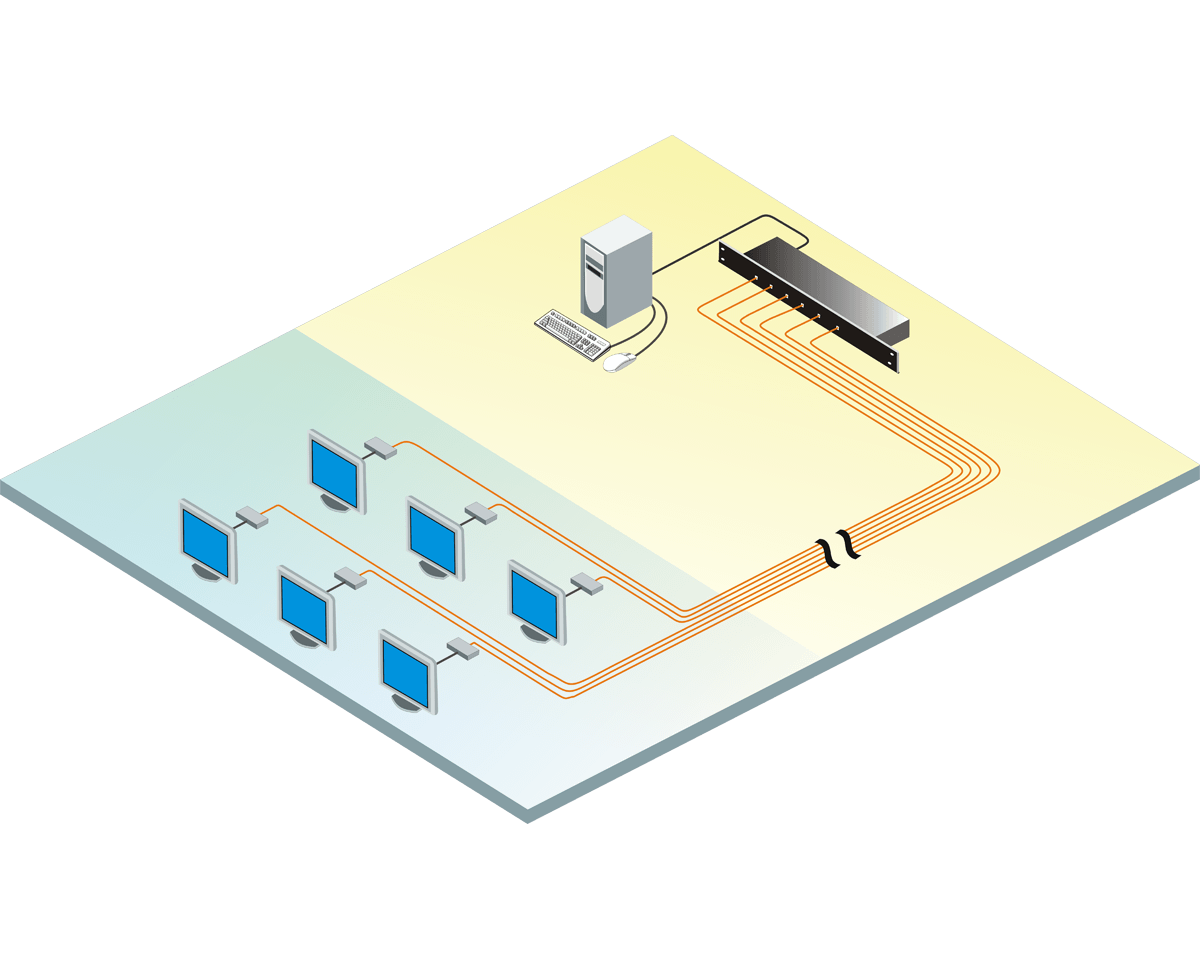

Diagram
  • Splits, amplifies, and extends video from a single source to 6 or 12 monitors simultaneously over CAT5 cable
  • Video resolution up to 1920 x1200
  • Each remote monitor can be up to 1,000 feet away using industry standard CAT5 UTP cable
  • Optional audio and serial
  • Provides Audio, HDCP and DDC support

OVERVIEW

VideoSplitter CAT5 consolidates an extender and a video splitter into a single unit that will accept a single video source and extend it to multiple remote monitors. The product centralizes generation of the video source and then broadcasts it to a number of locations, giving it a wide range of uses. An optional upgrade will also allow audio and serial to be split and extended. VideoSplitter CAT5 supports extension up to 1,000 feet over CAT5 UTP cable with crystal clear resolutions of up to 1920 x 1200. Each VideoSplitter CAT5 connects to a selection of CrystalView remote units, and is plug-and-play, minimizing complications with setup and installation.

VideoSplitter CAT5 comes in 3 models:

  • 6-port video
  • 6-port video, audio, and serial
  • 12-port video

SPECIFICATIONS

Dimensions
(W x D x H)
1U: 17" x 4.2" x 1.75" (432 x 107 x 44.5 mm) 2U: 17" x 4.2" x 3.5" (432 x 107 x 89 mm)
Weight 1U: 4 lb (1.8 kg)2U: 5.5 lb (2.5 kg)
Power 90-240 VAC 50-60Hz External adapter, +5V DC, 2A 1U: 5W2U: 10W
Resolution VGA: 1600 x 1200
Distance Using CrystalView Plus receiver1600 x1200: 650' (200m)1280 x 1024: 1,000' (300m)Using CrystalView CAT5 receiver1600 x 1200: 200' (60m)1024 x 768: 1,000' (300m)Using CrystalView Mini receiver:1600 x 1200: 100' (30m)1280 x 1024: 150' (45m)
Connectors CPU in: DB25FLink: RJ45Headphone: 3.5 mm stereo jackMicrophone: 3.5 mm mono jackSerial - DB9
Controls Link active: Green LED per port
Environment Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–85%, non-condensing

PART NUMBERS

Product Part Number Description
CRV-6SLP-VS/SW 1 Video in to 6 CATx video extender ports
CRV-6SLP-VS/SW/AUD 1 Video in to 6 CATx video/audio/serial extender ports
CRV-12SLP-VS/SW 1 Video in to 12 CATx video extender ports
CAB-D9F6XD9M001 Cable for serial suport
CRV-MR Mini PS/2 CATx Extender Remote Unit
CRV-R PS/2 KVM CAT5 Extender Remote Unit
CRV-R1V Plus PS/2 KVM CATx Extender Remote Unit
CAB-D9F6XD9M001 Cable for serial suport
/AUD suffix for audio and serial option

DOCUMENTS

DOCUMENT LINK
Datasheet • VideoSplitter VGA CAT5 PDF
Manual • VideoSplitter VGA CAT5 • Installation and Operation PDF
