VideoSplitter HDMI 4K60

HDMI 4K60 2×1, 4×1, 8×1 Video Splitter

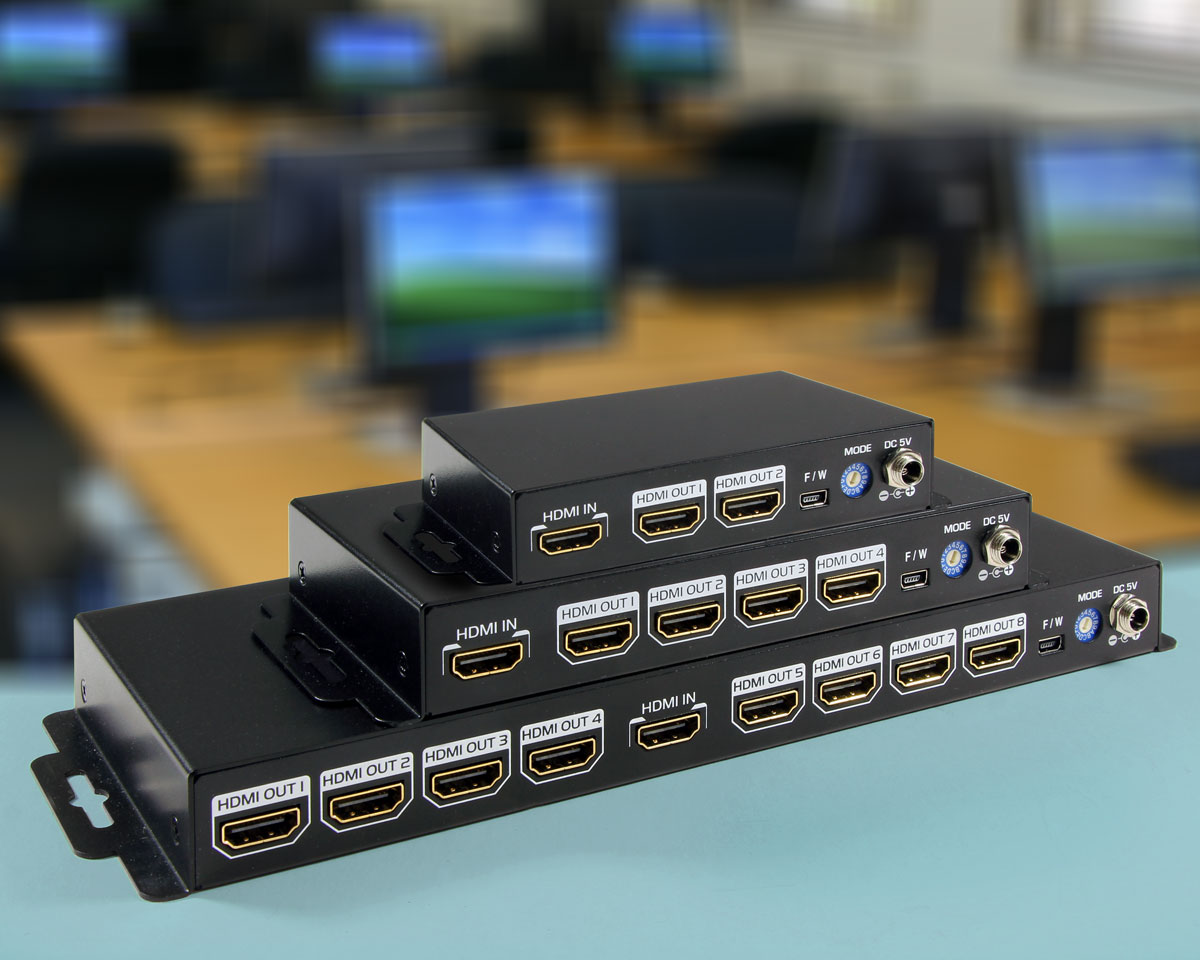

Product Picture

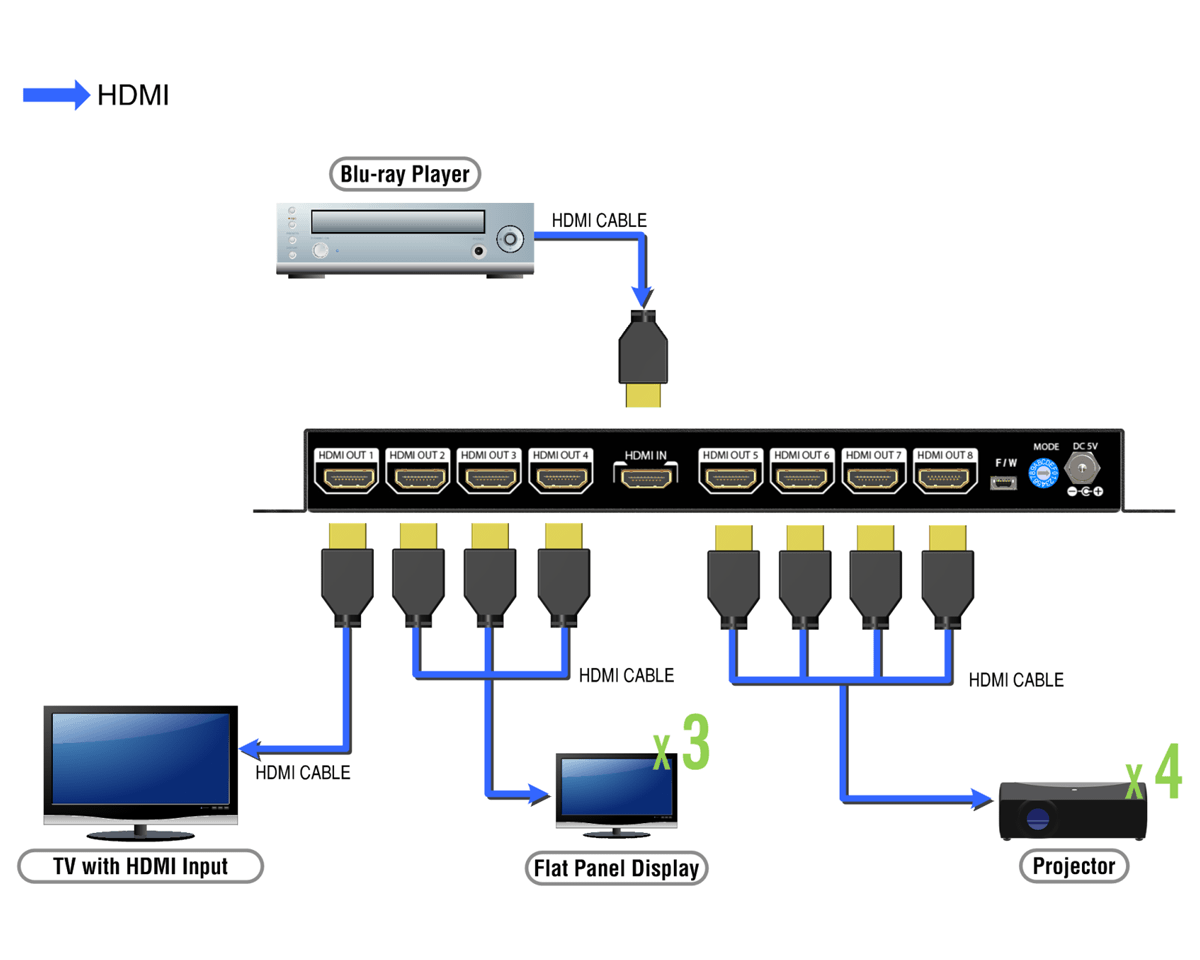

Diagram
  • Distributes a single HDMI video signal to multiple displays
  • Three models with either 2, 4, or 8 HDMI outputs
  • HDMI 2.0a compliant
  • HDCP 2.2 and 1.4 compliant
  • Video capability 4K2K@60 4:4:4 8bits and HDR 4K2K@60 4:2:0 10bit
  • Video bandwidth: 18Gbps
  • Video supports all 3D modes, xvYCC, x.v.Color, and Deep Color
  • Audio support includes Dolby Digital, DTS-HD, and Dolby TrueHD audio
  • Rotary dial to setup built-in EDID or EDID learning from display
  • Mini-USB connector to update firmware
  • Cascading feature to increase number of output displays
  • Built-in surface mounting bracket

OVERVIEW

This versatile 4/8-port HDMI Video Splitter is ideal for use in classrooms, boardrooms, trade shows and exhibition displays, in fact anywhere where you need to easily distribute a 4K video signal across multiple monitors.

The product supports HDMI video up to 4K@60 frames per second, and delivers up to 10.2Gbps video bandwidth. It's very simple to set-up and operate, just connect the HDMI input/output cables and power on the Video Splitter for a stunning HD video presentation.

SPECIFICATIONS

Dimensions
(W x D x H)
8-port: 9.6" x 3.9" x 1" (243 x 98 x 25 mm) 4-port: 6.1" x 3.3" x 1" (154 x 83 x 25 mm) 2-port: 4.4" x 2.5" x 1" (113 x 62.5 x 25 mm)
Weight 8-port: 0.4 lb (0.88 kg)4-port: 0.3 lb (0.583 kg)2-port: 0.2 lb (0.463 kg)
Power 90-240 VAC 50-60Hz External adapter, +5VDC8-port/4-port: 4A2-port: 2A 8-port: 20W4-port: 15W2-port: 10W
Resolution HDMI 2.0a compliantHDMI: 3840x2160: 24-bit RGB 4:4:4HDMI: 3840x2160: 36-bit YCbCr 4:2:0
Distance Video: 10 feet (3m)
Connectors Video Input: HDMI Type A femaleVideo Output: 2, 4, or 8 HDMI Type A FemalePower: Screw-in barrel jack
Controls Power: Red LEDVideo ready: Green LEDRotary Dial: EDID mode
Environment Operating temperature: 32°F–104°F (0°C–40°C)Storage temperature: -4°F–140°F (-20°C–60°C)Relative humidity: 20%–90%, non-condensing

PART NUMBERS

Product Part Number Description
VSP-1x2HDMI/4K 2-port HDMI VideoSplitter
VSP-1x4HDMI/4K 4-port HDMI VideoSplitter
VSP-1x8HDMI/4K 8-port HDMI VideoSplitter
Cables
CAB-HDMIMM006 HDMI (M/M) 6ft (2.0m) extension cable
CAB-HDMIMM010 HDMI (M/M) 10ft (3.0m) extension cable

DOCUMENTS

DOCUMENT LINK
Datasheet • VideoSplitter HDMI 4K60 PDF
Manual • VideoSplitter HDMI 4K60 • Installation and Operation PDF
