ViewLink CATx

Miniature CATx Extender • VGA • USB • PS2+Skew • 1000'

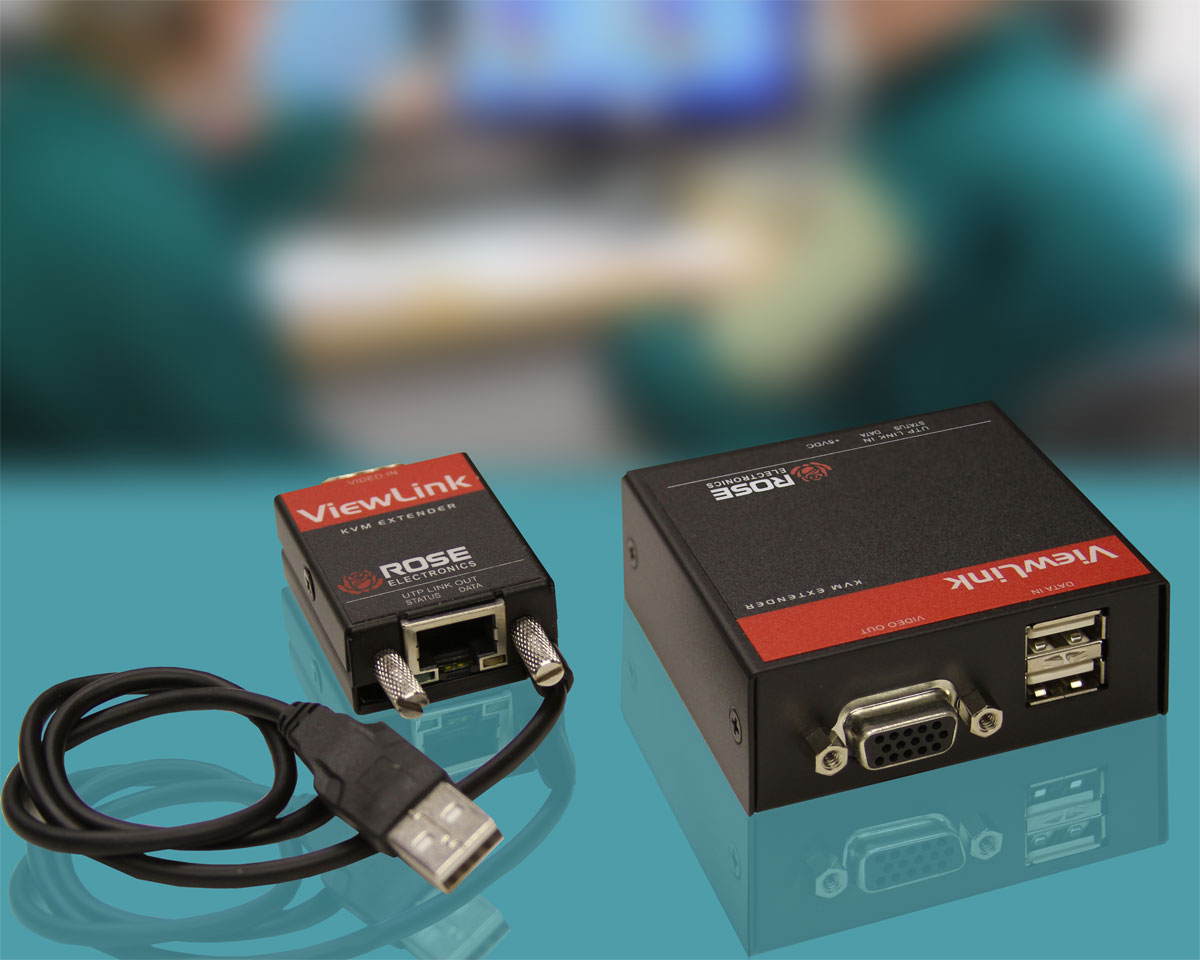

Product Picture
Diagram
  • ViewLink video resolution up to 1920 x 1200 at 300' (90m), 1024 x 768 at 1,000' (300m)
  • Either USB or PS/2 with optional touch screen feature, also available as video only
  • Automatic equalization provides clear video over any type of CATx cable
  • Optional automated video skew adjustments adjusts for different pair lengths in cable

OVERVIEW

ViewLink CATx KVM extender is an affordable solution to access and control computers from a moderate distance. With ViewLink CATx, you can position a computer up to 1,000 feet away from the KVM station using common twisted pair CATx cable. Use any length of data cable up to 1,000 feet, and the ViewLink will calculate the cable length automatically, set the gain and equalization levels, and adjust the video to provide a crystal clear image. These automatic configuration features make installation easy and remove the need for manual adjustments.

Remote access to computers is useful for a number of reasons. The unit can be used to locate computers and users away from hazardous industrial environments, reduce vulnerability to the feet of hardware and sensitive data, reduce noise and heat, and increase desk and floor space.

ViewLink extender incorporates a range of options in the following models:

  • PS/2 single
  • USB single
  • PS/2 and USB to PS/2 single
  • PS/2 and USB to USB single
  • Video only

SPECIFICATIONS

Dimensions
(W x D x H)
Transmitter: 1.3" x 1.75" x 0.63" (33 x 44.5 x 16 mm) Receiver: 2.68" x 2.65" x 1" (68 x 67 x 25.4 mm)
Weight Transmitter: 0.15 lb (0.07 kg)Receiver: 0.15 lb (0.07 kg)
Power Transmitter: Powered by computer USB or PS/2Receiver: 100-240 VAC 50-60Hz, External adapter, +5V DC, 1A Transmitter: 5WReceiver: 5W
Distance VGA 1920 x 1200: 300' (90m)VGA 1024 x 768 at 1,000' (300m)
Connectors Transmitter:VGA video: HD15MPS2 keyboard/mouse: Two mini-din male cable for direct plug-inUSB keyboard/mouse: USB A male cable for direct plug-inReceiver:VGA video: HD15FPS2 keyboard/mouse: One PS/2 mini-din6F with included Y cableUSB keyboard/mouse: Two USB Type A receptaclePower: Barrel jack
Controls Status LED: YellowLink LED: Green
Environment Operating temperature: 32°F–113°F (0°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing

PART NUMBERS

Kits (transmitter, receiver, and power supply)
VLK-TMVPRAVP Single Access PS/2, VGA KVM Extender Kit, Auto EQ
VLK-TMVURAVU Single Access USB, VGA KVM Extender Kit, Auto EQ
VLK-TMVBRAVP Single Access PS/2 & USB to PS/2, VGA KVM Extender Kit, Auto EQ
VLK-TMVBRAVU Single Access PS/2 & USB to USB, VGA KVM Extender Kit, Auto EQ
VLK-TMVDRAVU Single Access DB25 to USB, VGA KVM Extender Kit, Auto EQ
VLK-TMVURAVD Single Access USB to DB25, VGA KVM Extender Kit, Auto EQ
VLK-TMVDRAVP Single Access DB25 to PS/2, VGA KVM Extender Kit, Auto EQ
VLK-TMVPRAVD Single Access PS/2 to DB25, VGA KVM Extender Kit, Auto EQ
Video Only & Touchscreen Kits:
VLK-TMV0RAV0-U Video only w/USB pigtail to draw power from CPU's USB port
VLK-TMV0RAV0-PVideo only w/PS/2 pigtail to draw power from PS2 Keyboard port
VLK-TMV0RAV0/B1.3Video only w/barrel jack and transformer for power
VLK-TMVURAVU-TSingle Access USB, VGA KVM Extender Kit, Auto EQ, Touchscreen
Options
-W Automatic skew adjustment option

DOCUMENTS

DOCUMENT LINK
Datasheet • ViewLink CATx PDF
Quick Start • ViewLink CATxPDF
Manual • ViewLink CATx • Installation and Operation PDF
