Vista DVI

1×8 KVM Switch • DVI • VGA • USB2.0 • Audio

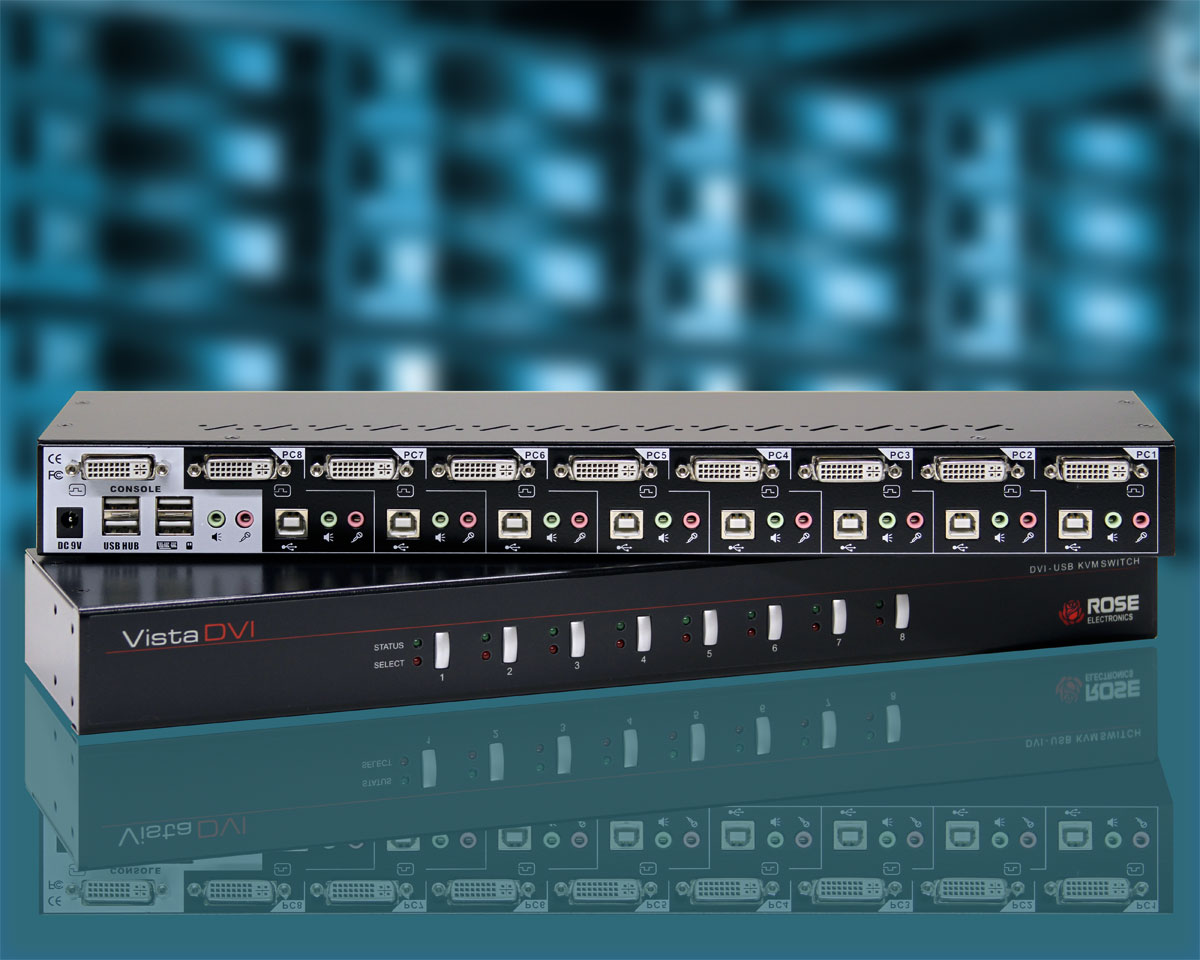

Product Picture

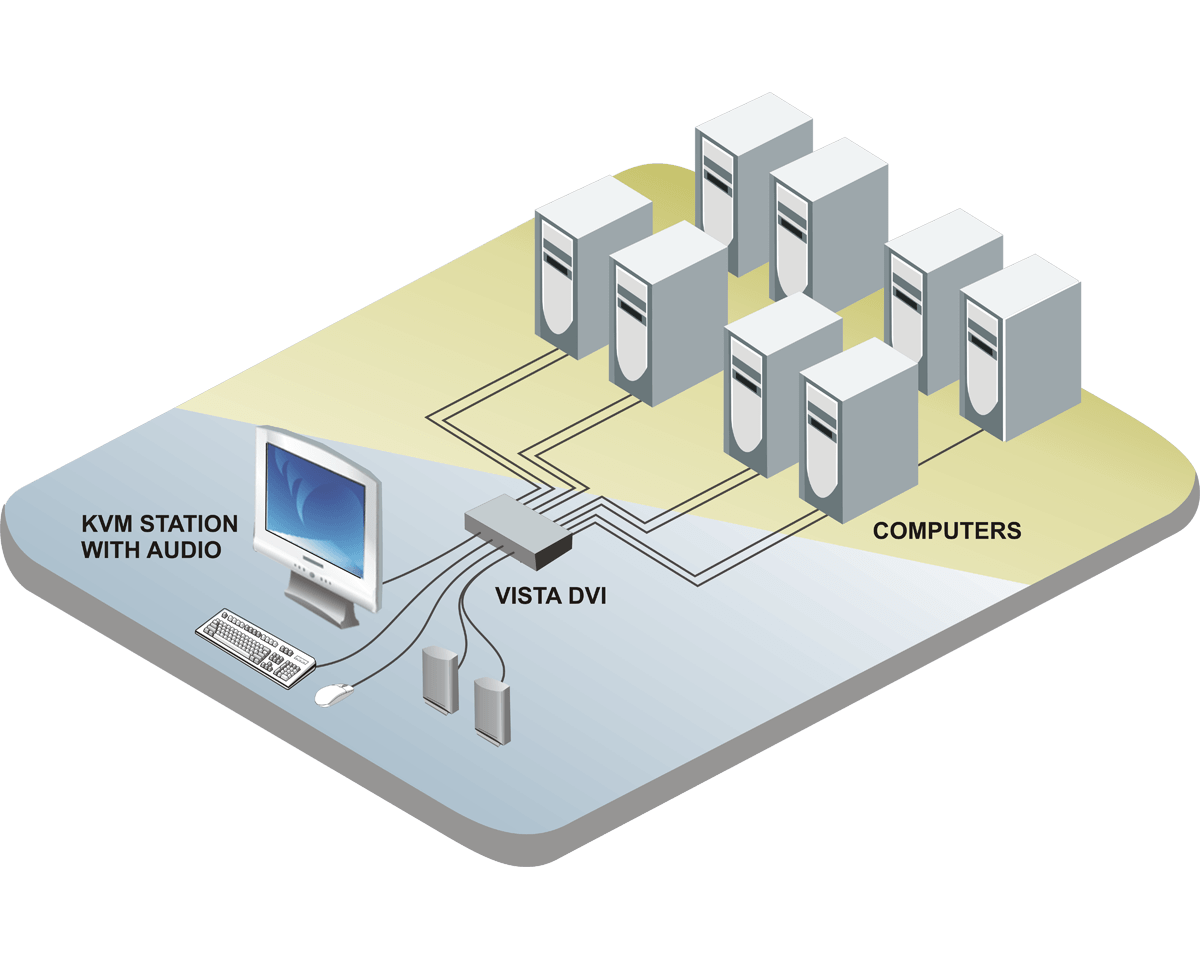

Diagram
  • Supports digital and analog video
  • DVI resolution up to 1920×1200
  • Analog VGA resolution up to 204×1536
  • USB 2.0 high speed device support and USB keyboard and mouse emulation
  • Switch from front panel or simple hot-keys
  • Multi-platform support for PC’s, Apple, and Linux
  • USB keyboard and mouse emulation
  • Transparent USB 2-port hub for connecting shared USB devices at 480Mb/sec
  • Analog stereo speakers and mono microphone support
  • Independent or joint switching of PCs, USB hub, audio, and microphone
  • Scanning feature to incrementally switch each CPU connection at a fixed or programmable rate

OVERVIEW

Vista DVI USB KVM switch from Rose Electronics is the ideal product for switching your DVI video and audio from up to 8 computers to one centralized workstation. Digital video is supported at resolutions up to 1920 x 1200, and analog video at resolutions up to 2048 x 1536. The video and audio from each computer can be switched to the local KVM station jointly or independently with the push of a button on the front panel, or by using simple keyboard hotkey commands.

Two USB 2.0 ports are provided for connecting shared high speed USB peripherals. This allows you to share the USB devices between the eight connected computers.

Each connected computer's speaker and microphone outputs are connected to the DVI KVM Switch, eliminating the need for a set for each computer. Vista DVI is multi-platform and supports both PCs and Apple computers.

SPECIFICATIONS

Dimensions (W x D x H) 15.98" x 3.94" x 1.75" (406 x 100 x 44.5 mm) (1U)
Weight 2.65 lb (1.2 kg)
Power 100-240 VAC 50-60Hz External adapter, +9V, 2.2A 20W
Resolution Single-link DVI: 1920 x 1200VGA: 2048 x 1536
Distance CPU/KVM: 25 feet (7.6m)
Connectors Video: DVI femaleUSB 2.0 host: USB Type BKeyboard: USB Type AMouse: USB Type AUSB 2.0 device: Two USB Type A Speaker: 3.5mm Female audio jackMicrophone: 3.5mm Female audio jackPower: Barrel jack
Controls Computer selection: Front panel or hot-keyCPU select: Push-button per portCPU select: Red LED per portCPU status: Green LED per port
Environment Operating temperature: 32°F–122°F (0°C–50°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 5%–80%, non-condensing

PART NUMBERS

Product Part Number Description
KVM-8TDVI/A1 1x8 KVM Switch, DVI-I, Single-link, USB 2.0, Stereo
Cable Part Number Description
CAB-DVIIMMxxx DVI Video Cable

DOCUMENTS

DOCUMENT LINK
Datasheet • Vista DVI PDF
Manual • Vista DVI • Installation and Operation PDF
