CrystalView DVI Quad CATx

Multi-head CATx/Fiber Extender • DVI + options

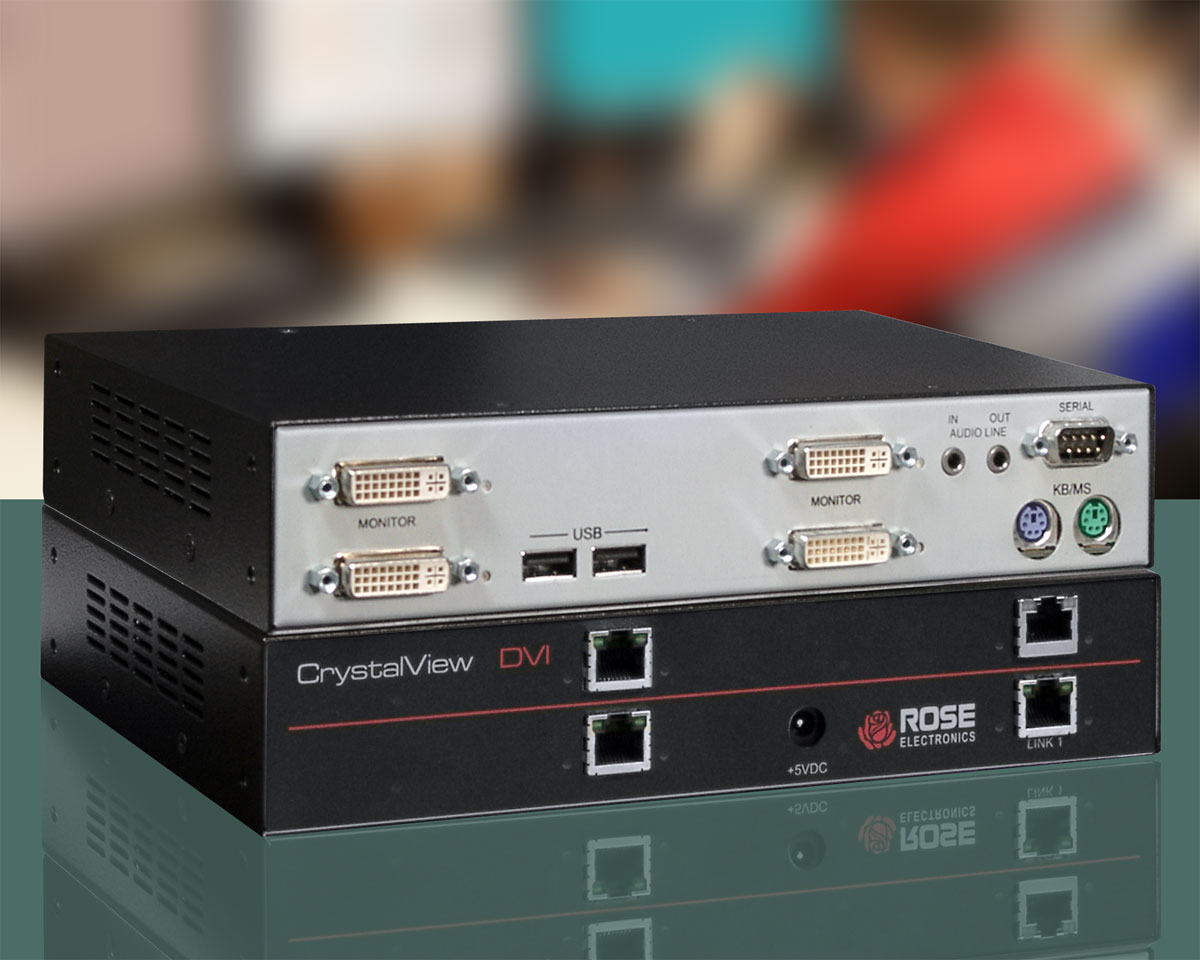

Product Picture CATx model

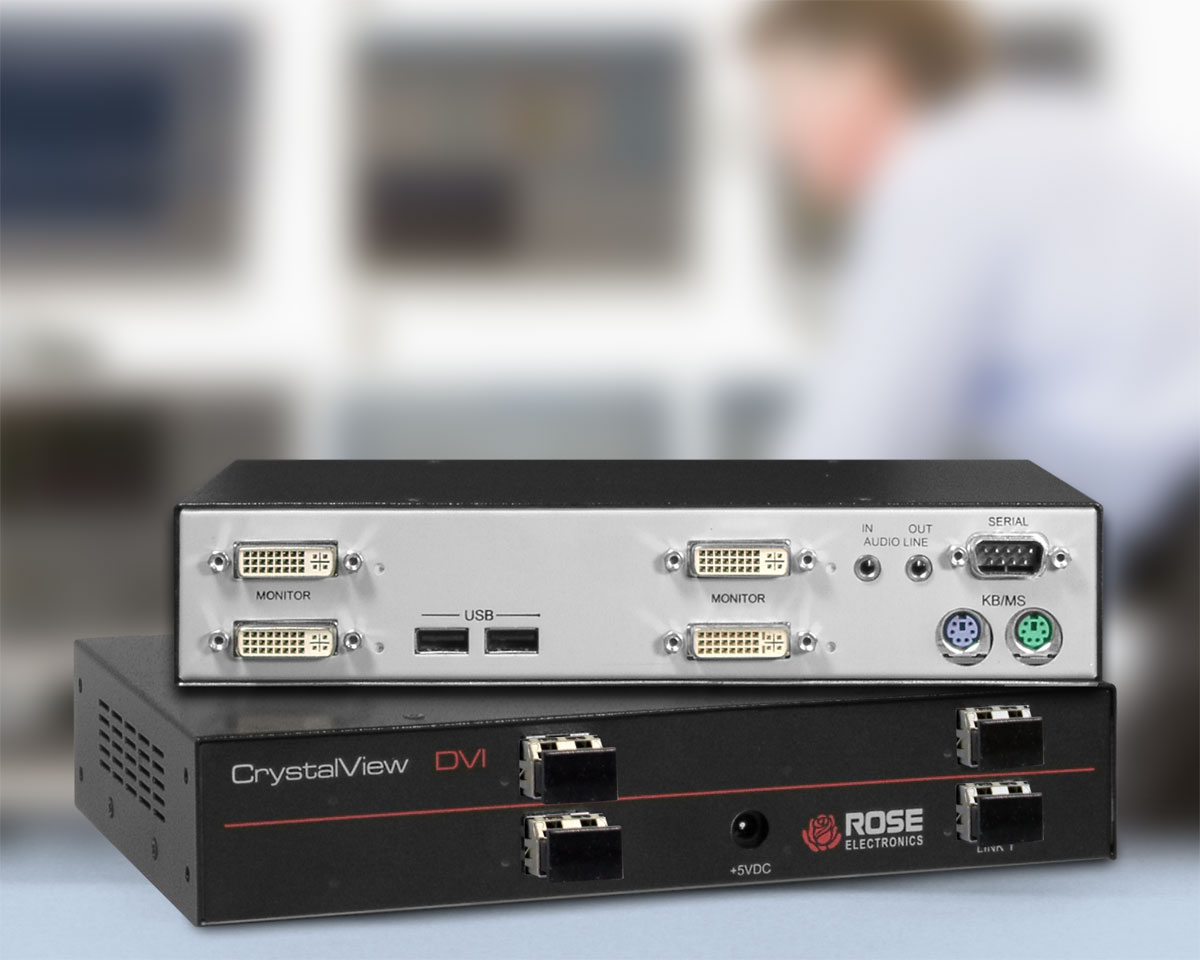

Product Picture Fiber model

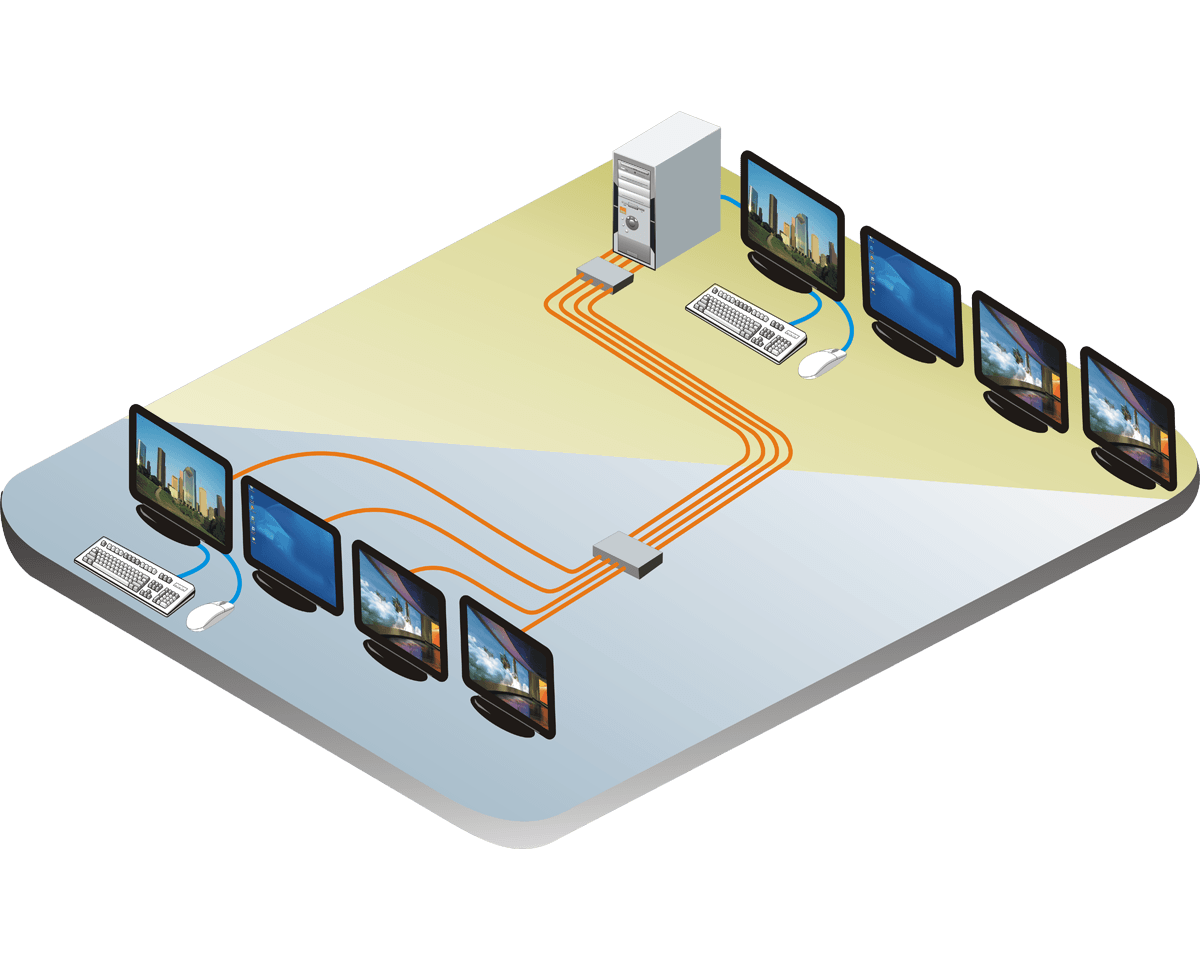

Diagram
  • Compressed DVI video at 1920 x 1200 over CATX
  • Up to 460' (140m) over CATx
  • Local ports for remote or local access
  • Available with USB or PS/2 keyboard and mouse or as video only
  • Optional serial and audio (stereo speakers and microphone)
  • Optional transparent USB 2.0

OVERVIEW

CrystalView DVI Quad CATx is a compact extender that enables the remote location of a multi-monitor user station. The interconnect CATx cables can be deployed as point-to-point or through a patch panel. The CrystalView DVI Quad CATx is available in standard PS/2 and USB models or video-only. Other options are serial, audio, and USB 2.0. The DVI video ports can be ordered as single, dual, triple, or quad video.

The system consists of two units: a transmitter and a receiver. The transmitter connects to your computer's keyboard, mouse, one or more DVI video, and optional USB 2.0, serial, and audio ports. The receiver connects to a keyboard, mouse, DVI video monitors, and optional USB 2.0, serial, and audio devices. Each DVI video port and the optional USB 2.0 port require a dedicated interconnect (CATx or Fiber) cable. The unit has both transmitter (local) and receiver (remote) KVM access. The transmitter's KVM access allows an additional KVM monitor for each video channel to be connected for local viewing, next to the host PC or video source.

CrystalView Quad DVI Quad CATx is available in 3 flexible chassis configurations:

  • PS/2 with single, dual, triple or quad DVI video
  • USB with single, dual, triple or quad DVI video
  • Video-only with single, dual, triple or quad DVI video
  • Options available include analog audio, serial and high-speed USB2.0

CrystalView DVI Quad CATx is ideal for indoor applications, computer room, industrial automation, AV, service desk, or control room environments.

For outdoor applications, building-to-building, and heavy industrial or electrical environments, please select the CrystalView DVI Quad (Fiber) product.

All models include dual user access.

For high speed USB device support, an optional USB2.0 link is available on certain models (check with Rose Electronics)

This product is packaged in a sturdy metal chassis, with rack-mount and shelf-mount options available.

SPECIFICATIONS

Dimensions
(W x D x H)
Mini Chassis: 9" x 5.7" x 1.73" (228 x 144 x 44 mm) (1U)Wide chassis (4DVI+USB 2.0): 17" x 5.6" x 1.75" (432 x 142 x 44.5 mm) (1U)
Weight Mini Chassis: 4.4 lb (2 kg)Wide chassis (4DVI+USB 2.0): 6.6 lb (3 kg)
Power 90-240 VAC 50-60Hz External adapter, +5V, 4A Mini Chassis: 15WWide chassis (4DVI+USB 2.0): 20W
Resolution DVI video: 1920 x 1200
Distance CATx: 460' (140m)
Connectors Transmitter:DVI video + PS/2 keyboard/mouse: DVI female
Includes cable, DVI male to DVI male + two mini-din6 male
DVI local and multi-head video: DVI femaleUSB keyboard/mouse: USB Type BPS/2 keyboard/mouse: Two PS/2 mini-din6FDual access PS/2 keyboard/mouse: Mini-din6F
Includes cable, mini-din6M to two mini-din6F
USB 2.0 host: USB Type BCATx link: RJ45 jack, one per video port + one for USB 2.0Audio: Two 3.5mm stereo jacks or mini-din8FSerial: DB9F or mini-din8FSome multi-head units use mini-din8 and include cable, mini-din8M to two 3.5mm audio plugs + DB9FPower: Barrel jackReceiver:DVI video: DVI female, one per portUSB keyboard/mouse: Two USB type A jackPS/2 keyboard/mouse: Two PS/2 mini-din6FUSB 2.0 device: Four USB Type ACATx link: RJ45 jack, one per video port + one for USB 2.0Audio: Two 3.5mm stereo jacksSerial: DB9MPower: Barrel jack
Controls Unit power: Red LED per portData error: Green LED per portLink status: Green LED per portVideo OK: Green LED per port
Environment Operating temperature: 41°F–113°F (5°C–45°C)Storage temperature: -13°F–140°F (-25°C–60°C)Relative humidity: 0%–80%, non-condensing

PART NUMBERS

Kits (transmitter, receiver, and power supply)
1 channel video - CATx
CRK-2DTX0D1D/R1x DVI Only
CRK-2DTXUD1D/R1x DVI + USB-HID
CRK-2DTXTD1D/R1x DVI + USB-HID + USB2
CRK-2DTXTD1DP/R 1x DVI + USB-HID + PS2 + USB2
CRK-2DTXPD1D/R1x DVI + PS2
CRK-2DTX0D1D/AUD/R1x DVI + Audio + Serial
CRK-2DTXUD1D/AUD/R1x DVI + USB-HID + Audio + Serial
CRK-2DTXTD1D/AUD/R1x DVI + USB-HID + USB2 + Audio + Serial
CRK-2DTXTD1DP/AUD/R1x DVI + USB-HID + PS2 + USB2 + Audio + Serial
CRK-2DTXPD1D/AUD/R1x DVI + PS2 + Audio + Serial
2 channel video - CATx
CRK-2DTX0D2D/R2x DVI Only
CRK-2DTXUD2D/R2x DVI + USB-HID
CRK-2DTXTD2D/R2x DVI + USB-HID + USB2
CRK-2DTXTD2DP/R2x DVI + USB-HID + PS2 + USB2
CRK-2DTXPD2D/R2x DVI + PS2
CRK-2DTX0D2D/AUD/R2x DVI + Audio + Serial
CRK-2DTXUD2D/AUD/R2x DVI + USB-HID + Audio + Serial
CRK-2DTXTD2D/AUD/R2x DVI + USB-HID + USB2 + Audio + Serial
CRK-2DTXTD2DP/AUD/R2x DVI + USB-HID + PS2 + USB2 + Audio + Serial
CRK-2DTXPD2D/AUD/R2x DVI + PS2 + Audio + Serial
3 channel video - CATx
CRK-2DTX0D3D/R3x DVI Only
CRK-2DTXUD3D/R3x DVI + USB-HID
CRK-2DTXTD3D/R3x DVI + USB-HID + USB2
CRK-2DTXTD3DP/R3x DVI + USB-HID + PS2 + USB2
CRK-2DTXPD3D/R3x DVI + PS2
CRK-2DTX0D3D/AUD/R3x DVI + Audio + Serial
CRK-2DTXUD3D/AUD/R3x DVI + USB-HID + Audio + Serial
CRK-2DTXTD3D/AUD/R3x DVI + USB-HID + USB2 + Audio + Serial
CRK-2DTXTD3DP/AUD/R3x DVI + USB-HID + PS2 + USB2 + Audio + Serial
CRK-2DTXPD3D/AUD//R3x DVI + PS2 + Audio + Serial
4 channel video - CATx
CRK-2DTX0D4D/R4x DVI Only
CRK-2DTXUD4D/R4x DVI + USB-HID
CRK-2DTXTD4D/R 4x DVI + USB-HID + USB2
CRK-2DTXTD4DP/R 4x DVI + USB-HID + PS2 + USB2
CRK-2DTXPD4D/R4x DVI + PS2
CRK-2DTX0D4D/AUD/R4x DVI + Audio + Serial
CRK-2DTXUD4D/AUD/R4x DVI + USB-HID + Audio + Serial
CRK-2DTXTD4D/AUD/R 4x DVI + USB-HID + USB2 + Audio + Serial
CRK-2DTXTD4DP/AUD/R 4x DVI + USB-HID + PS2 + USB2 + Audio + Serial
CRK-2DTXPD4D/AUD/R4x DVI + PS2 + Audio + Serial
Cables
CAB-DDPMDD66M006 DVI-D w/PS2 to DVI-D & 2 MD6M, 6'
CAB-MD8D9A006 CPU Audio and Serial to mini-dn8, 6'
CAB-MD6M2MD6F Keyboard/Mouse PS/2 “Y" cable
CAB-DVIDMMnnn DVI-D mm cable
CAB-USBABnnn USB type A/B cable
CAB-SPMMnnn Audio 3.5mm cable
CAB-D9MFnnn RS232 DB9MF serial cable
nnn=length in feet
Rackmount brackets
RM-UM19 19 inch Rackmount Bracket for “Mini" chassis units
RM-UB19 19 inch Rackmount Bracket for “B" chassis units
RM-UD-1U Under desk Rackmount plate for "Mini" chassis units
RM-BR3DV4/19 19 inch, 1U, rackmount shelf

DOCUMENTS

DOCUMENT LINK
Datasheet • CrystalView DVI Quad CATx PDF
Manual • CrystalView DVI Quad CATx • Installation and Operation PDF
